ComAp InteliNano NT Plus

InteliNano-NT Plus, SW version 2.0.1.x, ©ComAp – July 2015
22
Current measurement 4.7
WARNING!
Do not open secondary circuit of current transformers when primary circuit is closed!!! Open the
primary circuit first!
To ensure proper function:
1) Use cables of 2,5mm
2
2) Use transformers to 5A

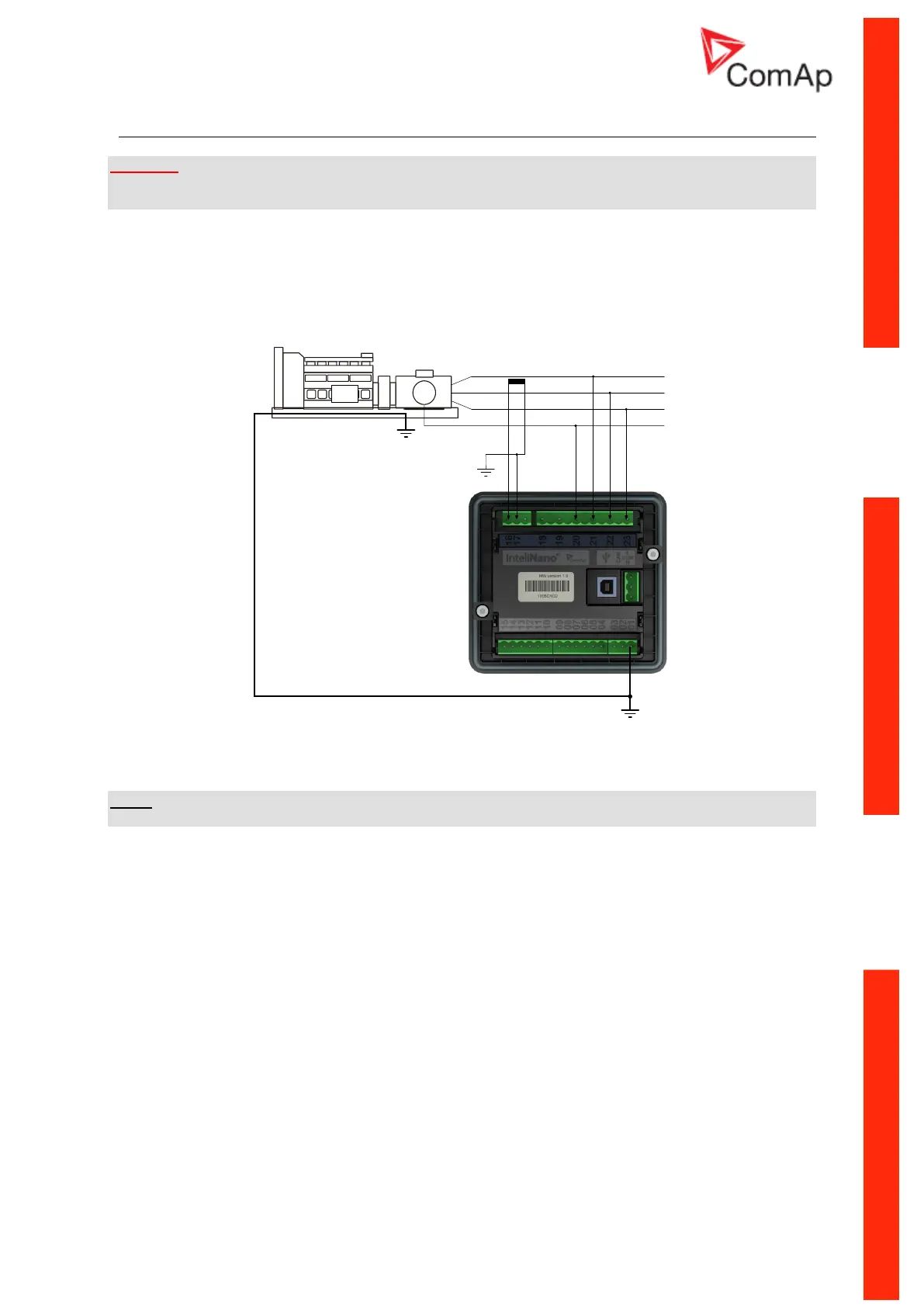

3) Connect CT according to following drawings:
G
ECU
DIESEL / GASOLINE ENGINE GENERATOR
L1
L2
L3
N
k l
Figure 4.17
RECOMMENDED CT CONNECTION
NOTE:
There is no need to connect “I” terminal of CT to the ground.
