3 Application Overview
AMF – Automatic Mains Failure start 3.1
The InteliNano
NT
Plus can be used as an AMF-controller for single generating sets operating in
stand-by mode. The InteliNano
NT
supports electronic engines.
MCB GCB
3x
3x
MCB
K1
GCB
K2
GCB
MCB
K2 K1
GCB CLOSE/OPEN
MCB CLOSE/OPEN
MCB
GCB
MCB FEEDBACK
GCB FEEDBACK
G
3Ph MAINS VOLTAGE
1 or 2Ph GENERATOR VOLTAGE
3x
InteliNano
BO
BI
1Ph GENERATOR CURRENT

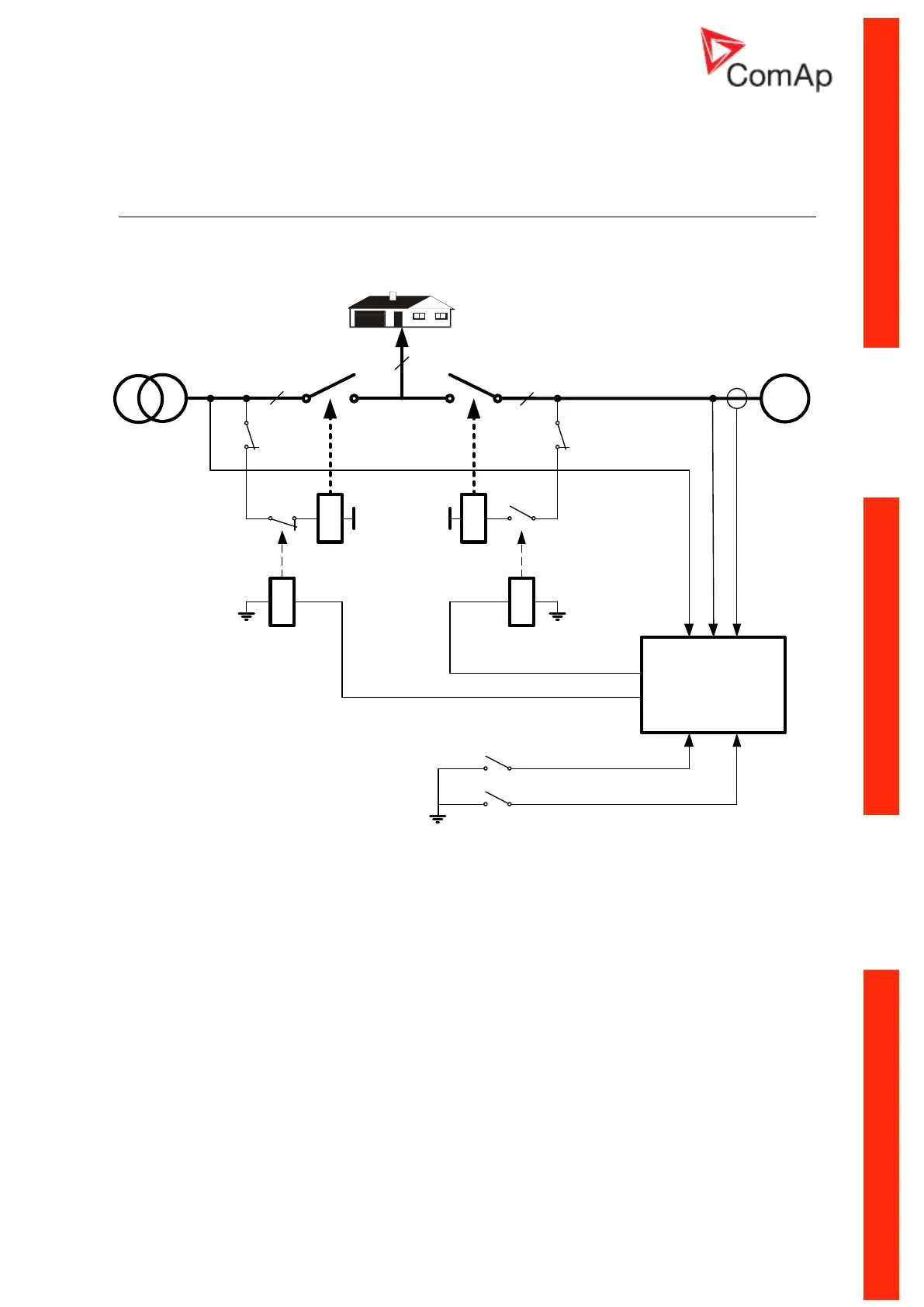

Figure 3.1
STAND-BY APPLICATION WITH TWO SEPARATE BREAKERS – GCB AND MCB WITH INTERLOCK
