6
2.3 Connections
The IPefono LC has the following different connections:
Manual de Configuraci
The IPefono LC has the following different connections:

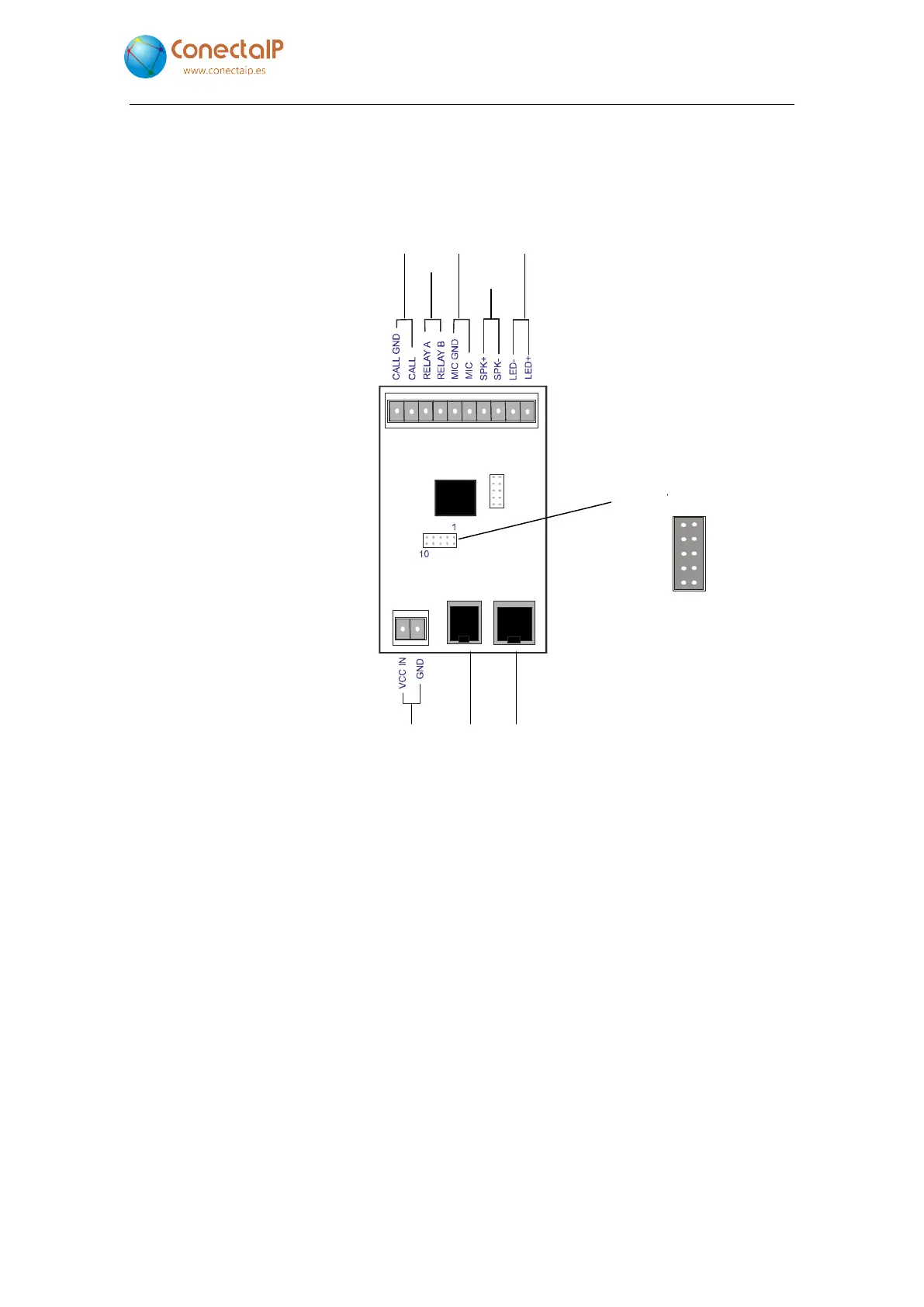

FIGURE 3. IPEFONO LC CONNECTIONS
Power
supply
Ethernet
(RJ45)
Call
button
Electret
microphone
Relay Speaker
(4Ω or 8 Ω)
LED call status light
Keyboard connector
GND
Row1
Row3
Camera
(RJ12)
2 – Instalación
Manual de Configuraci
ón. IPefono. V2.8
Keyboard connector
LED+
Row2
Row4
1
10
