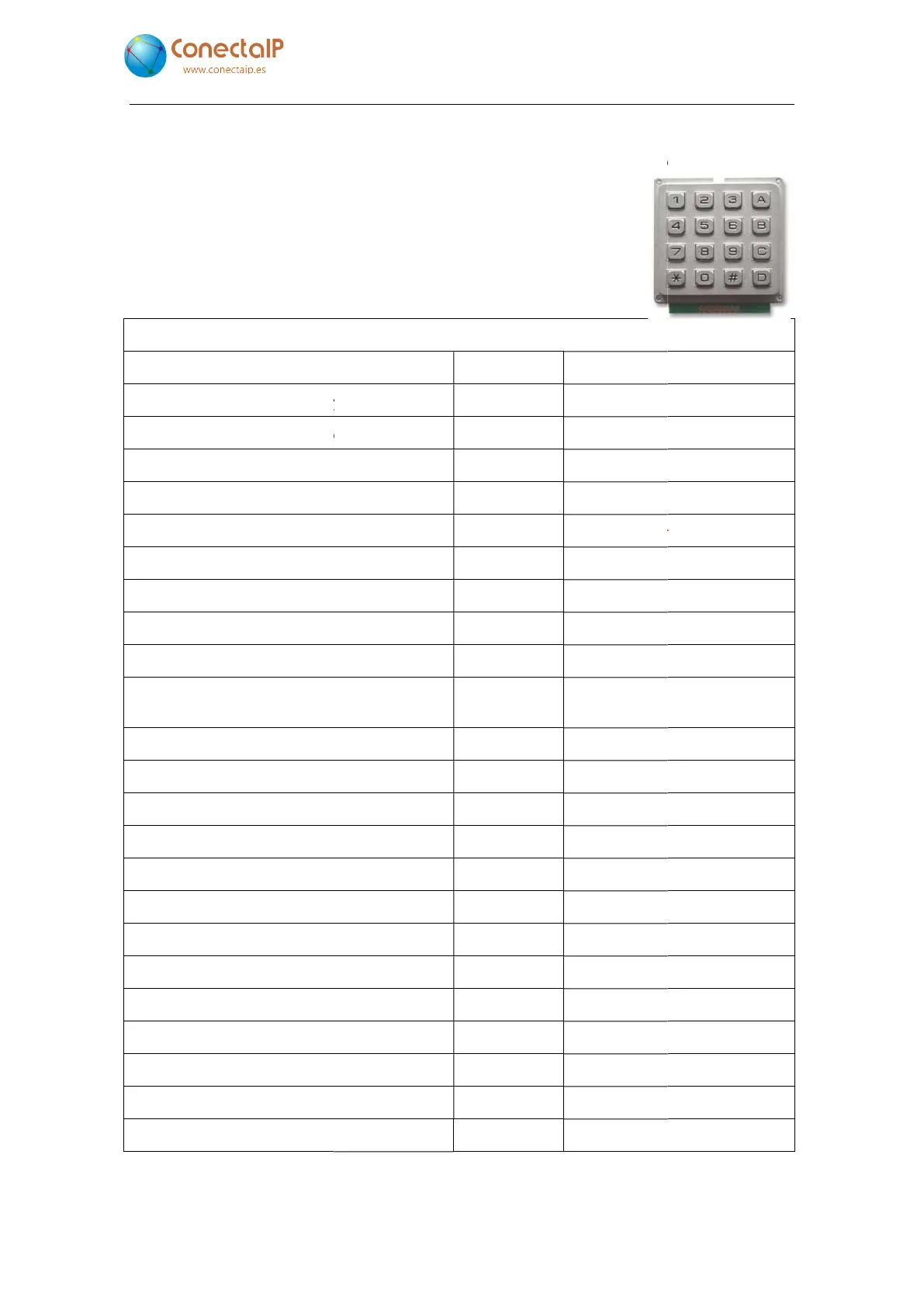

Keyboard settings
The IPefono’s electronics allow you to connect a matrix keyboard with four rows and four
columns, so it has an additional 16 keys.
There are several functions that can be executed from the keyboard,
each of which can be configured from the “
screen (see Figure 23).
Keyboard
Use keyboard to call
Use keyboard to activate relays
Beep the speaker when the key is pressed
Key to cancel the current call
Key to cancel the current call
Timeout to call to the current dial in seconds
SIP destination when the 'A' key is pressed
SIP destination when the 'B' key is pressed
SIP destination when the 'C' key is pressed
SIP destination when the 'D' key is pressed
Play a message when the '0' key is pressed
Play a message when the '1' key is pressed
Play a message when the '2' key is pressed
Play a message when the '3' key is pressed
Play a message when the '4' key is pressed
Play a message when the '5' key is pressed
Play a message when the '6' key is pressed
Play a message when the '7' key is pressed
Play a message when the '8'
key is pressed
Play a message when the '9' key is pressed
Play a message when the 'A' key is pressed
Play a message when the 'B' key is pressed
Play a message when the 'C' key is pressed
Play
a message when the 'D' key is pressed
F
IGURE
.
V2.8
Keyboard settings
The IPefono’s electronics allow you to connect a matrix keyboard with four rows and four
columns, so it has an additional 16 keys.
There are several functions that can be executed from the keyboard,
each of which can be configured from the “
Keyboard” configuration
○ Yes ● No
Use the keyboard to call
Use keyboard to activate relays
○ Yes ● No
Use to activate outputs
Beep the speaker when the key is pressed
○ Yes ● No
Beep when the key is pressed
none ↓
Key to cancel the call
none ↓
End of dialling key
Timeout to call to the current dial in seconds
0
Timeout before starting dialling
SIP destination when the 'A' key is pressed
__________
SIP address of the
SIP destination when the 'B' key is pressed
__________
SIP address of the ‘B’ key
SIP destination when the 'C' key is pressed
__________
SIP address of the ‘C’ key
SIP destination when the 'D' key is pressed
__________
SIP address of the ‘D’ key
Play a message when the '0' key is pressed
__________
Message when pressing the ‘0’
key
Play a message when the '1' key is pressed
__________
Play a message when the '2' key is pressed
__________
Play a message when the '3' key is pressed
__________
Play a message when the '4' key is pressed
__________
Play a message when the '5' key is pressed
__________
Play a message when the '6' key is pressed
__________
Play a message when the '7' key is pressed
__________
key is pressed
__________
Play a message when the '9' key is pressed
__________
Play a message when the 'A' key is pressed
__________
Play a message when the 'B' key is pressed
__________
Play a message when the 'C' key is pressed
__________
a message when the 'D' key is pressed
__________
IGURE
51. CONFIGURATION OF KEYBOARD SETTINGS
5 – Configuration
45
The IPefono’s electronics allow you to connect a matrix keyboard with four rows and four
Use the keyboard to call
Use to activate outputs
Beep when the key is pressed
Key to cancel the call
End of dialling key
Timeout before starting dialling
SIP address of the
‘A’ key
SIP address of the ‘B’ key
SIP address of the ‘C’ key
SIP address of the ‘D’ key
Message when pressing the ‘0’
