Chapter VI – Parts Lists
6-3996-0255 rev. b
C
1. Mirror, rear, (rep rate dependent)
2. Pockels cell, 202-0003
3. λ/4 plate, 108-0001
4. Dielectric polarizer, 199-0116
5a. 811U-06 head, 507-0700
(for 10, 20 & 30Hz)
rod, 6mm, 201-0056
flashlamp, 203-0019
6. Mirror, turning, 30°, 105-0086
7. Mirror, turning, 45°, 105-0002
8. Div. lens, -104mm, 102-0005
9. Con. lens, +155mm, 101-0001
10. λ/2 plate, 108-0004
11a. Pinhole, 9.0mm, 314-0176

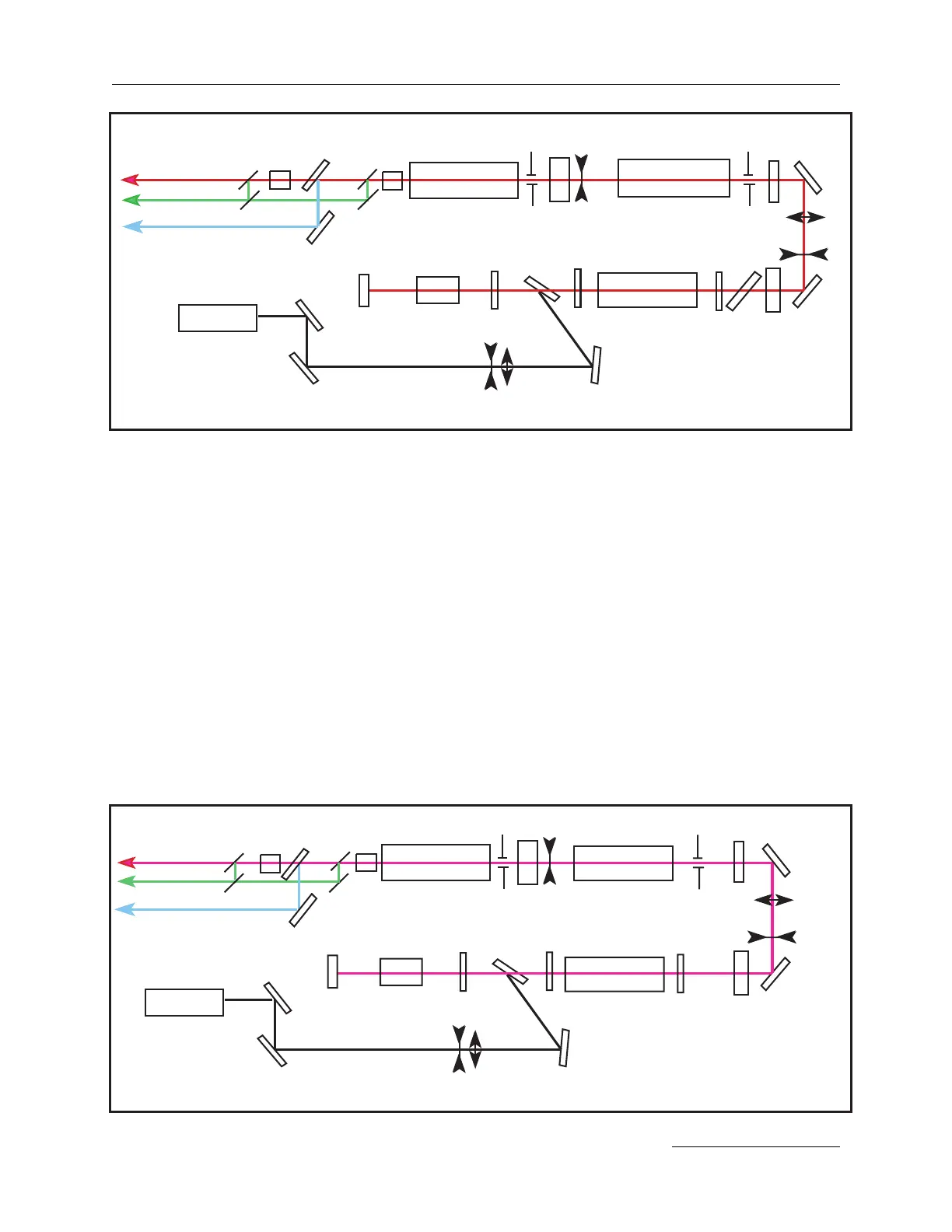

Legend for Precision 9010, 9020 & 9030
11b. Pinhole, 9.5mm, 314-0317
12. Dielectric polarizer, 199-0055
13. Output coupler, (rep rate dependent)
14. 811D-09 head, 507-0770
rod, 9mm, 201-0005
flashlamp, 203-0036
15. Div. lens, rep rate dependent
16. Rotator, quartz, 199-0067
17. 811U-09 head, 507-0750
rod, 9mm, 201-0005
flashlamp, 203-0036
18. Dichroics, 532nm, 105-0022
19. Dichroics. 355nm, 105-0023
or 266nm, 105-0025
18
18
532nm
THG or
FHG
seeder
1
2
3
4
3
3
5a
13
7c
7d
8
9
10
11a
7f
7a
7b
seeder
telescope
6
16 15
17 14
19
7e
19
Precision
9010
residual 532
& 1064nm
1064nm
355 or 266nm
11b
SHG
seeder
1
2
3
4
3
3
5a
13
7c
7d
8
9
10
11a
11b
18
7a
7b
seeder
telescope
6
16 15
12
17
14
19
19
18
Precision
9020/9030
SHG
THG or
FHG
residual
1064nm
355 or 266nm
532nm
7f
7e
