Continuum Precision II Series - Page 206

C
6-4 996-0255 rev. b
Precision II Operation and Maintenance Manual

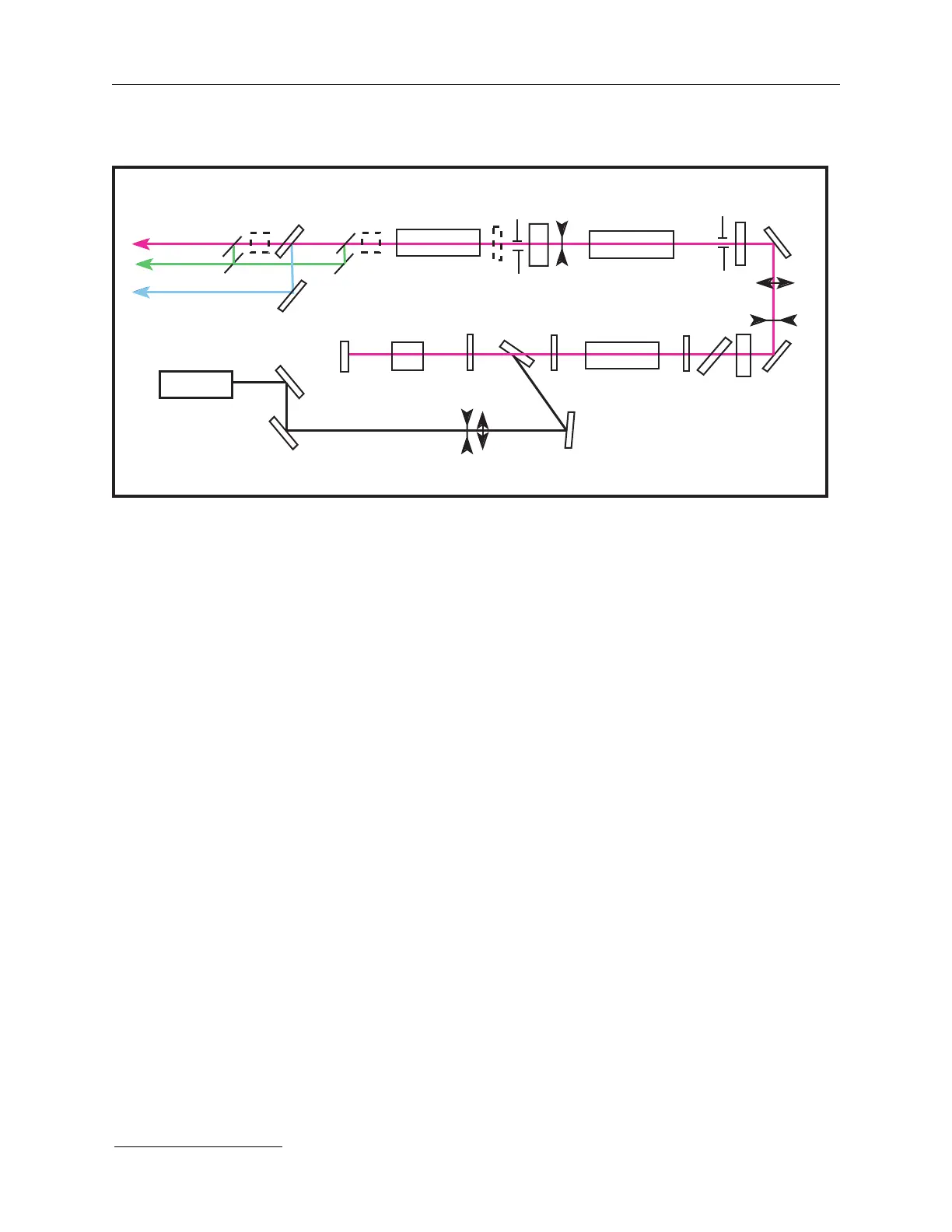

Legend for Precision 9050
12. Dielectric polarizer, 199-0055
13. Output coupler, (rep rate dependent)
14. 811D-09 head, 507-0770
rod, 9mm, 201-0005
flashlamp, 203-0032
(for 9050 only)
15. Div. lens, rep rate dependent
16. Rotator, quartz, 199-0067
17. 811U-09 head, 507-0750
rod, 9mm, 201-0005
flashlamp, 203-0032
18. Dichroics, 532nm, 105-0022
19. Dichroics. 355nm, 105-0023
or 266nm, 105-0025
20. Lens, cyl., (rep. rate dependent)
1. Mirror, rear, (rep rate dependent)
2. Pockels cell, 202-0003
3. λ/4 plate, 108-0001
4. Dielectric polarizer, 199-0116
5b. 811U-05 head, 507-1700
(for 50 Hz)
rod, 5mm, 201-0094
flashlamp, 203-0019
6. Output coupler, (rep rate dependent)
7. Mirror, turning, 45°, 105-0002
8. Div. lens, -91.4mm, 102-0002
9. Con. lens, +155mm, 101-0001
10. λ/2 plate, 108-0004
11a. Pinhole, 9.0mm, 314-0176
11b. Pinhole, 9.5mm, 314-0317
