Continuum Precision II Series - Page 53

Chapter II – System Operation
2-25
C
996-0255 rev. b
Precision II

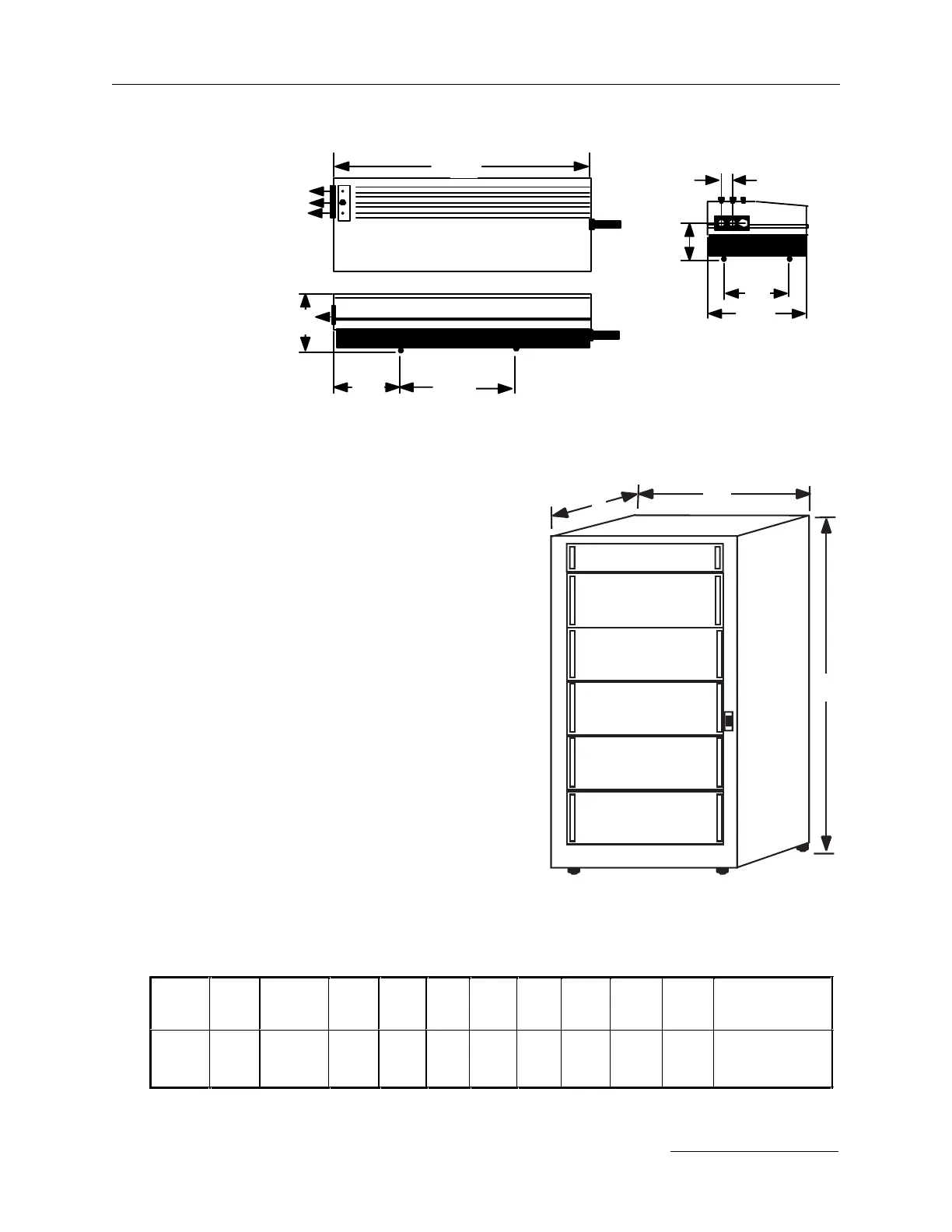

physical dimensions.
E
F
H
G
B
A
D
C
14 unit cabinet (8000)
18 unit cabinet (9000)
CG604C
CU601C
PU600C series
CB600C series
CB600C series
I
K
J
PU600C series
All dimensions in mm (inches)
Precision
II series
A B C D E F G H I J K
All
models
1189.2
(46.82)
298.4 ±12
(11.75 ±.5)
696
(27.41)
236.06
(9.29)
457.2
(18)
40
(1.57)
165
(6.5)
251
(9.88)
714.5
(28.13)
621
(24.46)
921.6 (36.31) 9000
720.9 (28.35) 8000
(only on 9000 series)
