Controls WIZARD 2 50-C92AXX User Manual

Manuale di Istruzione
Instruction Manual
23/08/2018 Rev.1 EN
104

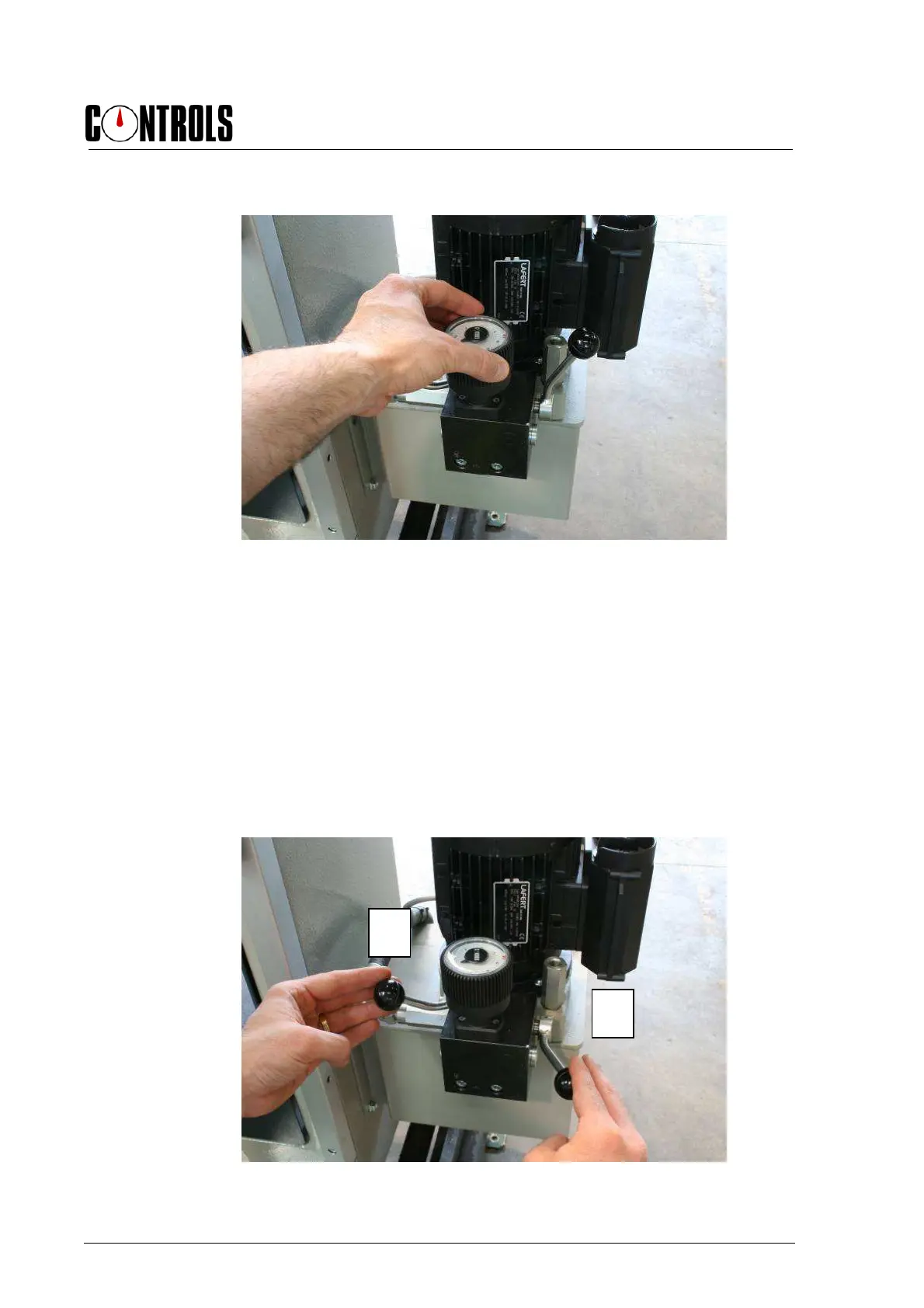

6. Adjust the load rate by acting on the flow control valve knob;
Fig. 5-23
7. Once the load cell is under load, a moderate speed should be used, making
adjustments with the flow control valve knob as described above. By taking the load
rate close to zero it is possible to stop the load increase and maintain an almost
constant pressure. The value of the applied load is updated in real time on the
display;
8. Take note of the bit reading for the given load step;
9. Proceed with the other load steps and take note of the relevant bit readings;
10. Once finished, to interrupt the load, turn OFF the pump motor switch and turn lever
B slowly back and lever A down to discharge the oil pressure;
Fig. 5-24
A
B
