CONVAID USER’S GUIDE

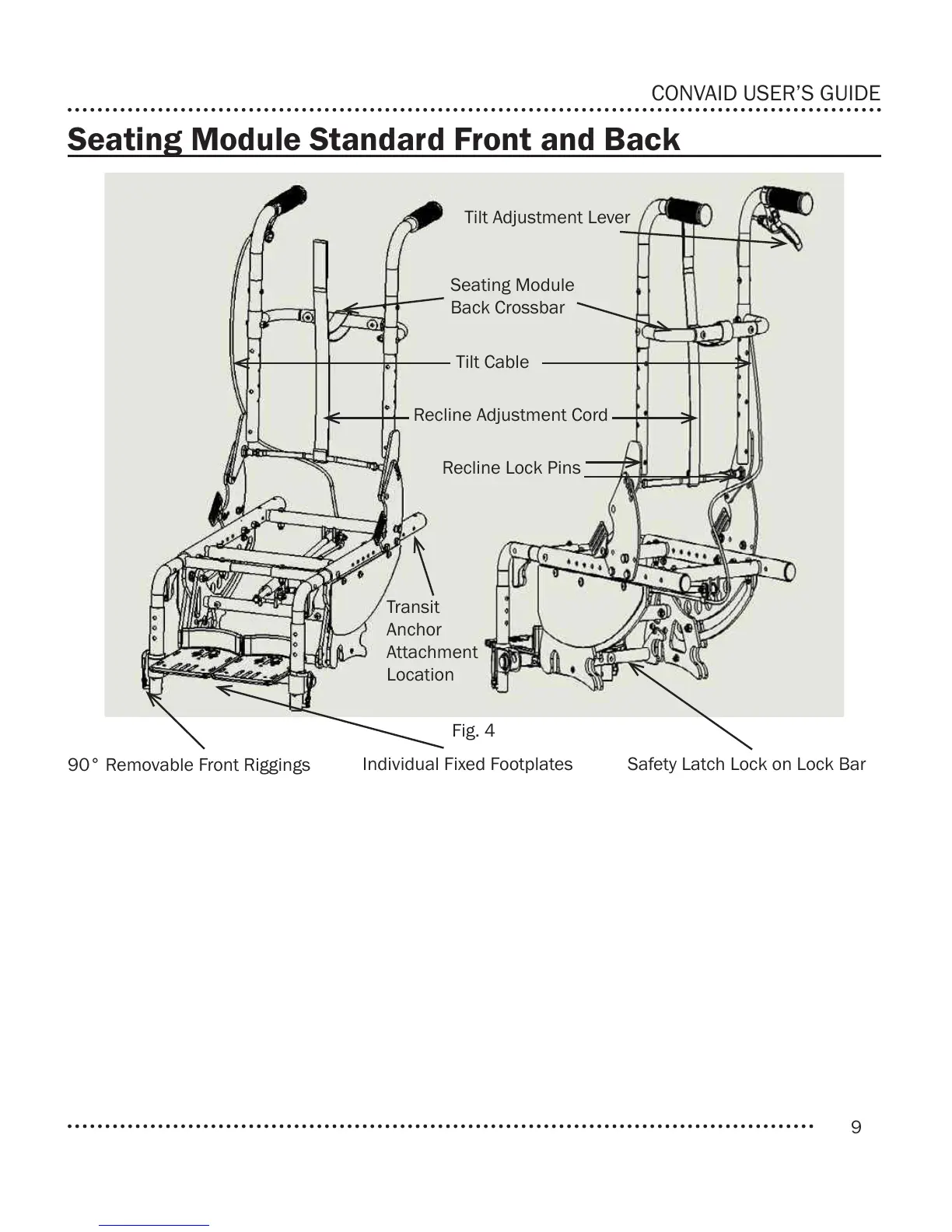

Seating Module Standard Front and Back
90° Removable Front Riggings
Individual Fixed Footplates
Safety Latch Lock on Lock Bar
Tilt Adjustment Lever
Seating Module
Back Crossbar
Tilt Cable
Recline Adjustment Cord
Recline Lock Pins
Transit
Anchor
Attachment
Location
Fig. 4
