CONVAID USER’S GUIDE
Seat Width 12/305 13/330 14/356 15/381 16/406
Seat Depth
Options
Total available seat depth range is 11 - 21/279 - 533; customer to select range
setting based on back cane position; each seat depth has 4/102 of growth.
Seat Back
Height Options
3 back cane height options to achieve 19/483, 22/559 and 25/635
with back pans, range is 13 - 25/330 - 635
Seat to Footplate
Elevating Legrest
9 - 14/
229 - 356
9 - 14/
229 - 356
11 - 16/
279 - 406
11 - 16/
279 - 406
13 -18/
330 - 457
Seat to Footplate
Elevating Legrest
with ipped
footplates
5.25 - 11.25/
133.35 -
285.75
5.25 - 11.25/
133.35 -
285.75
7.25 - 13.25/
184 - 336.5
7.25 -
13.25/
184 - 336.5
9.25 -
15.25/
235 - 387.35
Seat to Footplate
Standard 90°
Fixed
Range is 6 – 11.5/152 - 292
Seat to Floor 2 wheel options provide 15/381 and 17/432 STF
Seat to Back Angle 80 - 110° (std)
Back Recline 80 - 170° (option)
Tilt Range -5° (forward) to 40° (rear)
Overall Height 15”
STF/17”STF
34 - 40/
864 - 1016
(3/76
increments)
36-42/
914 - 1067
(3/76
increments)
Height varies based on selected back cane
height and selected seat to oor height
Overall Length 25.75/654
size 1
28/711 size 5 Varies based on selected tires
Overall Width 21/533 22/559 23/584 24/610 25/635
Folded Length 25.75/654
size 1
28/711 size 5 Varies based on selected tires
Folded Width 21/533 22/559 23/584 24/610 25/635
Folded Height Varies based on selected tires, 21.5 - 23.5/546 - 597
Headrest
Extension
22/559 25/635 28/711 Varies based on back
cane height selection
Shoulder Strap
Height
17/432 20/508 23/584 Varies based on back
cane height selection
Push Handle
Adjustments
±9/229 after selecting back cane size
Weight Capacity
(Regular)
Back Cane Position 1: 85 lbs/39 kg.
Back Cane Positions 2 - 4: 170 lbs/77 kg.
Model Size FL 12 FL 13
FL 14
FL 15 FL 16

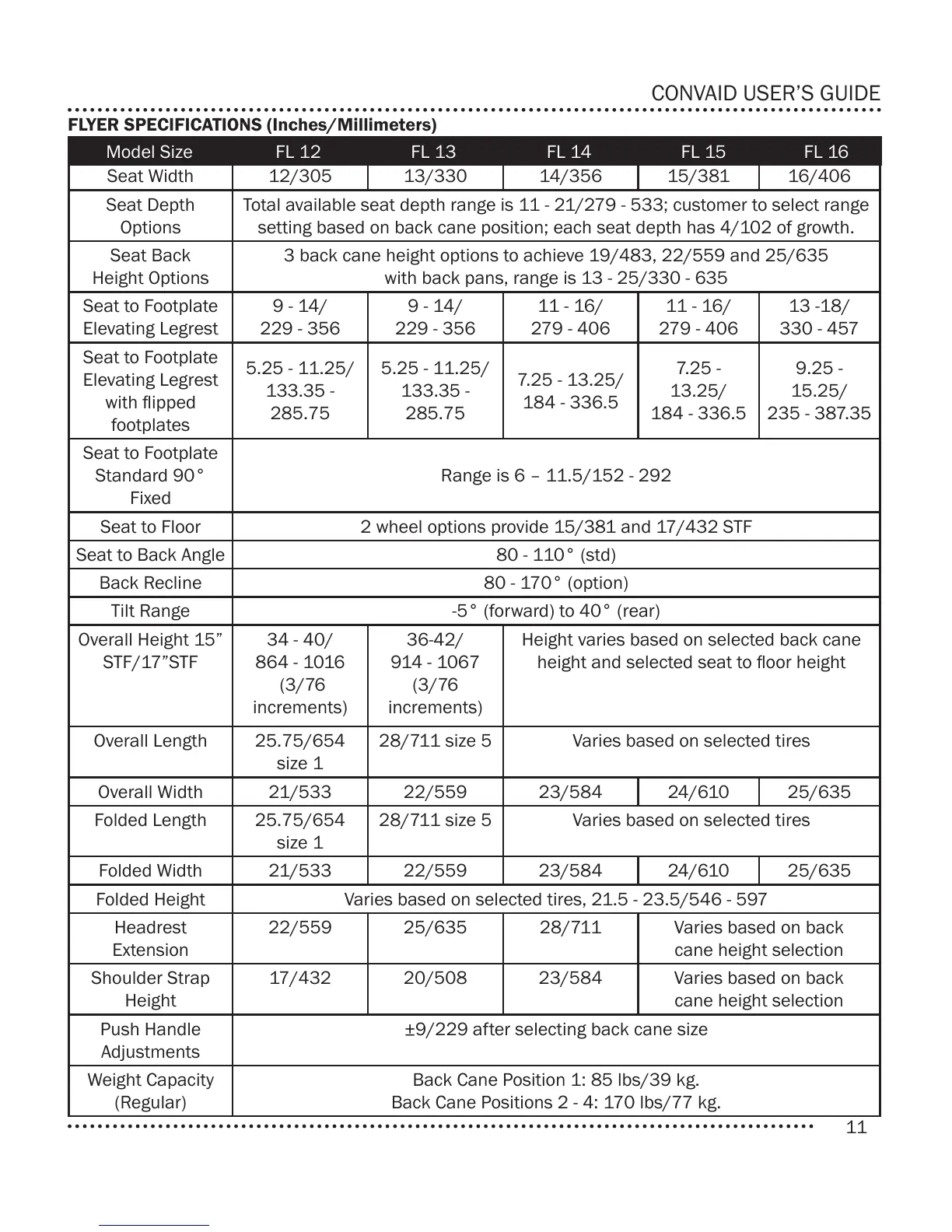

FLYER SPECIFICATIONS (Inches/Millimeters)
