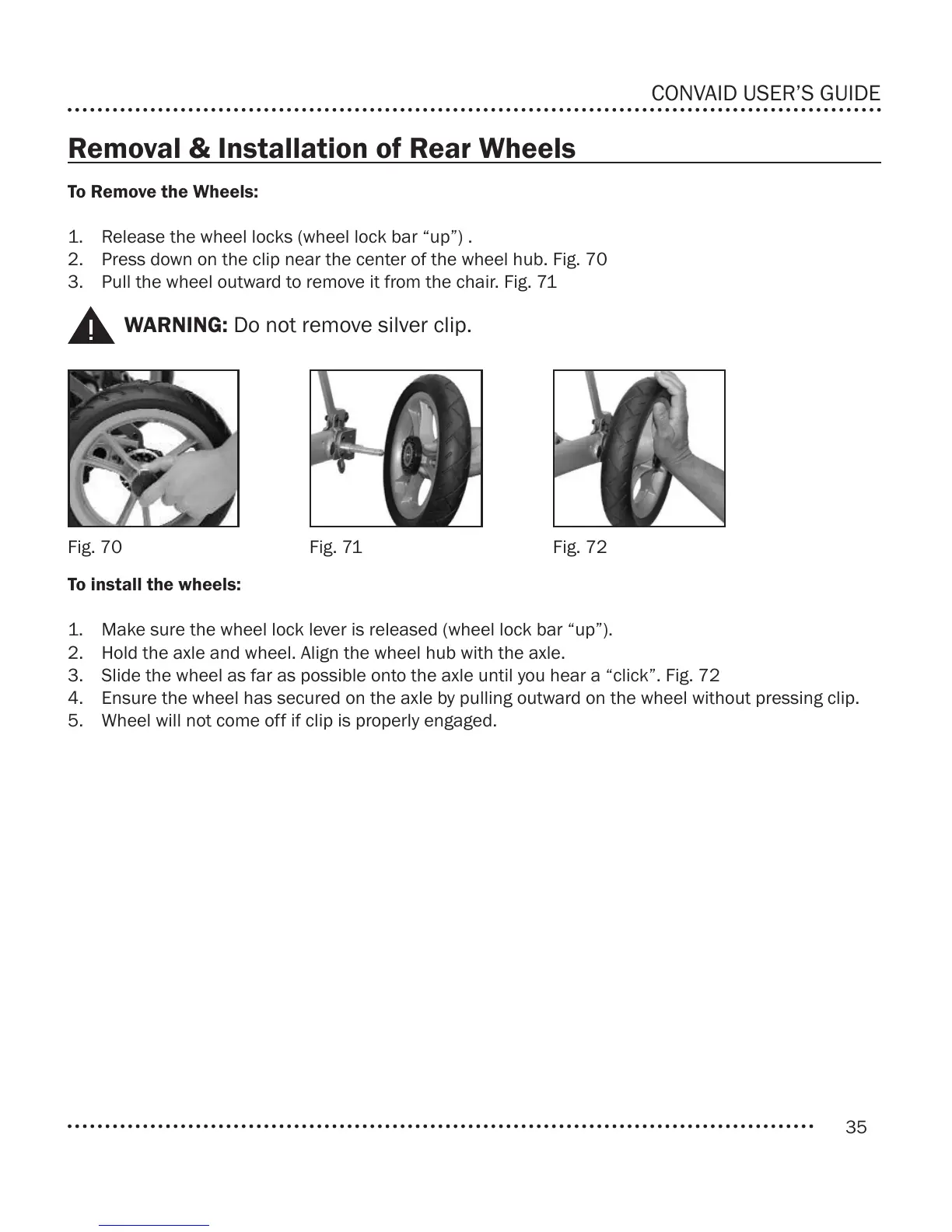

CONVAID USER’S GUIDE
Removal & Installation of Rear Wheels
To Remove the Wheels:
1. Release the wheel locks (wheel lock bar “up”) .
2. Press down on the clip near the center of the wheel hub. Fig. 70
3. Pull the wheel outward to remove it from the chair. Fig. 71
To install the wheels:
1. Make sure the wheel lock lever is released (wheel lock bar “up”).
2. Hold the axle and wheel. Align the wheel hub with the axle.
3. Slide the wheel as far as possible onto the axle until you hear a “click”. Fig. 72
4. Ensure the wheel has secured on the axle by pulling outward on the wheel without pressing clip.
5. Wheel will not come off if clip is properly engaged.
WARNING: Do not remove silver clip.
Fig. 70 Fig. 71 Fig. 72
