CONVAID USER’S GUIDE

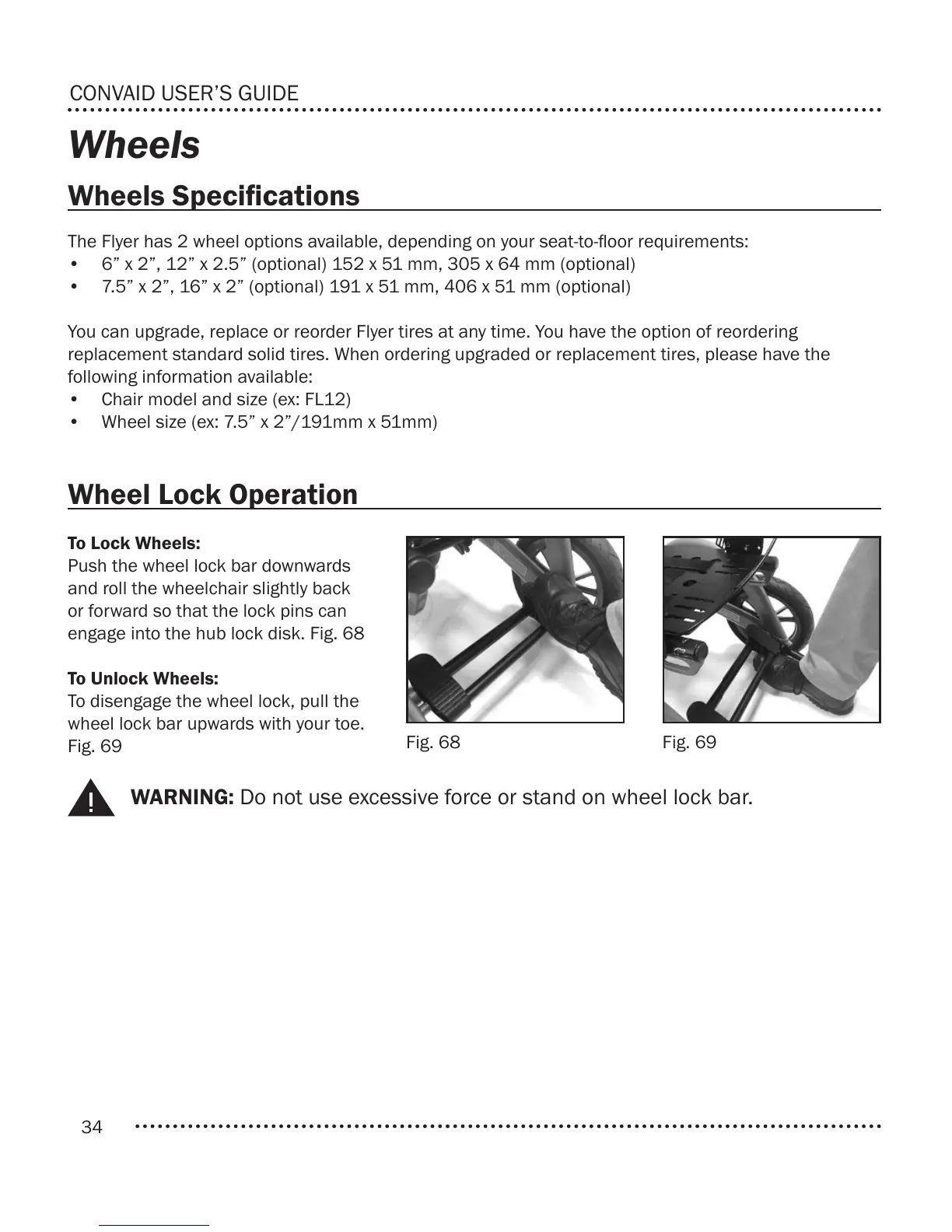

Wheel Lock Operation
WARNING: Do not use excessive force or stand on wheel lock bar.
To Lock Wheels:
Push the wheel lock bar downwards
and roll the wheelchair slightly back
or forward so that the lock pins can
engage into the hub lock disk. Fig. 68
To Unlock Wheels:
To disengage the wheel lock, pull the
wheel lock bar upwards with your toe.
Fig. 69
Fig. 68 Fig. 69
Wheels
Wheels Specications
The Flyer has 2 wheel options available, depending on your seat-to-oor requirements:
• 6” x 2”, 12” x 2.5” (optional) 152 x 51 mm, 305 x 64 mm (optional)
• 7.5” x 2”, 16” x 2” (optional) 191 x 51 mm, 406 x 51 mm (optional)
You can upgrade, replace or reorder Flyer tires at any time. You have the option of reordering
replacement standard solid tires. When ordering upgraded or replacement tires, please have the
following information available:
• Chair model and size (ex: FL12)
• Wheel size (ex: 7.5” x 2”/191mm x 51mm)
