27

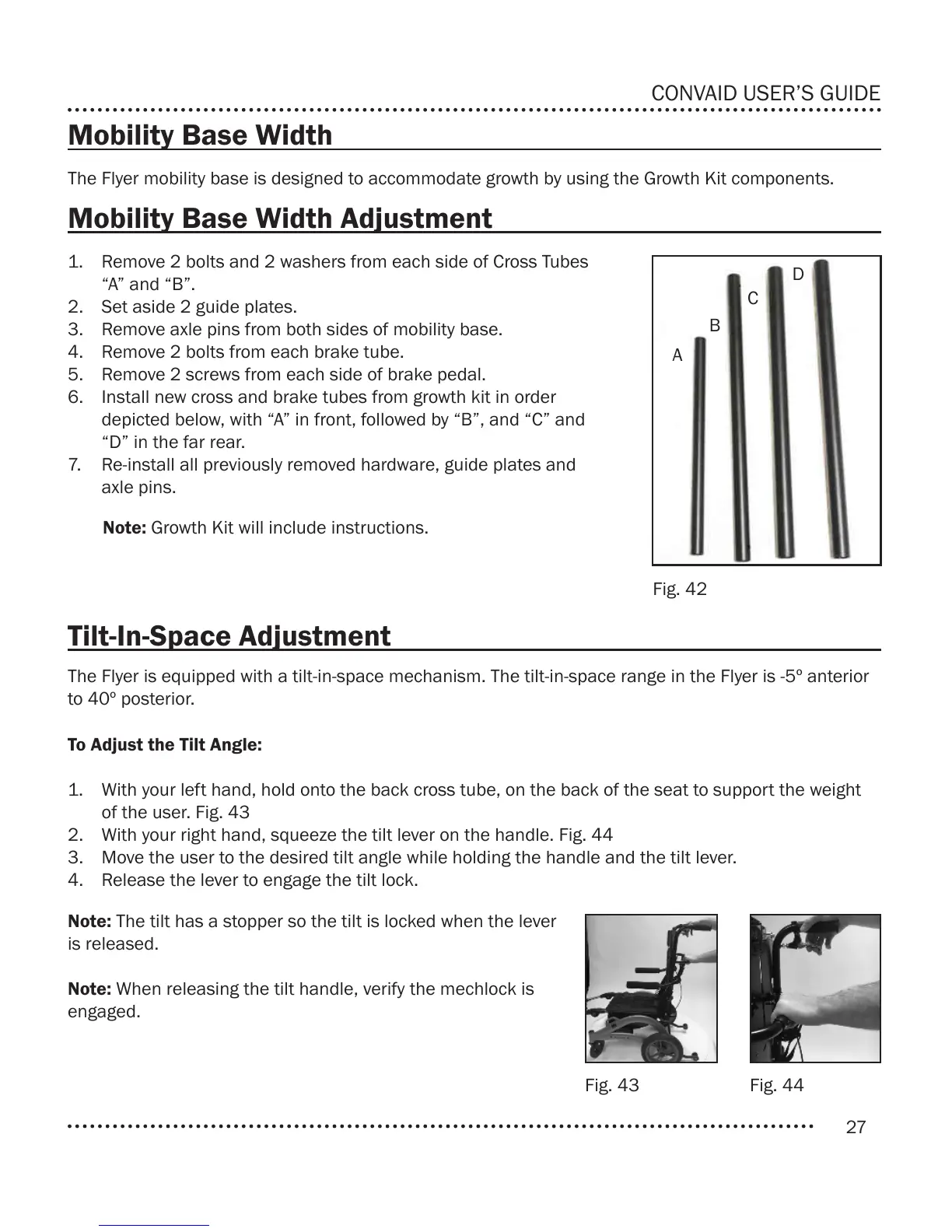

CONVAID USER’S GUIDE
Mobility Base Width
Tilt-In-Space Adjustment
Mobility Base Width Adjustment
The Flyer mobility base is designed to accommodate growth by using the Growth Kit components.
The Flyer is equipped with a tilt-in-space mechanism. The tilt-in-space range in the Flyer is -5º anterior
to 40º posterior.
To Adjust the Tilt Angle:
1. With your left hand, hold onto the back cross tube, on the back of the seat to support the weight
of the user. Fig. 43
2. With your right hand, squeeze the tilt lever on the handle. Fig. 44
3. Move the user to the desired tilt angle while holding the handle and the tilt lever.
4. Release the lever to engage the tilt lock.
Note: Growth Kit will include instructions.
Note: The tilt has a stopper so the tilt is locked when the lever
is released.
Note: When releasing the tilt handle, verify the mechlock is
engaged.
1. Remove 2 bolts and 2 washers from each side of Cross Tubes
“A” and “B”.
2. Set aside 2 guide plates.
3. Remove axle pins from both sides of mobility base.
4. Remove 2 bolts from each brake tube.
5. Remove 2 screws from each side of brake pedal.
6. Install new cross and brake tubes from growth kit in order
depicted below, with “A” in front, followed by “B”, and “C” and
“D” in the far rear.
7. Re-install all previously removed hardware, guide plates and
axle pins.
Fig. 42
Fig. 43 Fig. 44
A
B
C
D
