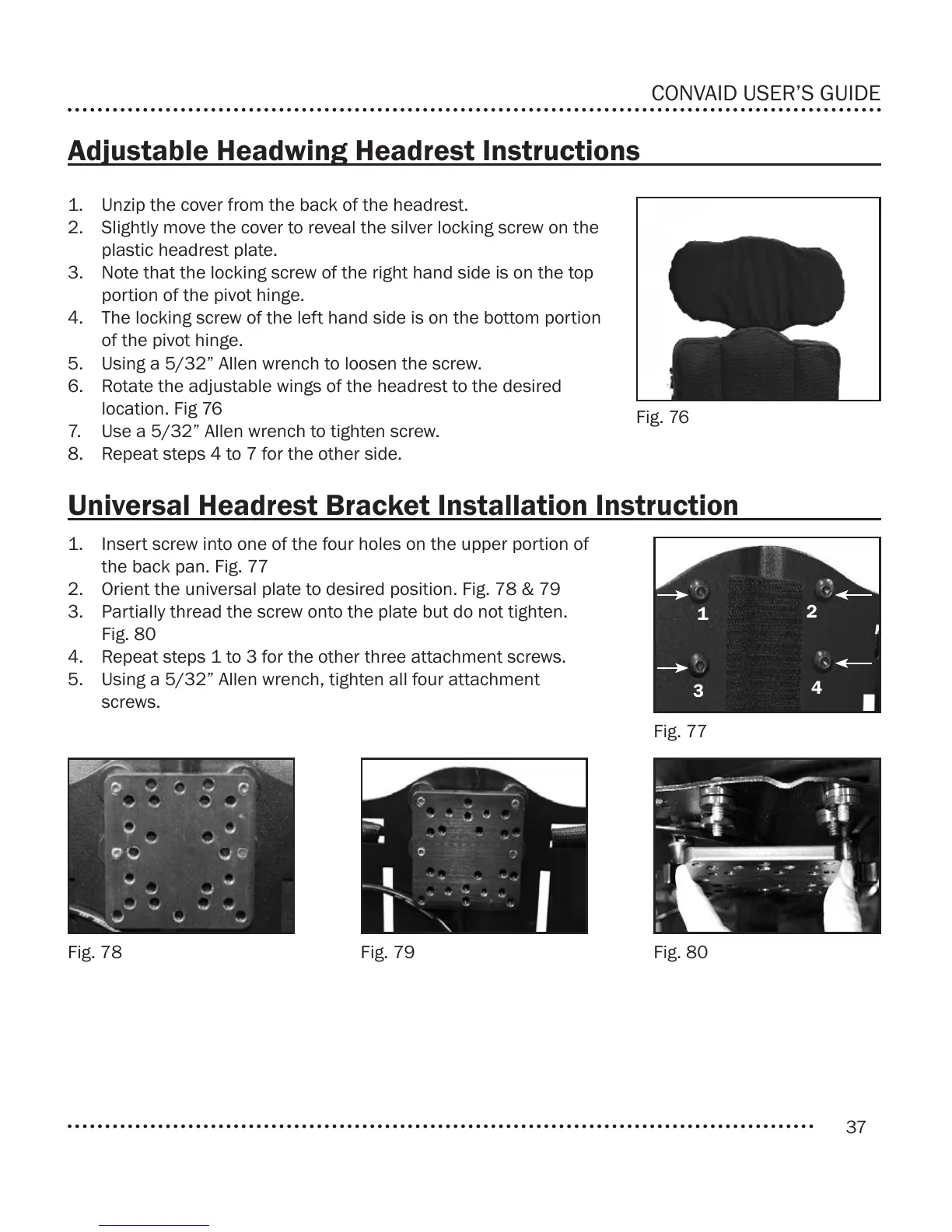

CONVAID USER’S GUIDE
Adjustable Headwing Headrest Instructions
Fig. 76
1. Unzip the cover from the back of the headrest.
2. Slightly move the cover to reveal the silver locking screw on the
plastic headrest plate.
3. Note that the locking screw of the right hand side is on the top
portion of the pivot hinge.
4. The locking screw of the left hand side is on the bottom portion
of the pivot hinge.
5. Using a 5/32” Allen wrench to loosen the screw.
6. Rotate the adjustable wings of the headrest to the desired
location. Fig 76
7. Use a 5/32” Allen wrench to tighten screw.
8. Repeat steps 4 to 7 for the other side.
Universal Headrest Bracket Installation Instruction
1. Insert screw into one of the four holes on the upper portion of
the back pan. Fig. 77
2. Orient the universal plate to desired position. Fig. 78 & 79
3. Partially thread the screw onto the plate but do not tighten.
Fig. 80
4. Repeat steps 1 to 3 for the other three attachment screws.
5. Using a 5/32” Allen wrench, tighten all four attachment
screws.
Fig. 77
1
2
4
3
Fig. 79
Fig. 78
Fig. 80
