CONVAID USER’S GUIDE
WARNING: Do not set height beyond the
maximum indicated line.
To Adjust the Turtle Bar System
1. Use 5mm Allen wrench to loosen the bolts and loosen the
lever. Fig. 92
2. Adjust to desired depth and height then retighten the bolts
and lever.
Fig. 92
Fig. 91

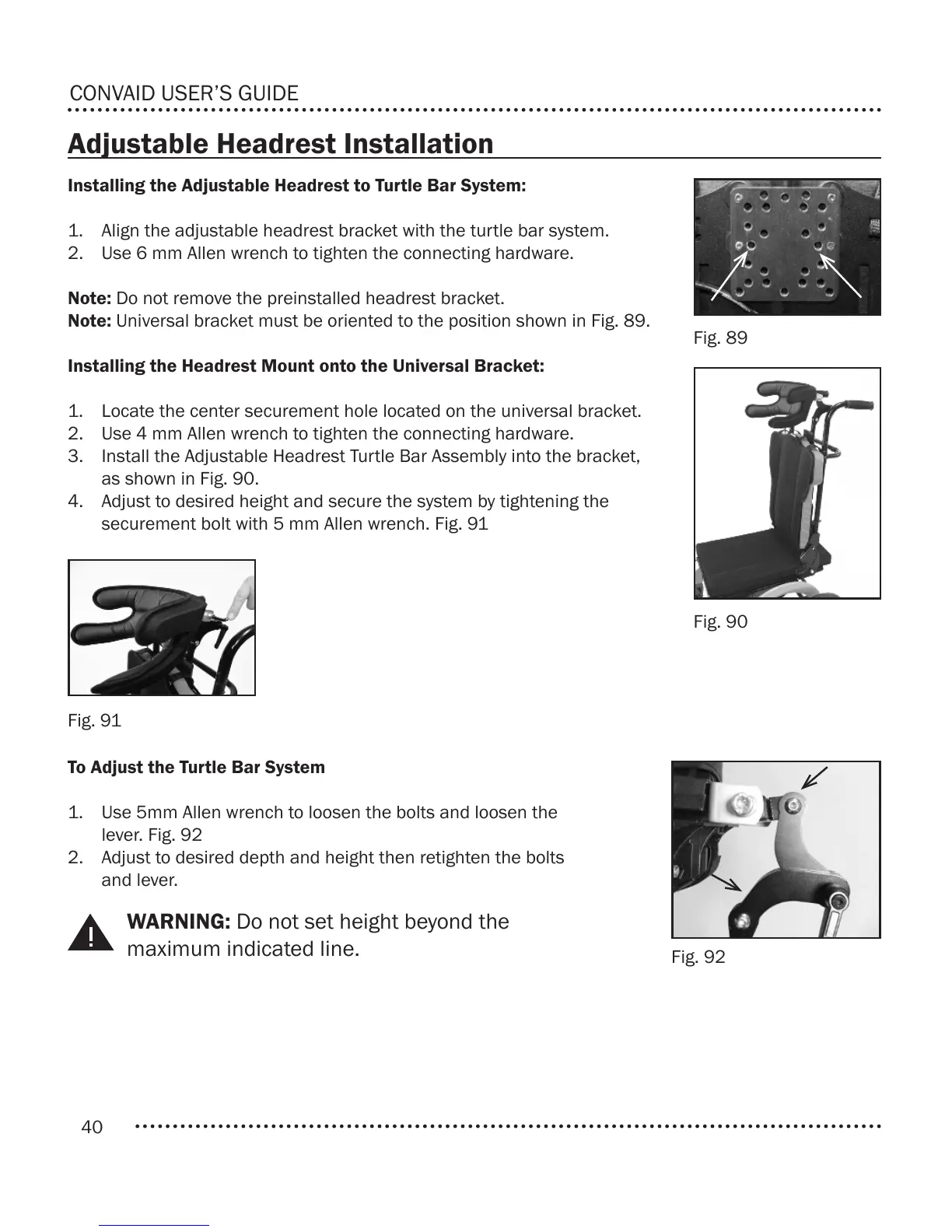

Adjustable Headrest Installation
Installing the Adjustable Headrest to Turtle Bar System:
1. Align the adjustable headrest bracket with the turtle bar system.
2. Use 6 mm Allen wrench to tighten the connecting hardware.
Note: Do not remove the preinstalled headrest bracket.
Note: Universal bracket must be oriented to the position shown in Fig. 89.
Installing the Headrest Mount onto the Universal Bracket:
1. Locate the center securement hole located on the universal bracket.
2. Use 4 mm Allen wrench to tighten the connecting hardware.
3. Install the Adjustable Headrest Turtle Bar Assembly into the bracket,
as shown in Fig. 90.
4. Adjust to desired height and secure the system by tightening the
securement bolt with 5 mm Allen wrench. Fig. 91
Fig. 90
Fig. 89
