33

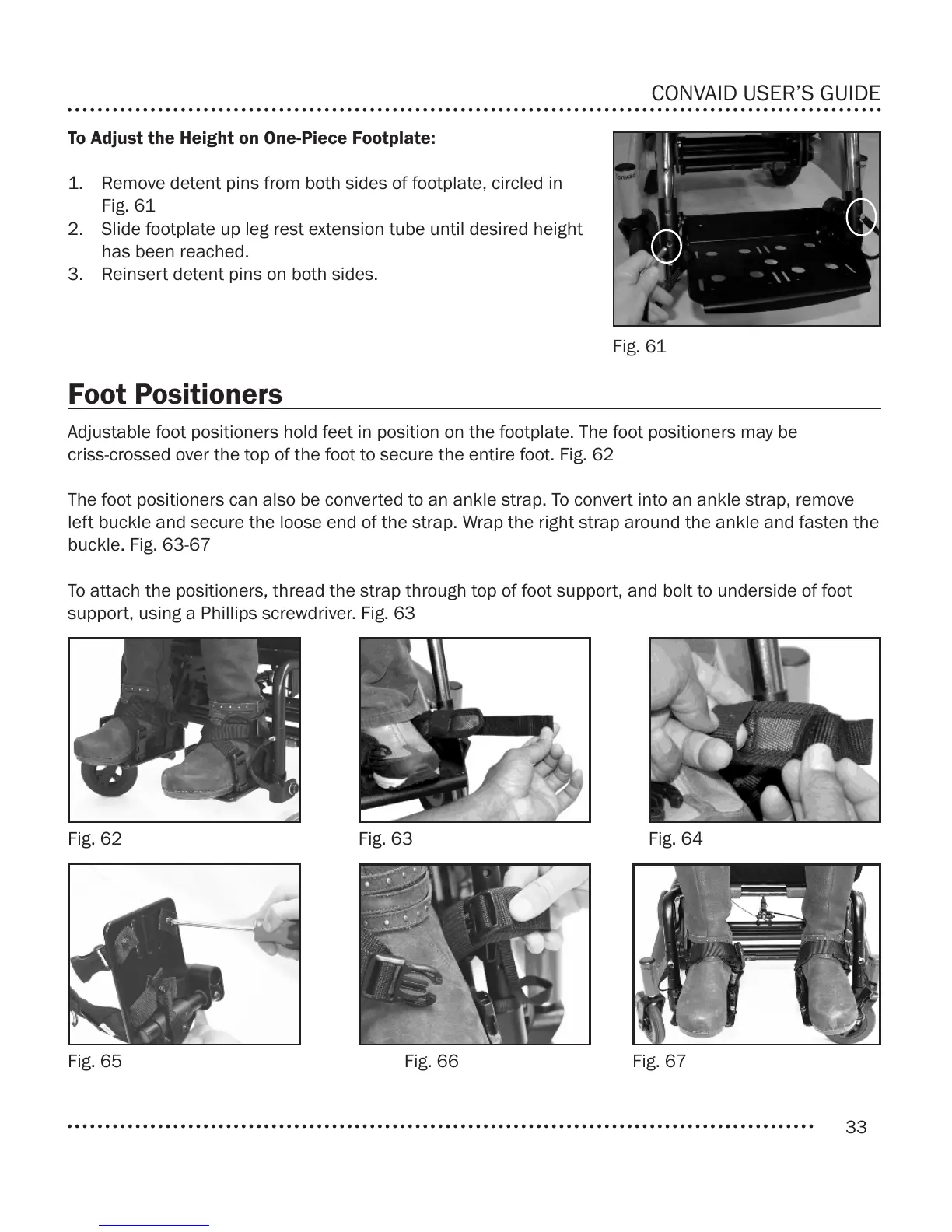

CONVAID USER’S GUIDE
Fig. 61
To Adjust the Height on One-Piece Footplate:
1. Remove detent pins from both sides of footplate, circled in
Fig. 61
2. Slide footplate up leg rest extension tube until desired height
has been reached.
3. Reinsert detent pins on both sides.
Foot Positioners
Adjustable foot positioners hold feet in position on the footplate. The foot positioners may be
criss-crossed over the top of the foot to secure the entire foot. Fig. 62
The foot positioners can also be converted to an ankle strap. To convert into an ankle strap, remove
left buckle and secure the loose end of the strap. Wrap the right strap around the ankle and fasten the
buckle. Fig. 63-67
To attach the positioners, thread the strap through top of foot support, and bolt to underside of foot
support, using a Phillips screwdriver. Fig. 63
Fig. 62
Fig. 65 Fig. 66 Fig. 67
Fig. 63
Fig. 64
