15

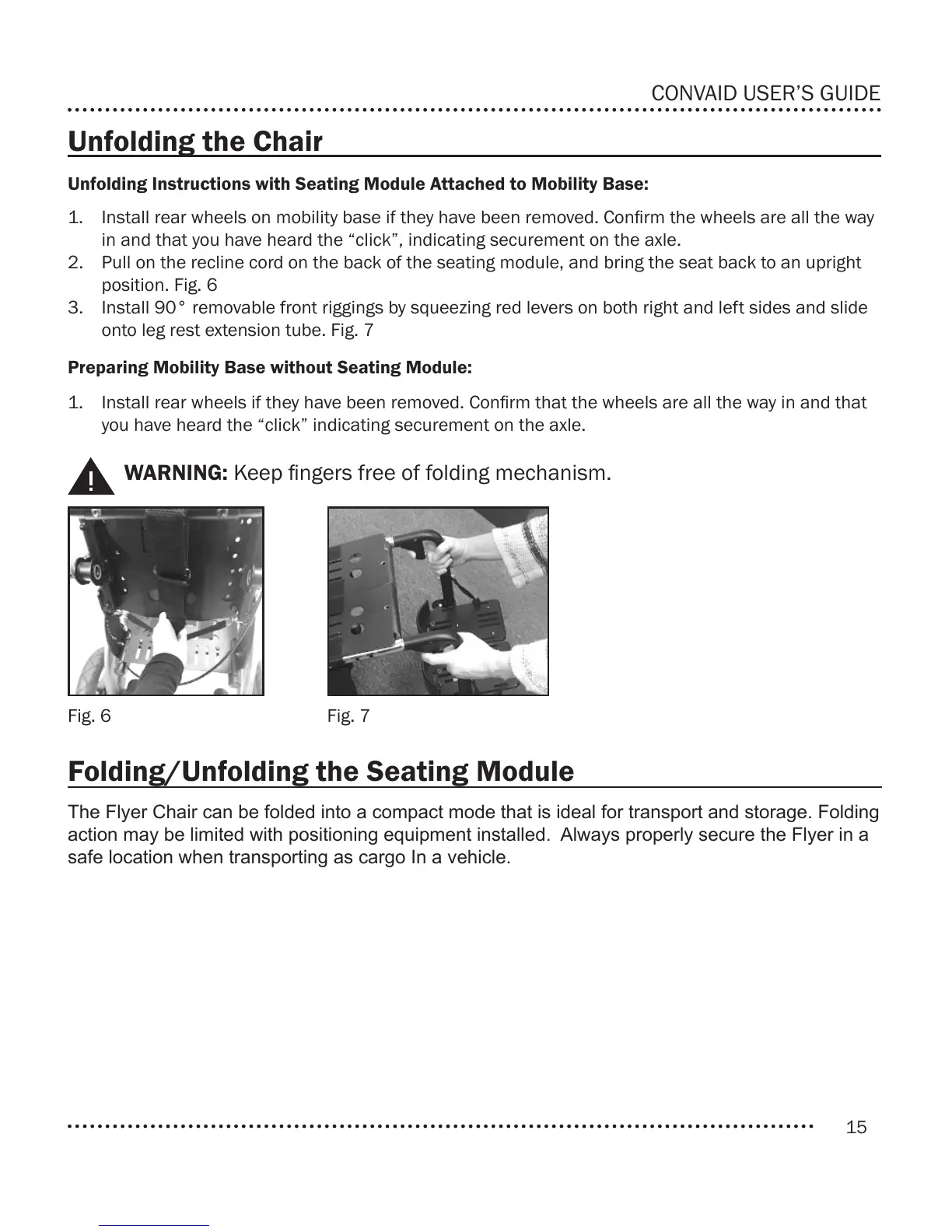

CONVAID USER’S GUIDE
Fig. 6 Fig. 7
1. Install rear wheels on mobility base if they have been removed. Conrm the wheels are all the way
in and that you have heard the “click”, indicating securement on the axle.
2. Pull on the recline cord on the back of the seating module, and bring the seat back to an upright
position. Fig. 6
3. Install 90° removable front riggings by squeezing red levers on both right and left sides and slide
onto leg rest extension tube. Fig. 7
1. Install rear wheels if they have been removed. Conrm that the wheels are all the way in and that
you have heard the “click” indicating securement on the axle.
Unfolding the Chair
Unfolding Instructions with Seating Module Attached to Mobility Base:
Preparing Mobility Base without Seating Module:
WARNING: Keep ngers free of folding mechanism.
Folding/Unfolding the Seating Module
The Flyer Chair can be folded into a compact mode that is ideal for transport and storage. Folding
action may be limited with positioning equipment installed. Always properly secure the Flyer in a
safe location when transporting as cargo In a vehicle.
