CONVAID USER’S GUIDE
Back Cane Mount
Back Pan Mount
BACK CANE MOUNT:
To attach R82 vests and belts to the back canes, identify proper location on the back cane and install
hardware in the shown order. Tighten using 3/8” wrench and Phillips head screwdriver. Fig 53 & 54
BACK PAN MOUNT:
To attach R82 vests and belts to the back pan, identify proper location on the back pan and install
hardware in the shown order from the front of the back pan to the back. Tighten using 3/8” wrench
and Phillips head screwdriver. Fig. 55 & 56

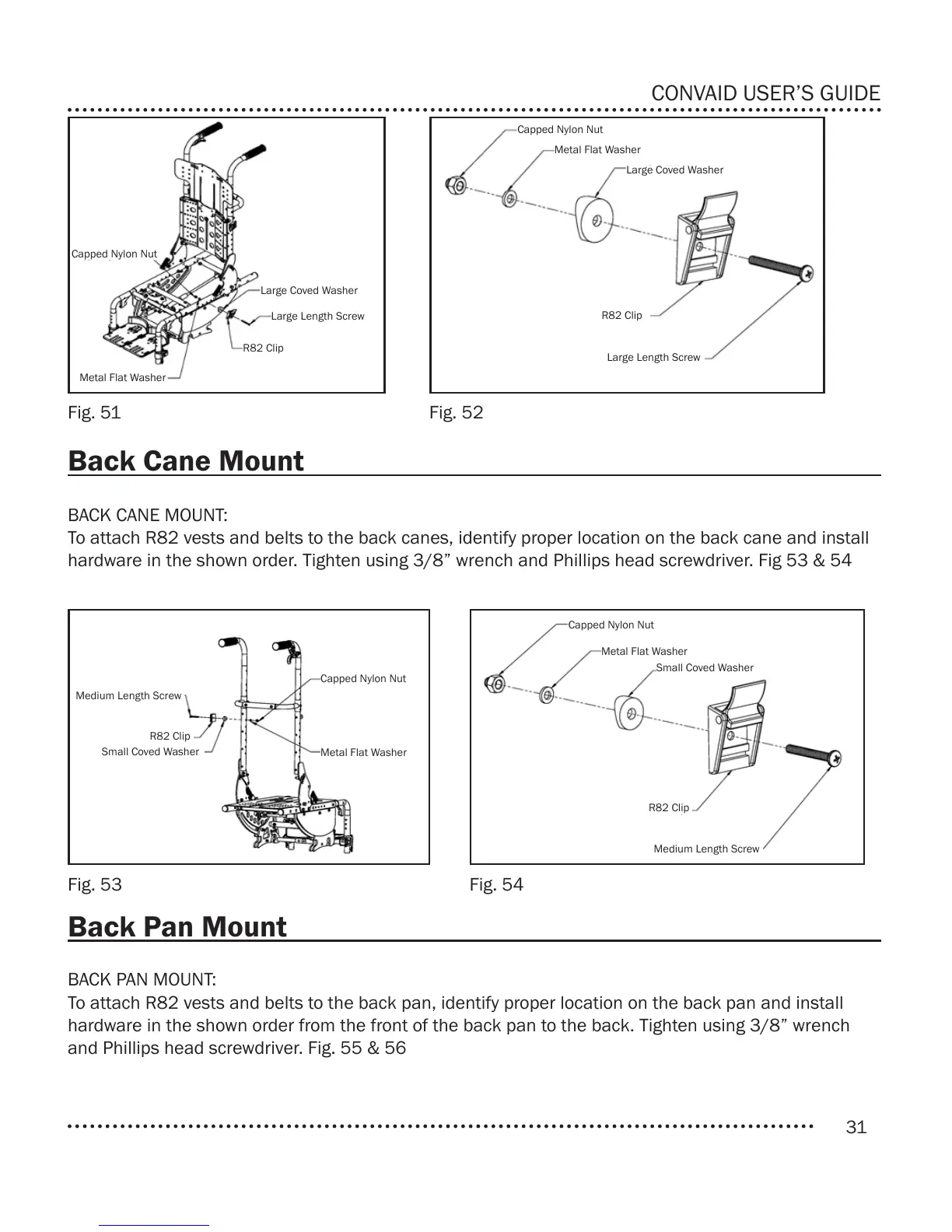

Fig. 51
Fig. 53
Fig. 52
Fig. 54
R82 Clip
Large Length Screw
Large Coved Washer
Capped Nylon Nut
Metal Flat Washer
Capped Nylon Nut
Metal Flat Washer
Large Coved Washer
R82 Clip
Large Length Screw
Medium Length Screw
R82 Clip
Small Coved Washer
Metal Flat Washer
Capped Nylon Nut
Medium Length Screw
R82 Clip
Small Coved Washer
Metal Flat Washer
Capped Nylon Nut
