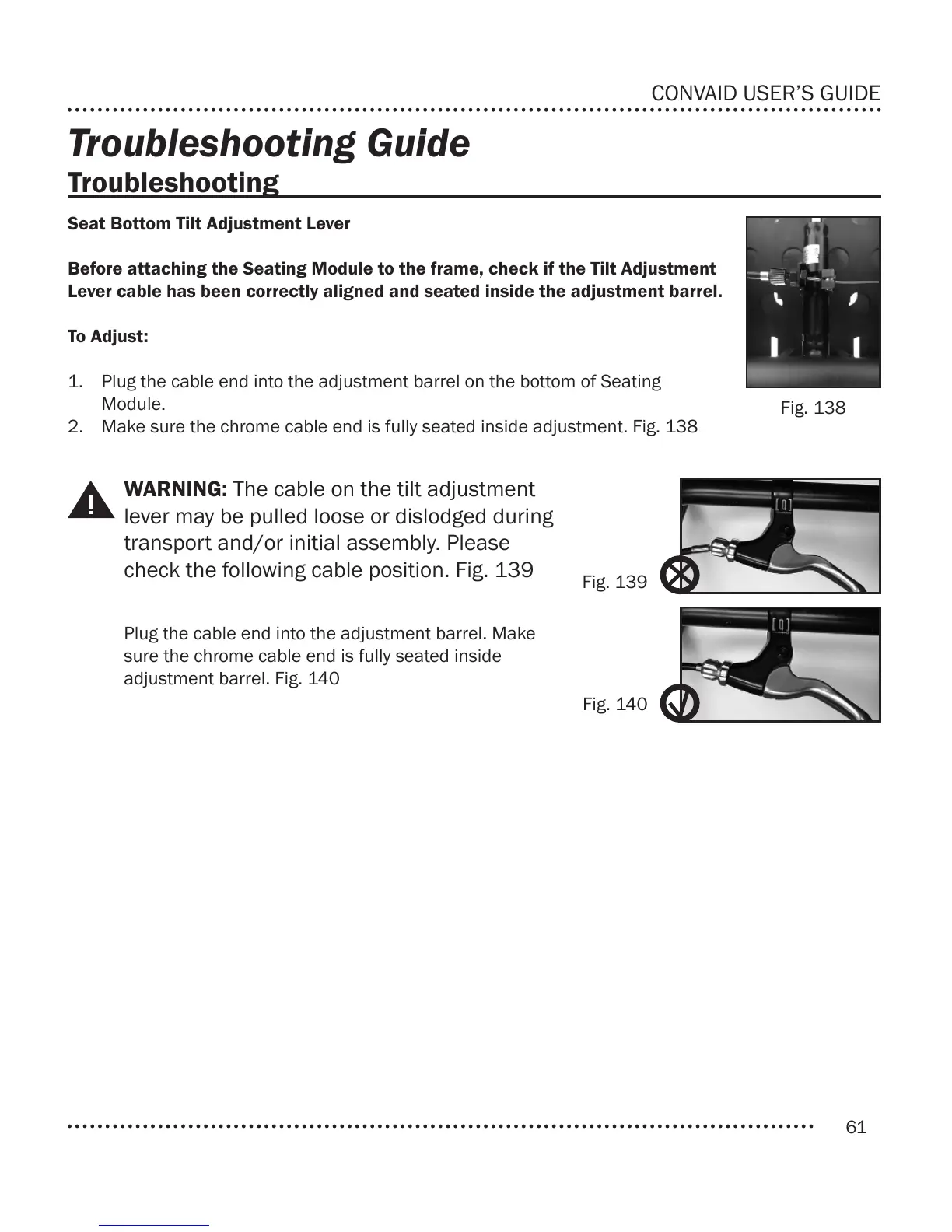

CONVAID USER’S GUIDE
Troubleshooting Guide
Seat Bottom Tilt Adjustment Lever
Before attaching the Seating Module to the frame, check if the Tilt Adjustment
Lever cable has been correctly aligned and seated inside the adjustment barrel.
To Adjust:
1. Plug the cable end into the adjustment barrel on the bottom of Seating
Module.
2. Make sure the chrome cable end is fully seated inside adjustment. Fig. 138
WARNING: The cable on the tilt adjustment
lever may be pulled loose or dislodged during
transport and/or initial assembly. Please
check the following cable position. Fig. 139
Fig. 138
Fig. 139
Fig. 140
Troubleshooting
Plug the cable end into the adjustment barrel. Make
sure the chrome cable end is fully seated inside
adjustment barrel. Fig. 140
