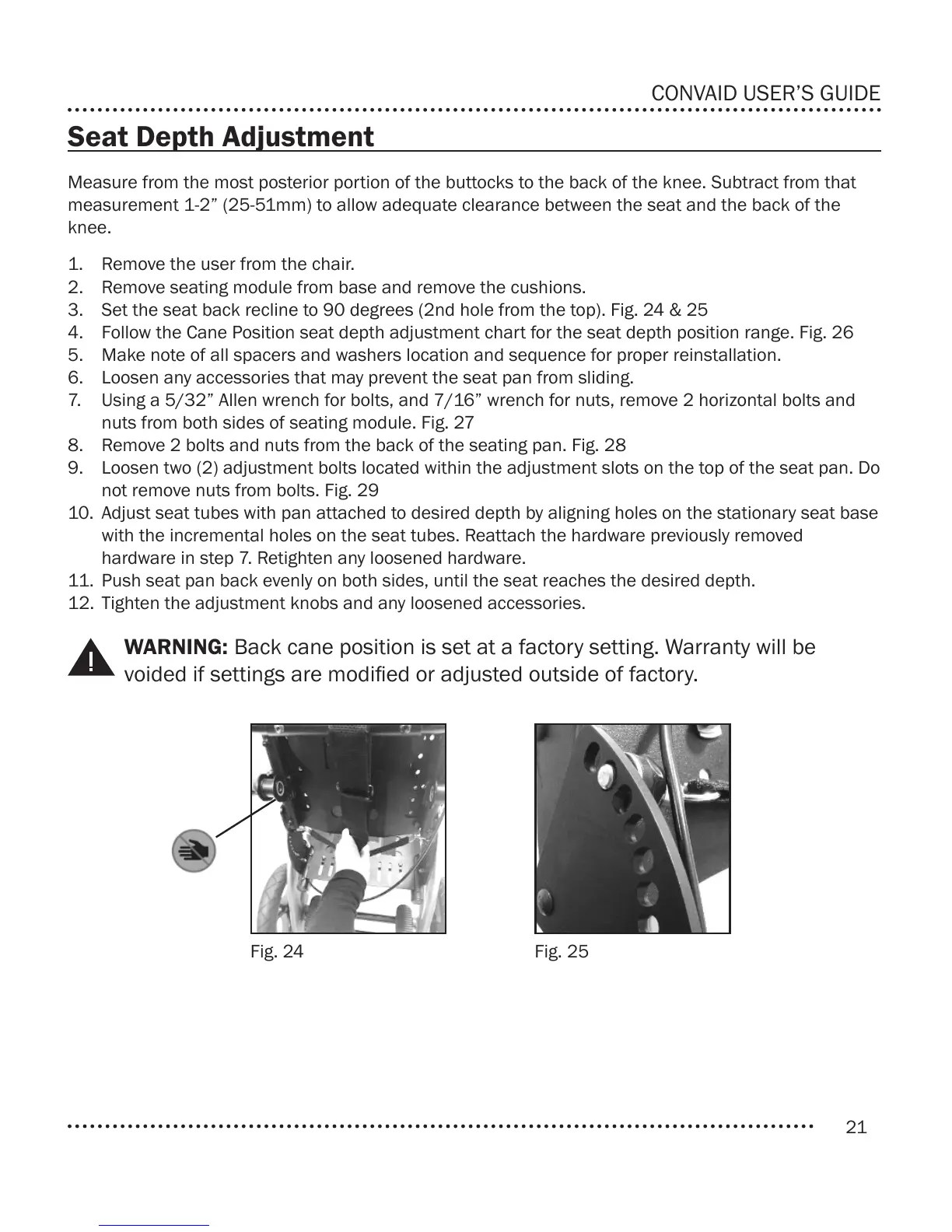

CONVAID USER’S GUIDE
Seat Depth Adjustment
Measure from the most posterior portion of the buttocks to the back of the knee. Subtract from that
measurement 1-2” (25-51mm) to allow adequate clearance between the seat and the back of the
knee.
WARNING: Back cane position is set at a factory setting. Warranty will be
voided if settings are modied or adjusted outside of factory.
Fig. 24 Fig. 25
1. Remove the user from the chair.
2. Remove seating module from base and remove the cushions.
3. Set the seat back recline to 90 degrees (2nd hole from the top). Fig. 24 & 25
4. Follow the Cane Position seat depth adjustment chart for the seat depth position range. Fig. 26
5. Make note of all spacers and washers location and sequence for proper reinstallation.
6. Loosen any accessories that may prevent the seat pan from sliding.
7. Using a 5/32” Allen wrench for bolts, and 7/16” wrench for nuts, remove 2 horizontal bolts and
nuts from both sides of seating module. Fig. 27
8. Remove 2 bolts and nuts from the back of the seating pan. Fig. 28
9. Loosen two (2) adjustment bolts located within the adjustment slots on the top of the seat pan. Do
not remove nuts from bolts. Fig. 29
10. Adjust seat tubes with pan attached to desired depth by aligning holes on the stationary seat base
with the incremental holes on the seat tubes. Reattach the hardware previously removed
hardware in step 7. Retighten any loosened hardware.
11. Push seat pan back evenly on both sides, until the seat reaches the desired depth.
12. Tighten the adjustment knobs and any loosened accessories.
