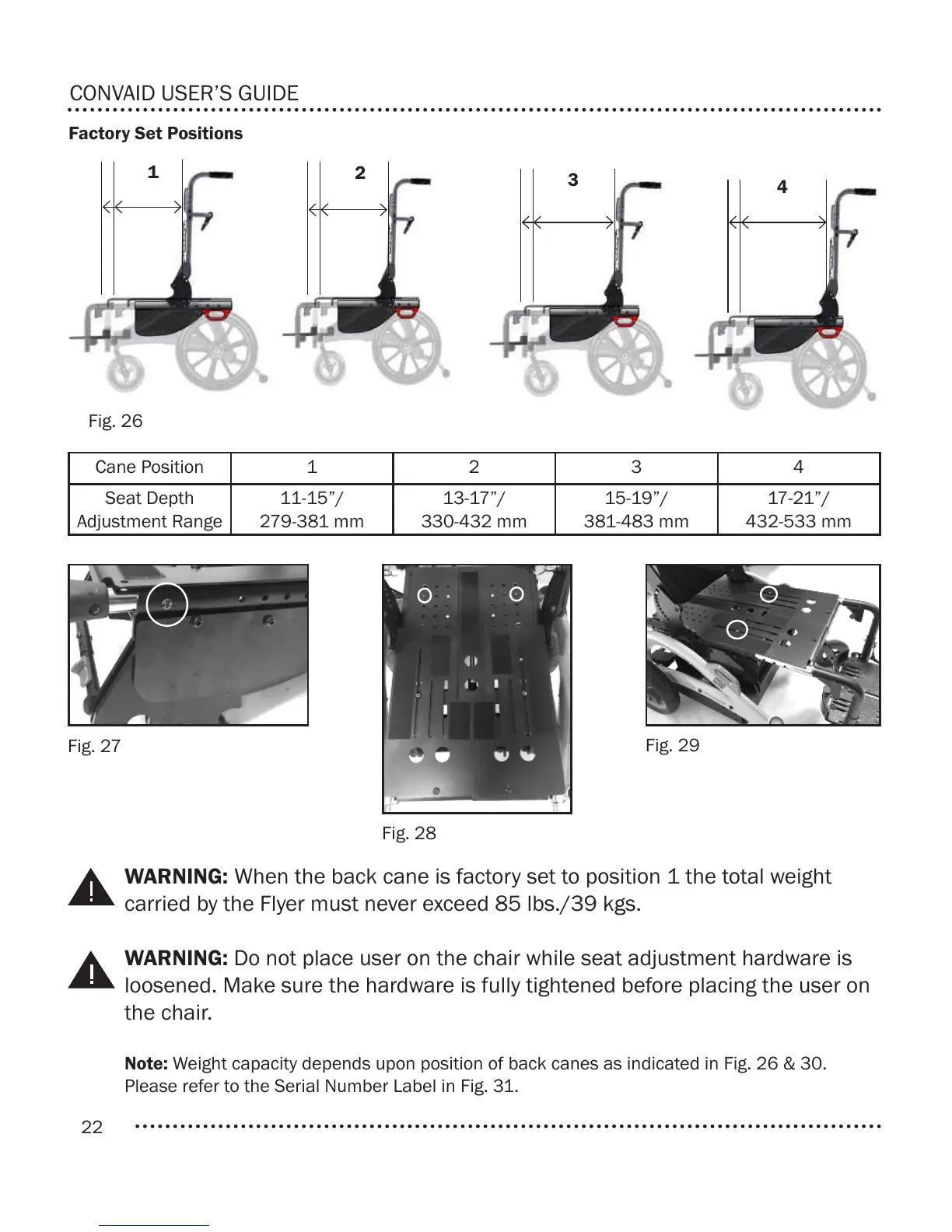

CONVAID USER’S GUIDE
Factory Set Positions
WARNING: When the back cane is factory set to position 1 the total weight
carried by the Flyer must never exceed 85 lbs./39 kgs.
WARNING: Do not place user on the chair while seat adjustment hardware is
loosened. Make sure the hardware is fully tightened before placing the user on
the chair.
Note: Weight capacity depends upon position of back canes as indicated in Fig. 26 & 30.
Please refer to the Serial Number Label in Fig. 31.
Cane Position 1 2 3 4
Seat Depth
Adjustment Range
11-15”/
279-381 mm
13-17”/
330-432 mm
15-19”/
381-483 mm
17-21”/
432-533 mm
1
2
3
4
Fig. 26
Fig. 27
Fig. 28
Fig. 29
