Convaid Flyer - Laterals

42
CONVAID USER’S GUIDE

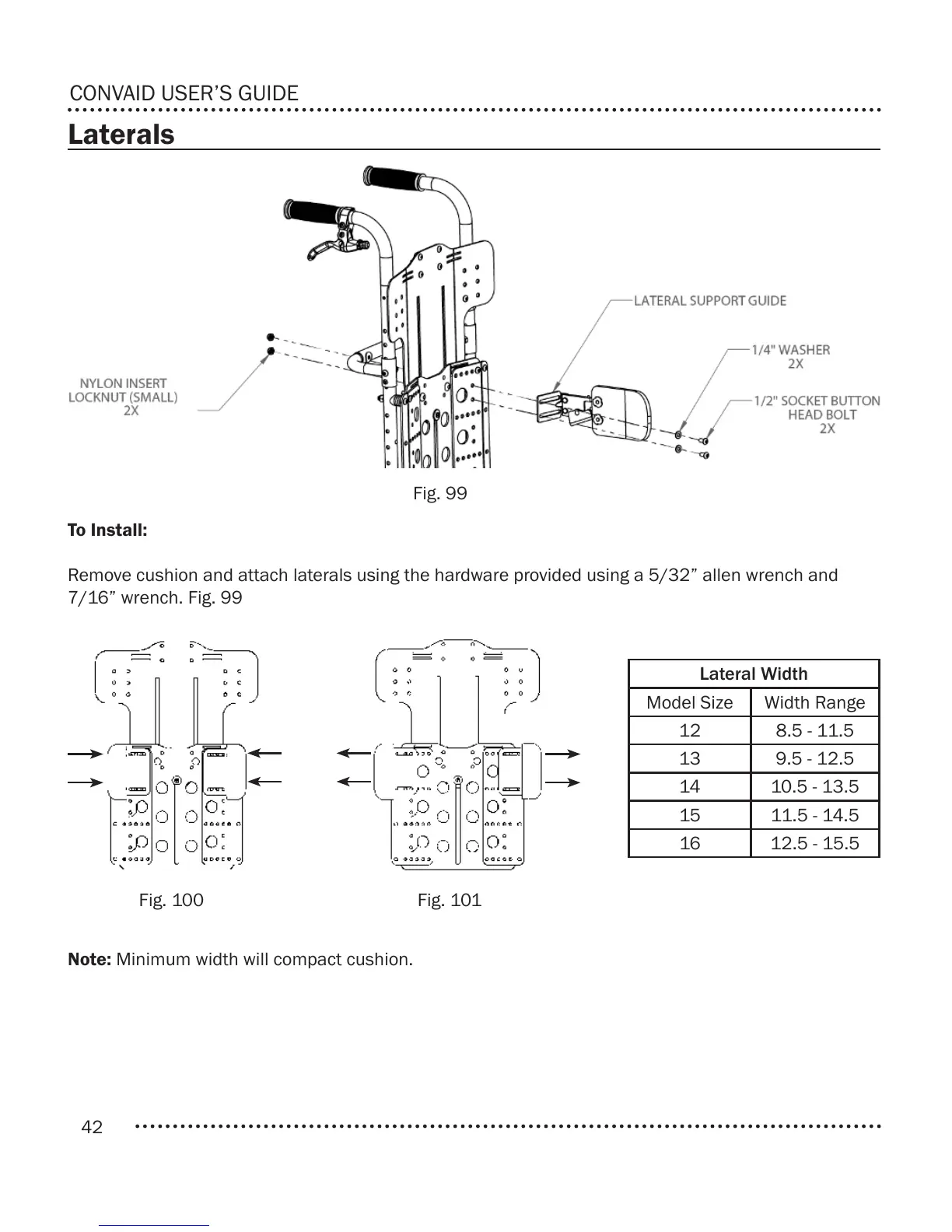

To Install:
Remove cushion and attach laterals using the hardware provided using a 5/32” allen wrench and
7/16” wrench. Fig. 99
Note: Minimum width will compact cushion.
Fig. 100
Fig. 99
Fig. 101
Laterals
Lateral Width
Model Size Width Range
12 8.5 - 11.5
13 9.5 - 12.5
14 10.5 - 13.5
15 11.5 - 14.5
16 12.5 - 15.5
