Convaid Flyer - Page 46

43
CONVAID USER’S GUIDE

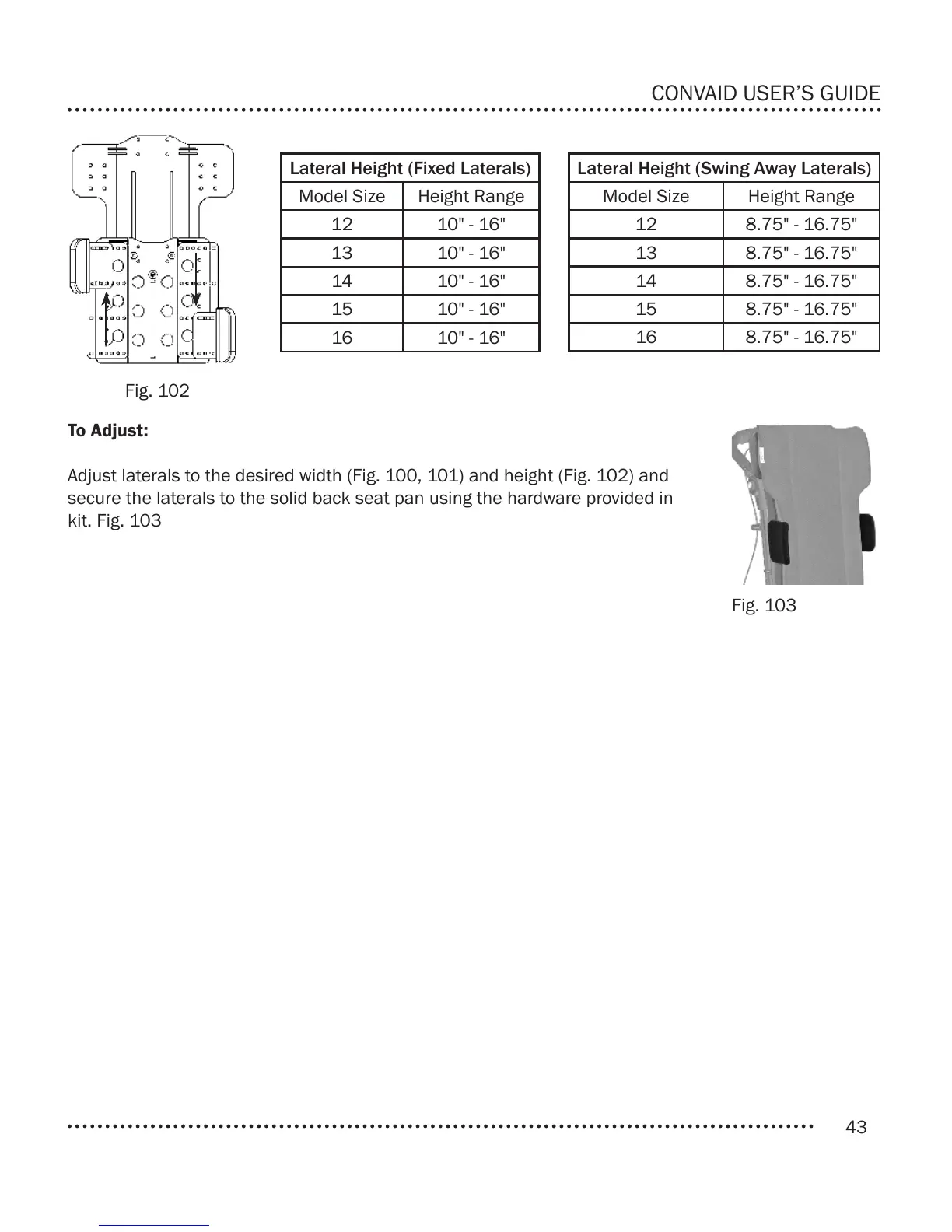

Fig. 103
Fig. 102
To Adjust:
Adjust laterals to the desired width (Fig. 100, 101) and height (Fig. 102) and
secure the laterals to the solid back seat pan using the hardware provided in
kit. Fig. 103
Lateral Height (Fixed Laterals)
Model Size Height Range
12 10" - 16"
13 10" - 16"
14 10" - 16"
15 10" - 16"
16 10" - 16"
Lateral Height (Swing Away Laterals)
Model Size Height Range
12 8.75" - 16.75"
13 8.75" - 16.75"
14 8.75" - 16.75"
15 8.75" - 16.75"
16 8.75" - 16.75"
