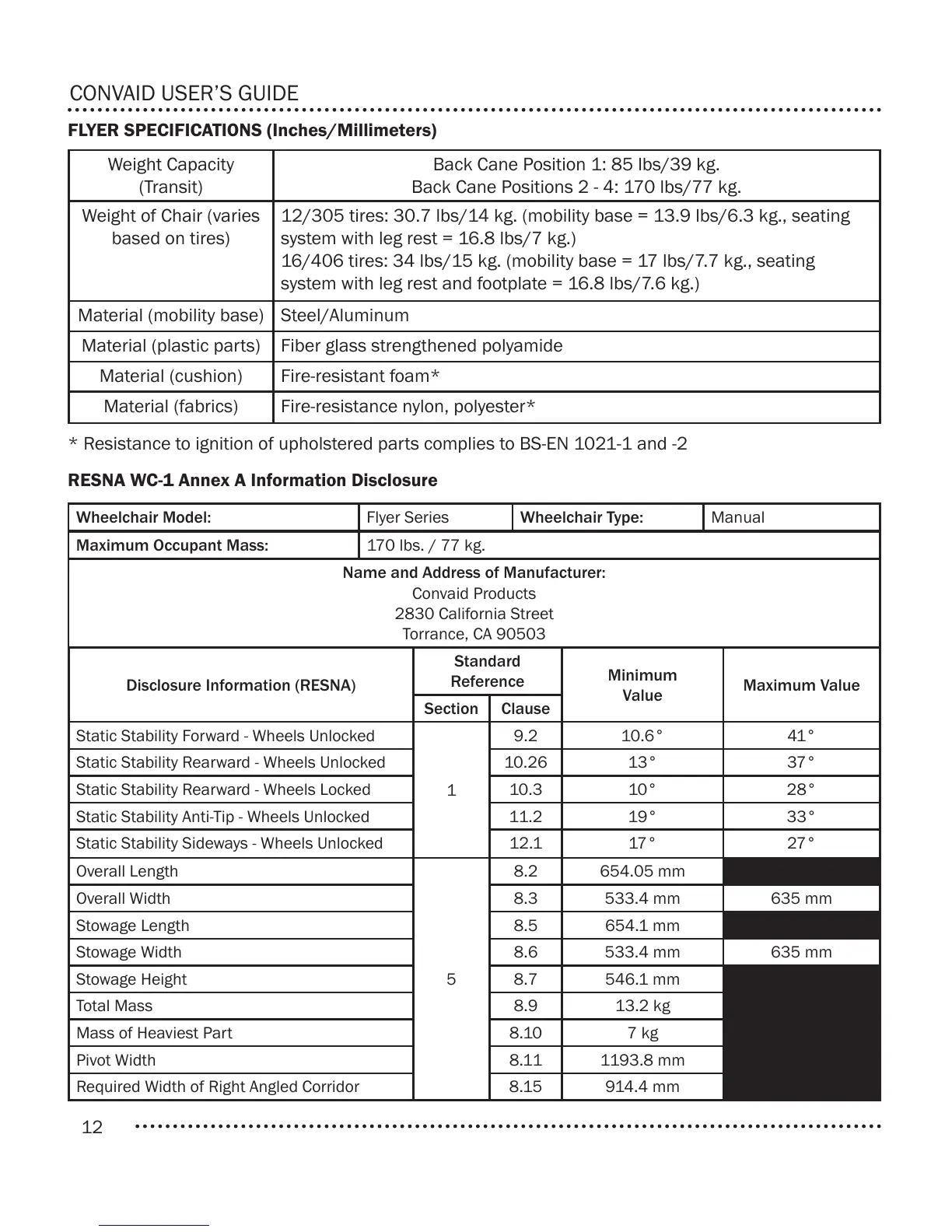

12
CONVAID USER’S GUIDE
Weight Capacity
(Transit)
Back Cane Position 1: 85 lbs/39 kg.
Back Cane Positions 2 - 4: 170 lbs/77 kg.
Weight of Chair (varies
based on tires)
12/305 tires: 30.7 lbs/14 kg. (mobility base = 13.9 lbs/6.3 kg., seating
system with leg rest = 16.8 lbs/7 kg.)
16/406 tires: 34 lbs/15 kg. (mobility base = 17 lbs/7.7 kg., seating
system with leg rest and footplate = 16.8 lbs/7.6 kg.)
Material (mobility base) Steel/Aluminum
Material (plastic parts) Fiber glass strengthened polyamide
Material (cushion) Fire-resistant foam*
Material (fabrics) Fire-resistance nylon, polyester*
* Resistance to ignition of upholstered parts complies to BS-EN 1021-1 and -2
RESNA WC-1 Annex A Information Disclosure
FLYER SPECIFICATIONS (Inches/Millimeters)
Wheelchair Model: Flyer Series Wheelchair Type: Manual
Maximum Occupant Mass: 170 lbs. / 77 kg.
Name and Address of Manufacturer:
Convaid Products
2830 California Street
Torrance, CA 90503
Disclosure Information (RESNA)
Standard
Reference
Minimum
Value
Maximum Value
Section Clause
Static Stability Forward - Wheels Unlocked
1
9.2 10.6° 41°
Static Stability Rearward - Wheels Unlocked 10.26 13° 37°
Static Stability Rearward - Wheels Locked 10.3 10° 28°
Static Stability Anti-Tip - Wheels Unlocked 11.2 19° 33°
Static Stability Sideways - Wheels Unlocked 12.1 17° 27°
Overall Length
5
8.2 654.05 mm
Overall Width 8.3 533.4 mm 635 mm
Stowage Length 8.5 654.1 mm
Stowage Width 8.6 533.4 mm 635 mm
Stowage Height 8.7 546.1 mm
Total Mass 8.9 13.2 kg
Mass of Heaviest Part 8.10 7 kg
Pivot Width 8.11 1193.8 mm
Required Width of Right Angled Corridor 8.15 914.4 mm
