Convaid Flyer - Installing Seating Module Onto Mobility Base

18
CONVAID USER’S GUIDE

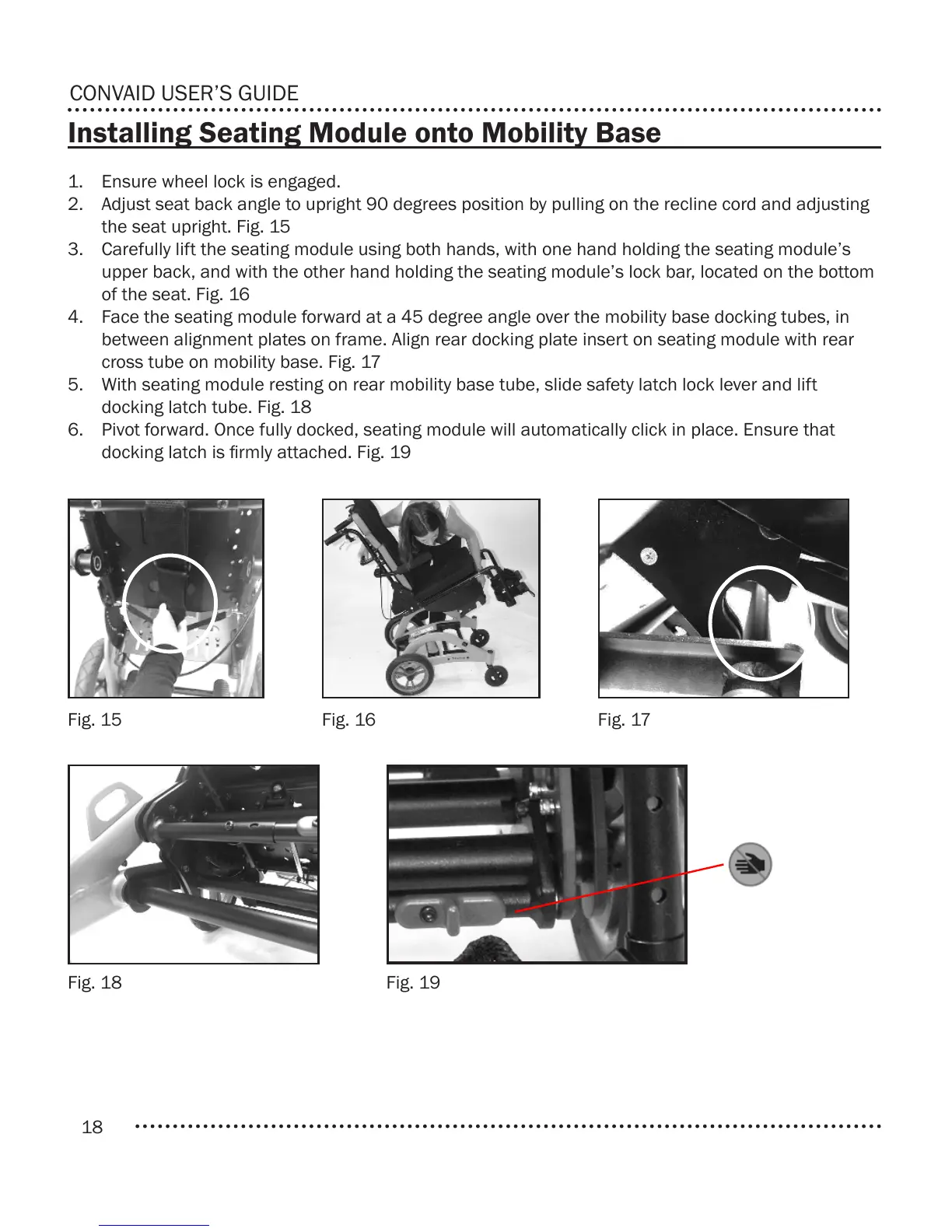

Installing Seating Module onto Mobility Base
Fig. 15
Fig. 18 Fig. 19
Fig. 16 Fig. 17
1. Ensure wheel lock is engaged.
2. Adjust seat back angle to upright 90 degrees position by pulling on the recline cord and adjusting
the seat upright. Fig. 15
3. Carefully lift the seating module using both hands, with one hand holding the seating module’s
upper back, and with the other hand holding the seating module’s lock bar, located on the bottom
of the seat. Fig. 16
4. Face the seating module forward at a 45 degree angle over the mobility base docking tubes, in
between alignment plates on frame. Align rear docking plate insert on seating module with rear
cross tube on mobility base. Fig. 17
5. With seating module resting on rear mobility base tube, slide safety latch lock lever and lift
docking latch tube. Fig. 18
6. Pivot forward. Once fully docked, seating module will automatically click in place. Ensure that
docking latch is rmly attached. Fig. 19
