Convaid Flyer - Anatomic Headrest Installation

38
CONVAID USER’S GUIDE

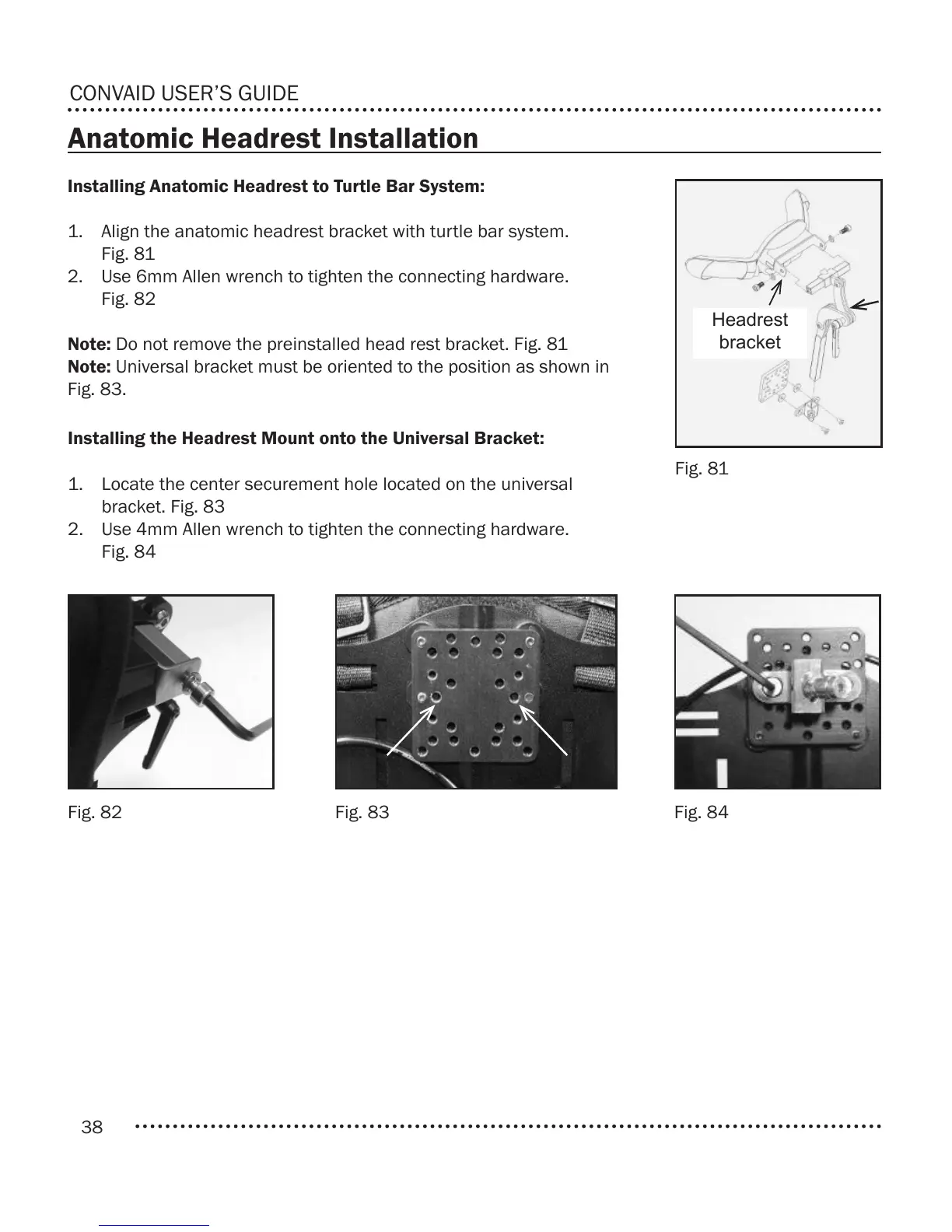

Fig. 82 Fig. 83 Fig. 84
Anatomic Headrest Installation
Installing Anatomic Headrest to Turtle Bar System:
1. Align the anatomic headrest bracket with turtle bar system.
Fig. 81
2. Use 6mm Allen wrench to tighten the connecting hardware.
Fig. 82
Note: Do not remove the preinstalled head rest bracket. Fig. 81
Note: Universal bracket must be oriented to the position as shown in
Fig. 83.
Installing the Headrest Mount onto the Universal Bracket:
1. Locate the center securement hole located on the universal
bracket. Fig. 83
2. Use 4mm Allen wrench to tighten the connecting hardware.
Fig. 84
Headrest
bracket
