Convaid Flyer - Securing the Wheelchair

54
CONVAID USER’S GUIDE
Attach tiedown straps to transit anchors located on the wheelchair’s mobility base and seating module
in accordance with the WTORS manufacturer’s instructions. Securement points are identied by the
symbol in Fig. 128, and their location on the wheelchair illustrated in Fig. 129 & 130.
Securing the Wheelchair
Fig. 130
Hook-type end tting
Transit anchor
Lap belt anchorage
Fig. 128 Fig. 129

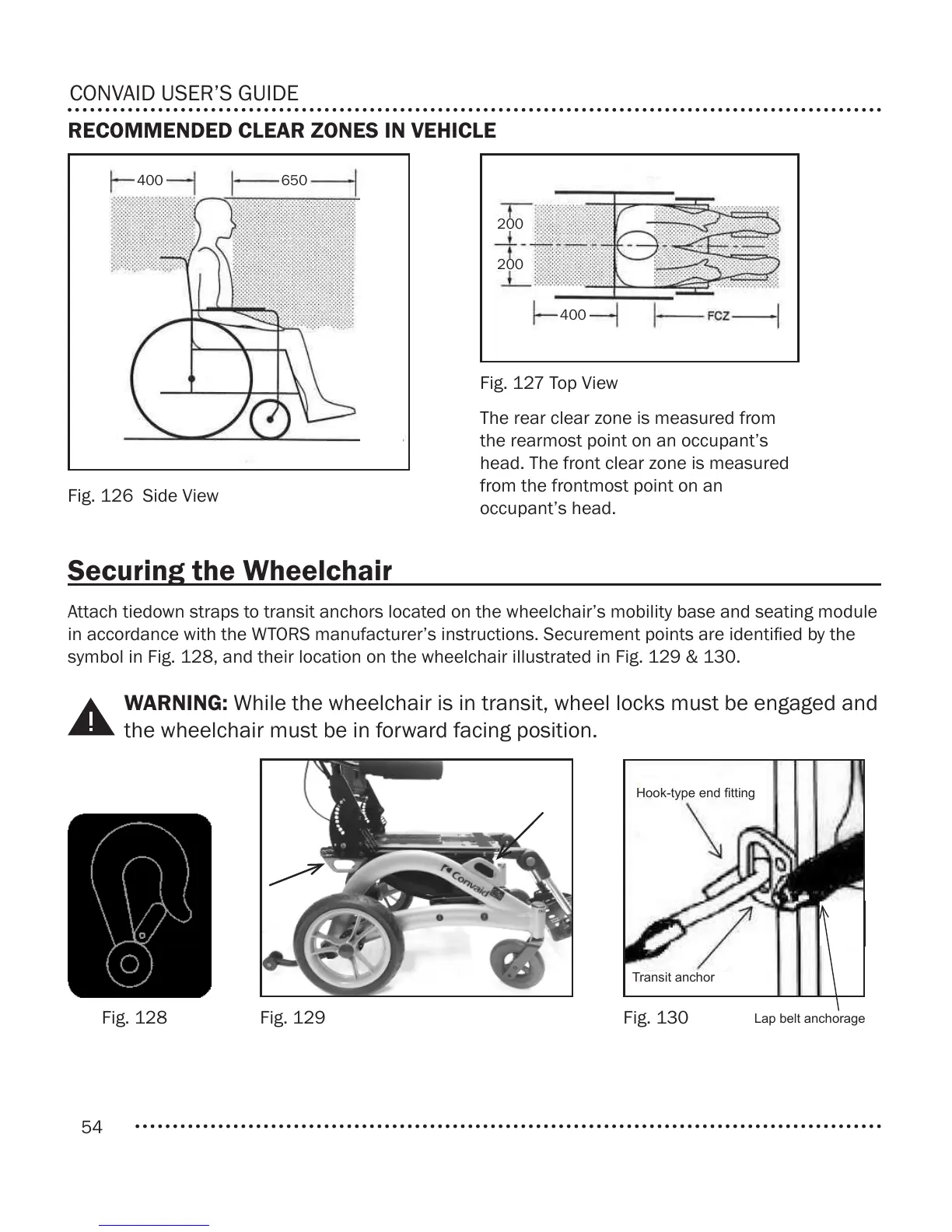

RECOMMENDED CLEAR ZONES IN VEHICLE
650
400
200
200
400
Fig. 126 Side View
Fig. 127 Top View
The rear clear zone is measured from
the rearmost point on an occupant’s
head. The front clear zone is measured
from the frontmost point on an
occupant’s head.
WARNING: While the wheelchair is in transit, wheel locks must be engaged and
the wheelchair must be in forward facing position.
