55
CONVAID USER’S GUIDE

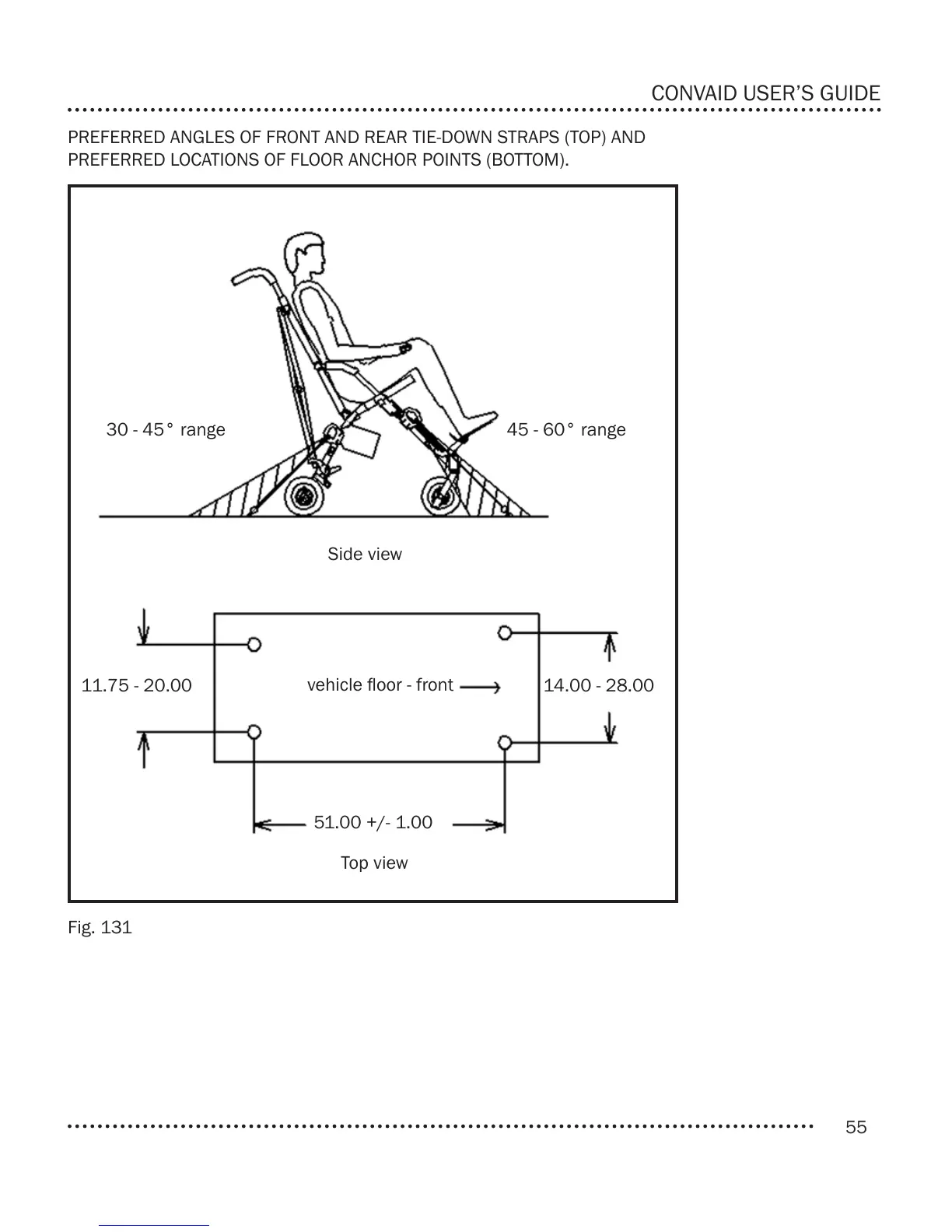

Fig. 131
PREFERRED ANGLES OF FRONT AND REAR TIE-DOWN STRAPS (TOP) AND
PREFERRED LOCATIONS OF FLOOR ANCHOR POINTS (BOTTOM).
30 - 45° range
11.75 - 20.00
51.00 +/- 1.00
vehicle oor - front
14.00 - 28.00
Side view
Top view
45 - 60° range
