CONVAID USER’S GUIDE

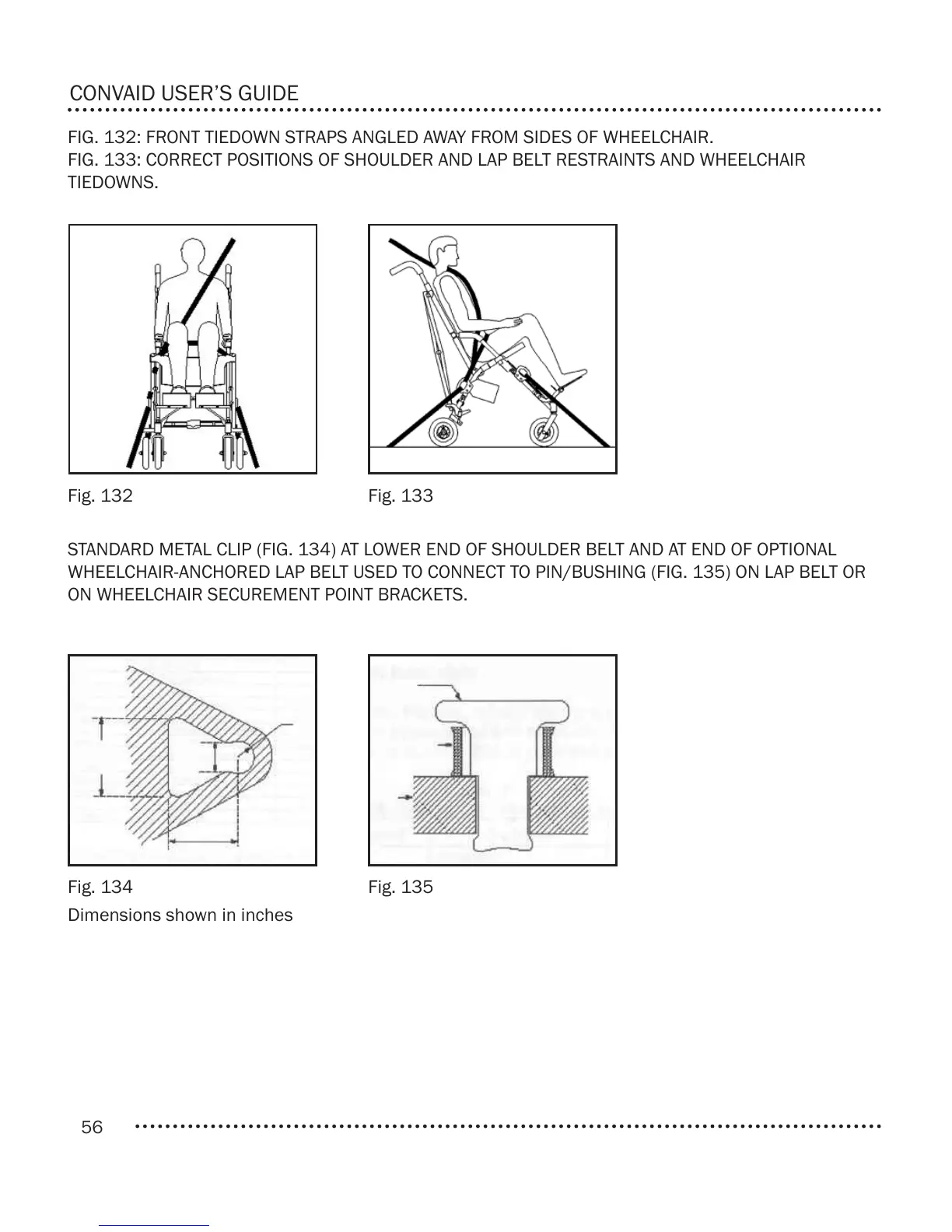

FIG. 132: FRONT TIEDOWN STRAPS ANGLED AWAY FROM SIDES OF WHEELCHAIR.
FIG. 133: CORRECT POSITIONS OF SHOULDER AND LAP BELT RESTRAINTS AND WHEELCHAIR
TIEDOWNS.
Fig. 132 Fig. 133
STANDARD METAL CLIP (FIG. 134) AT LOWER END OF SHOULDER BELT AND AT END OF OPTIONAL
WHEELCHAIR-ANCHORED LAP BELT USED TO CONNECT TO PIN/BUSHING (FIG. 135) ON LAP BELT OR
ON WHEELCHAIR SECUREMENT POINT BRACKETS.
Dimensions shown in inches
Fig. 134 Fig. 135
