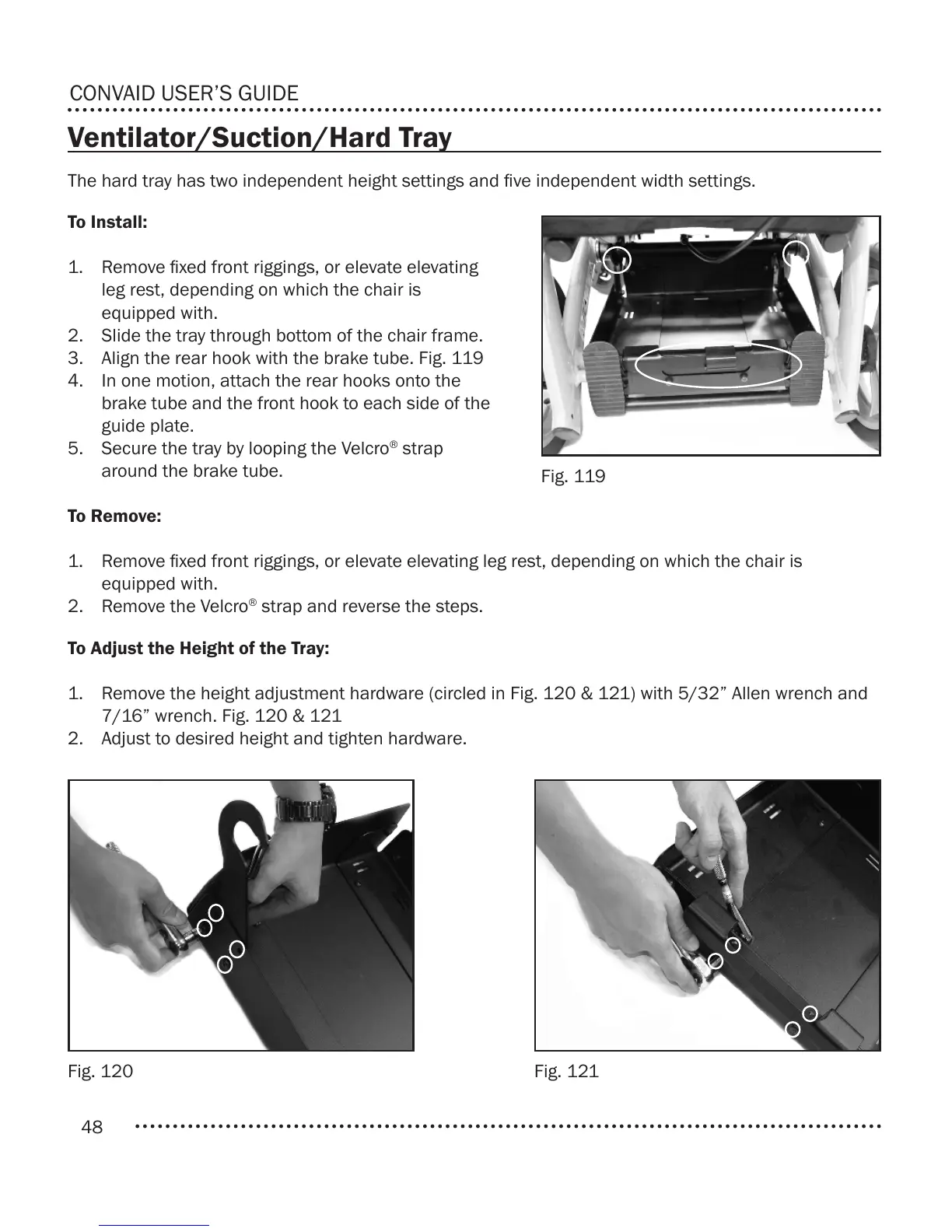

CONVAID USER’S GUIDE
Ventilator/Suction/Hard Tray
To Install:
1. Remove xed front riggings, or elevate elevating
leg rest, depending on which the chair is
equipped with.
2. Slide the tray through bottom of the chair frame.
3. Align the rear hook with the brake tube. Fig. 119
4. In one motion, attach the rear hooks onto the
brake tube and the front hook to each side of the
guide plate.
5. Secure the tray by looping the Velcro
®
strap
around the brake tube.
The hard tray has two independent height settings and ve independent width settings.
To Remove:
1. Remove xed front riggings, or elevate elevating leg rest, depending on which the chair is
equipped with.
2. Remove the Velcro
®
strap and reverse the steps.
To Adjust the Height of the Tray:
1. Remove the height adjustment hardware (circled in Fig. 120 & 121) with 5/32” Allen wrench and
7/16” wrench. Fig. 120 & 121
2. Adjust to desired height and tighten hardware.
Fig. 119
Fig. 120 Fig. 121
