45

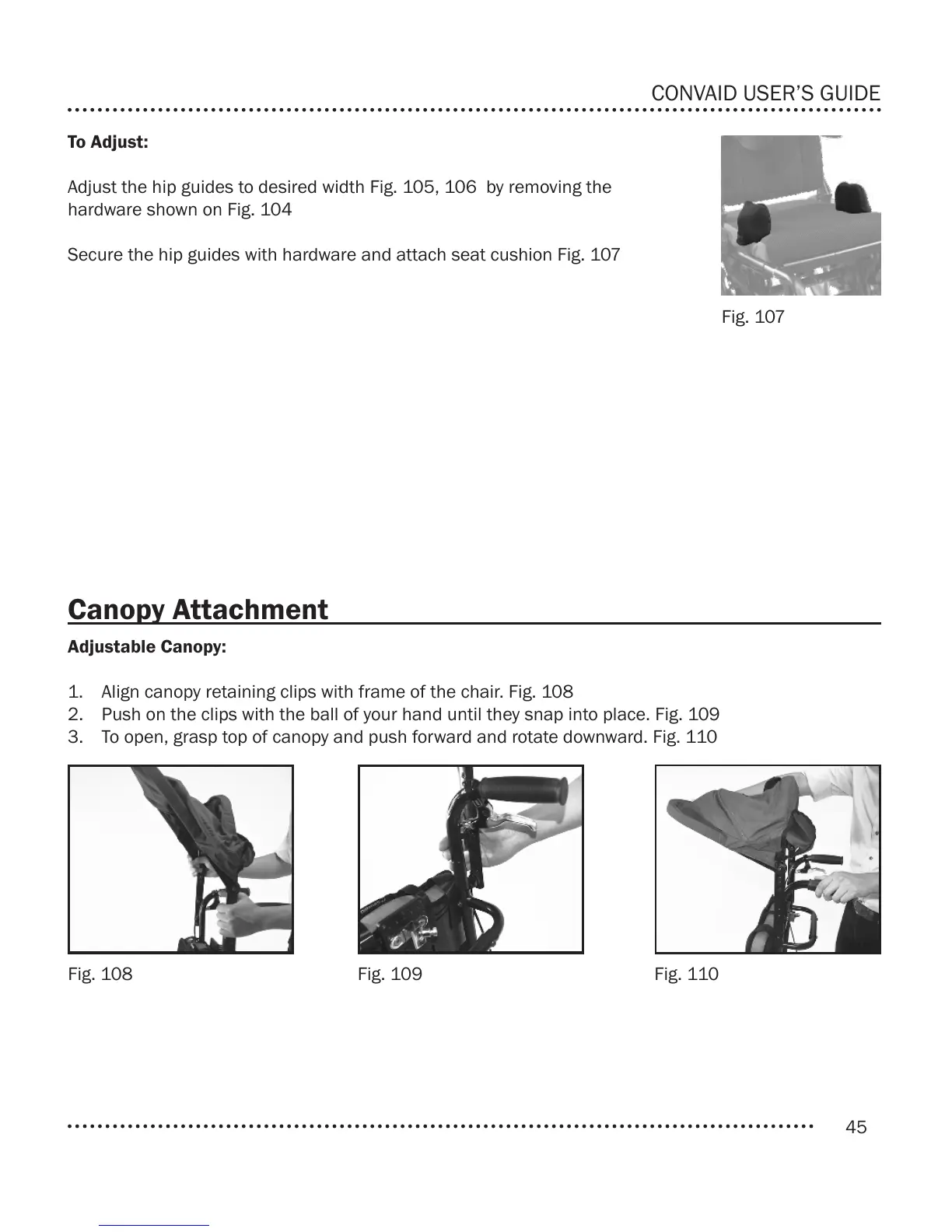

CONVAID USER’S GUIDE
Canopy Attachment
Adjustable Canopy:
1. Align canopy retaining clips with frame of the chair. Fig. 108
2. Push on the clips with the ball of your hand until they snap into place. Fig. 109
3. To open, grasp top of canopy and push forward and rotate downward. Fig. 110
Fig. 108 Fig. 109 Fig. 110
To Adjust:
Adjust the hip guides to desired width Fig. 105, 106 by removing the
hardware shown on Fig. 104
Secure the hip guides with hardware and attach seat cushion Fig. 107
Fig. 107
