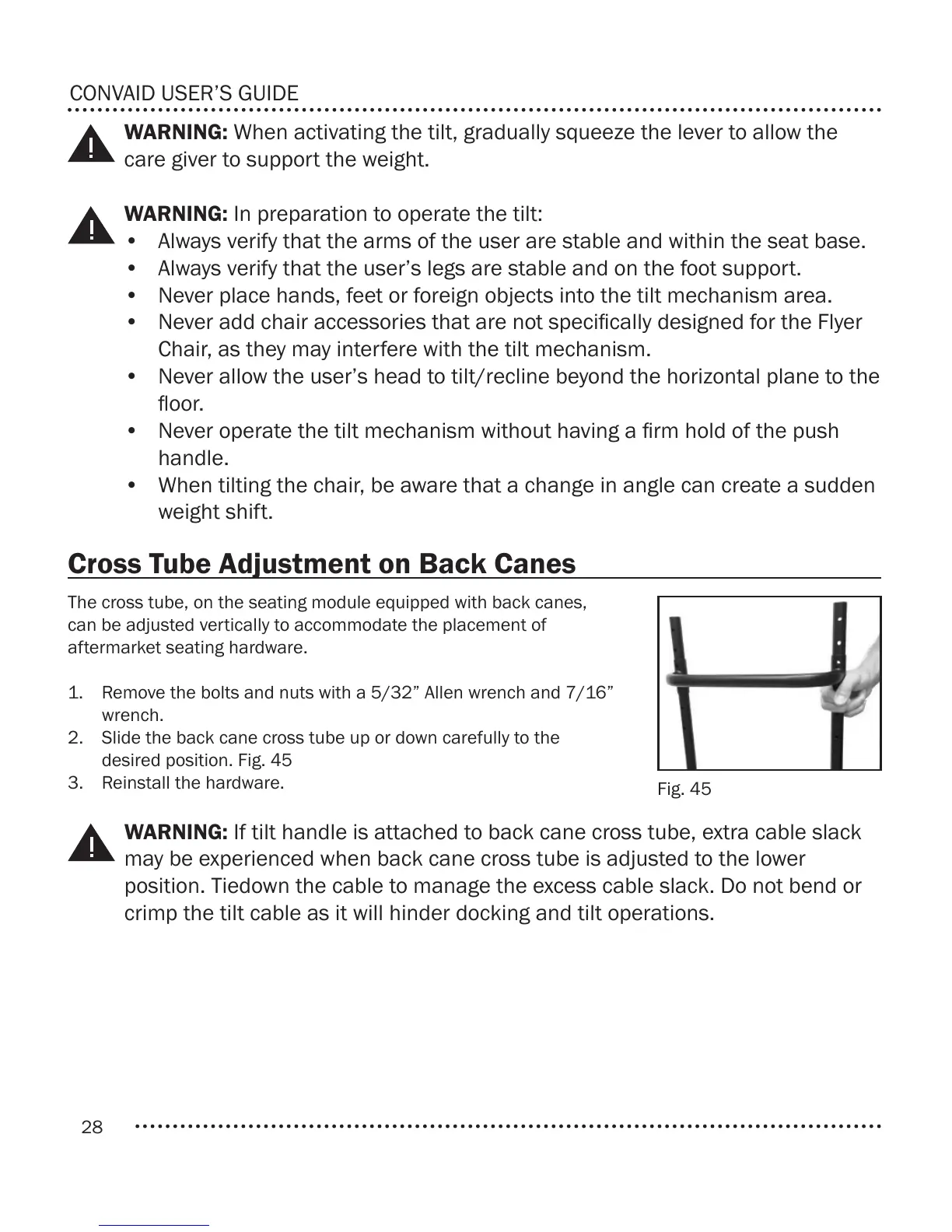

CONVAID USER’S GUIDE
WARNING: When activating the tilt, gradually squeeze the lever to allow the
care giver to support the weight.
WARNING: In preparation to operate the tilt:
• Always verify that the arms of the user are stable and within the seat base.
• Always verify that the user’s legs are stable and on the foot support.
• Never place hands, feet or foreign objects into the tilt mechanism area.
• Never add chair accessories that are not specically designed for the Flyer
Chair, as they may interfere with the tilt mechanism.
• Never allow the user’s head to tilt/recline beyond the horizontal plane to the
oor.
• Never operate the tilt mechanism without having a rm hold of the push
handle.
• When tilting the chair, be aware that a change in angle can create a sudden
weight shift.
Cross Tube Adjustment on Back Canes
The cross tube, on the seating module equipped with back canes,
can be adjusted vertically to accommodate the placement of
aftermarket seating hardware.
1. Remove the bolts and nuts with a 5/32” Allen wrench and 7/16”
wrench.
2. Slide the back cane cross tube up or down carefully to the
desired position. Fig. 45
3. Reinstall the hardware.
WARNING: If tilt handle is attached to back cane cross tube, extra cable slack
may be experienced when back cane cross tube is adjusted to the lower
position. Tiedown the cable to manage the excess cable slack. Do not bend or
crimp the tilt cable as it will hinder docking and tilt operations.
Fig. 45
