Recline Adjustment
WARNING: Engage the wheel locks prior to adjusting recline angle.
WARNING: Check to conrm that recline lock pins are fully engaged prior to
use. This indicates that the recline position is locked.
WARNING: Keep ngers free of recline mechanism.
WARNING: Never allow the user’s head to tilt/recline beyond the horizontal
plane to the oor.
Note: Recline Angle can also be referred to as seat-to-back angle or back angle
adjustment.

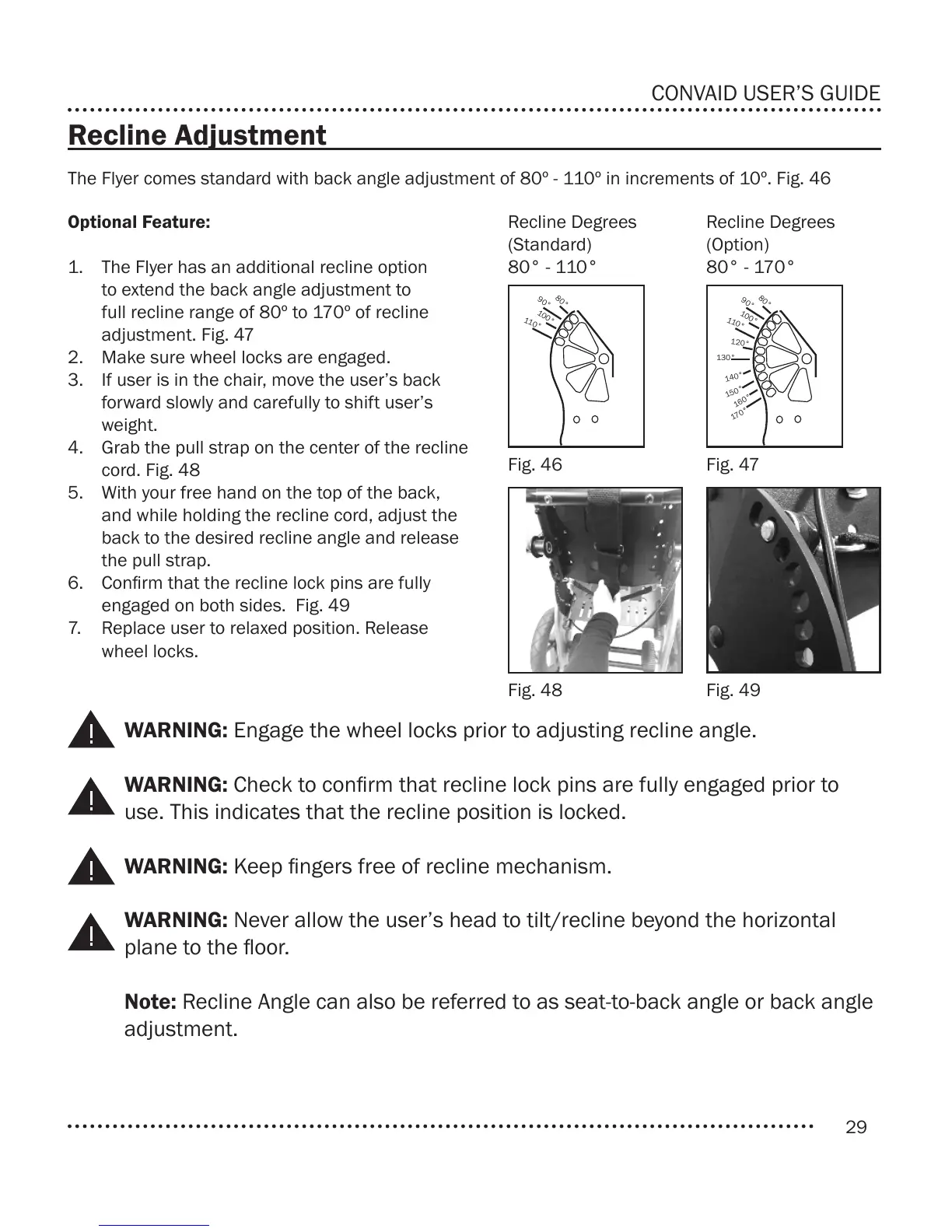

Fig. 48 Fig. 49
The Flyer comes standard with back angle adjustment of 80º - 110º in increments of 10º. Fig. 46
Optional Feature:
1. The Flyer has an additional recline option
to extend the back angle adjustment to
full recline range of 80º to 170º of recline
adjustment. Fig. 47
2. Make sure wheel locks are engaged.
3. If user is in the chair, move the user’s back
forward slowly and carefully to shift user’s
weight.
4. Grab the pull strap on the center of the recline
cord. Fig. 48
5. With your free hand on the top of the back,
and while holding the recline cord, adjust the
back to the desired recline angle and release
the pull strap.
6. Conrm that the recline lock pins are fully
engaged on both sides. Fig. 49
7. Replace user to relaxed position. Release
wheel locks.
110
°
1
00°
90°
80°
1
70°
1
60°
150°
1
40°
130°
120°
1
10
°
100°
90°
80°
Fig. 46 Fig. 47
Recline Degrees
(Standard)
80° - 110°
Recline Degrees
(Option)
80° - 170°
