17

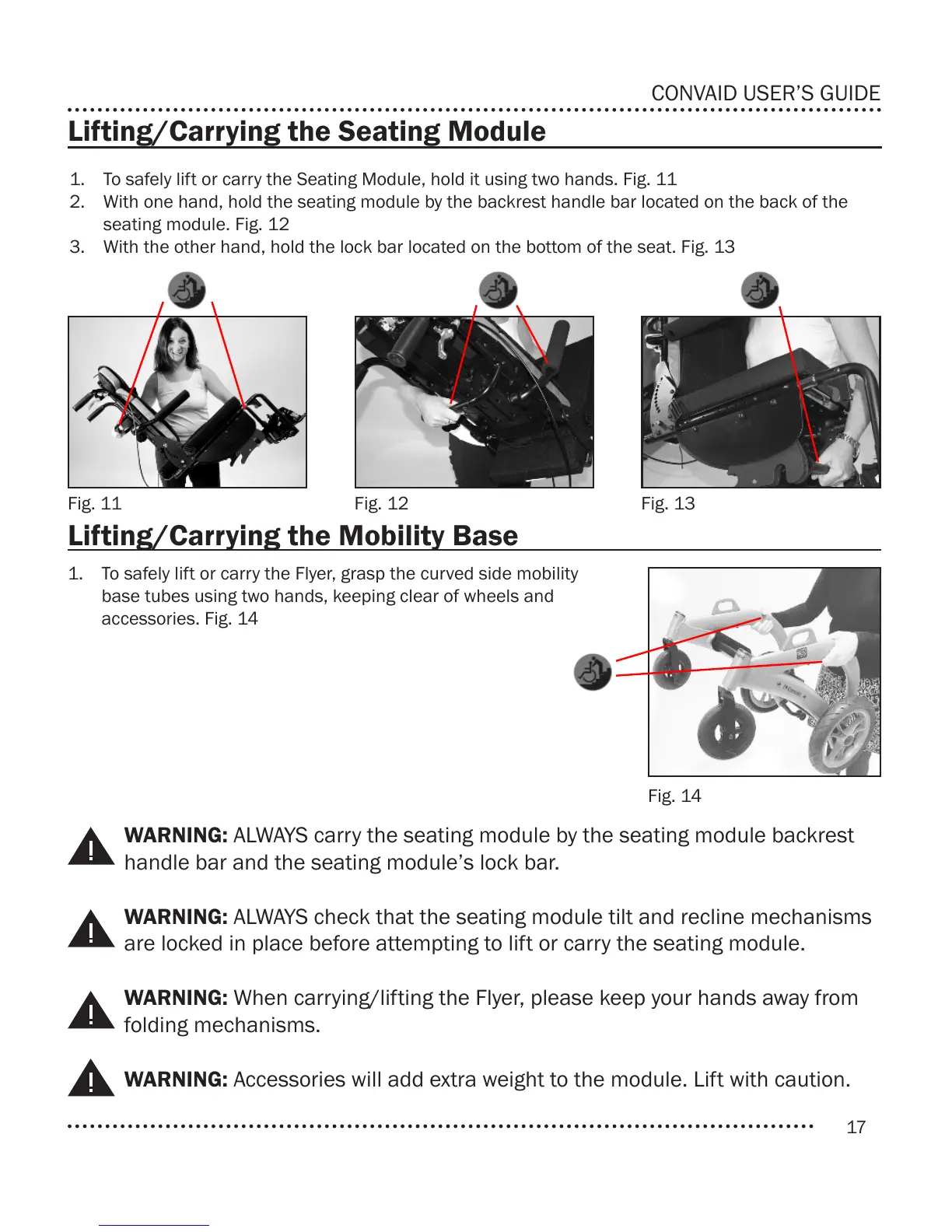

CONVAID USER’S GUIDE
Lifting/Carrying the Mobility Base
1. To safely lift or carry the Flyer, grasp the curved side mobility
base tubes using two hands, keeping clear of wheels and
accessories. Fig. 14
Fig. 14
WARNING: ALWAYS carry the seating module by the seating module backrest
handle bar and the seating module’s lock bar.
WARNING: ALWAYS check that the seating module tilt and recline mechanisms
are locked in place before attempting to lift or carry the seating module.
WARNING: When carrying/lifting the Flyer, please keep your hands away from
folding mechanisms.
WARNING: Accessories will add extra weight to the module. Lift with caution.
Lifting/Carrying the Seating Module
1. To safely lift or carry the Seating Module, hold it using two hands. Fig. 11
2. With one hand, hold the seating module by the backrest handle bar located on the back of the
seating module. Fig. 12
3. With the other hand, hold the lock bar located on the bottom of the seat. Fig. 13
Fig. 11 Fig. 12 Fig. 13
