16

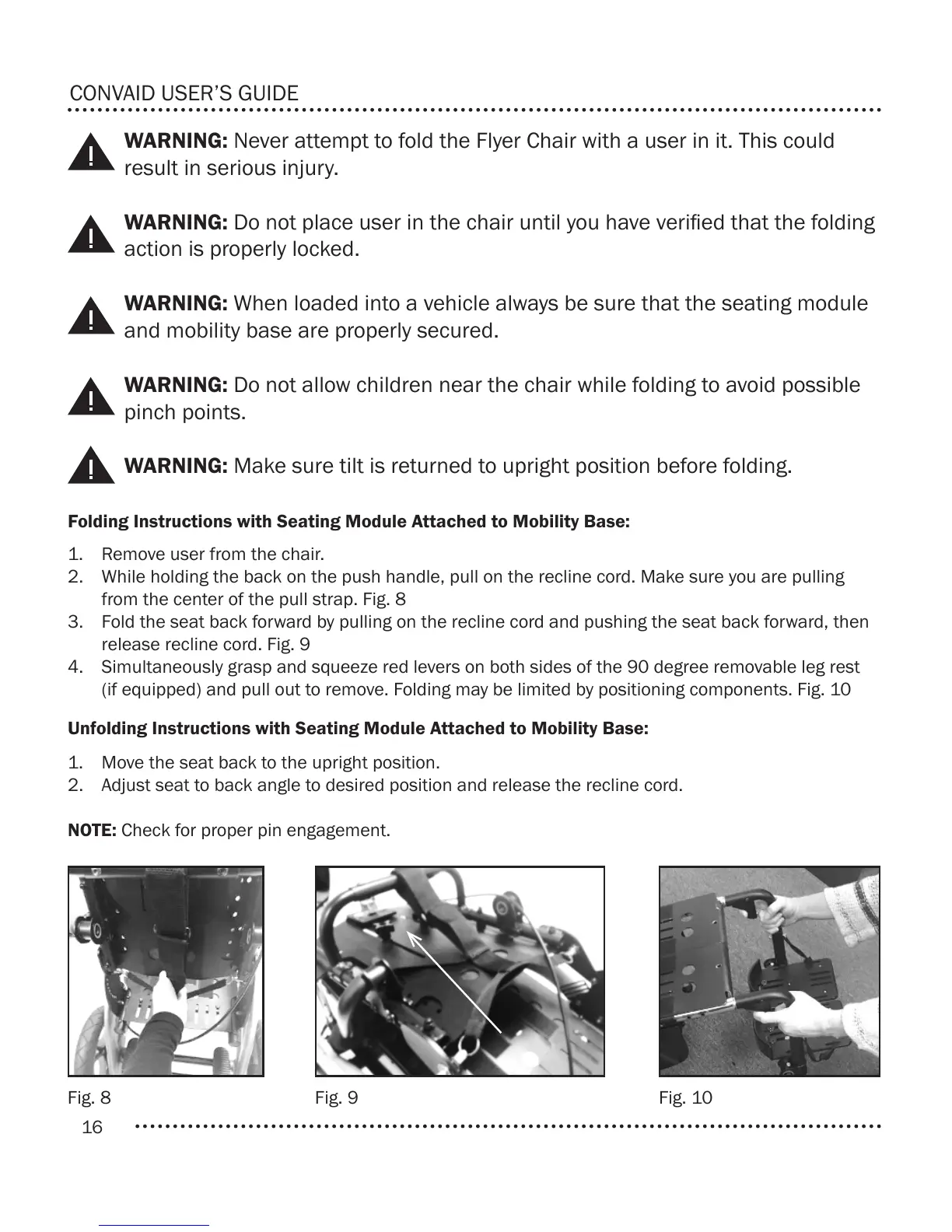

CONVAID USER’S GUIDE
1. Remove user from the chair.
2. While holding the back on the push handle, pull on the recline cord. Make sure you are pulling
from the center of the pull strap. Fig. 8
3. Fold the seat back forward by pulling on the recline cord and pushing the seat back forward, then
release recline cord. Fig. 9
4. Simultaneously grasp and squeeze red levers on both sides of the 90 degree removable leg rest
(if equipped) and pull out to remove. Folding may be limited by positioning components. Fig. 10
1. Move the seat back to the upright position.
2. Adjust seat to back angle to desired position and release the recline cord.
NOTE: Check for proper pin engagement.
Folding Instructions with Seating Module Attached to Mobility Base:
Unfolding Instructions with Seating Module Attached to Mobility Base:
Fig. 8 Fig. 9 Fig. 10
WARNING: Never attempt to fold the Flyer Chair with a user in it. This could
result in serious injury.
WARNING: Do not place user in the chair until you have veried that the folding
action is properly locked.
WARNING: When loaded into a vehicle always be sure that the seating module
and mobility base are properly secured.
WARNING: Do not allow children near the chair while folding to avoid possible
pinch points.
WARNING: Make sure tilt is returned to upright position before folding.
