CONVAID USER’S GUIDE
Elevating Leg Rest
To Adjust Height:
1. Place your hand on the grey button located at the knee joint.
Fig. 118
2. Press the grey button to adjust lower extremity to desired
angle and release button.
Fig. 118

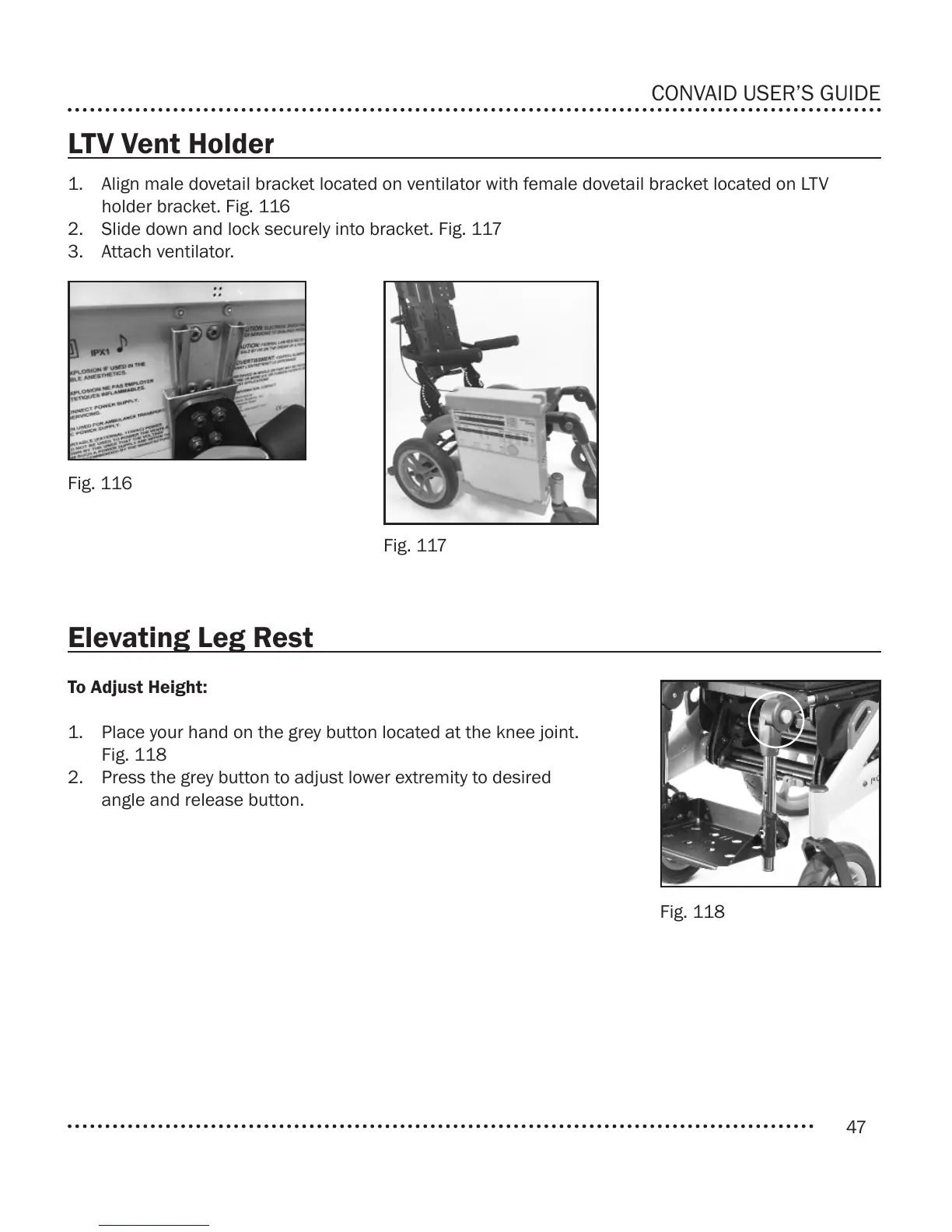

LTV Vent Holder
1. Align male dovetail bracket located on ventilator with female dovetail bracket located on LTV
holder bracket. Fig. 116
2. Slide down and lock securely into bracket. Fig. 117
3. Attach ventilator.
Fig. 116
Fig. 117
