CONVAID USER’S GUIDE
Hip Guide Width
Model Size Width Range
12 9"-12"
13 10"-13"
14 11"-14"
15 12"-15"
16 13"-16"
Min width range
Fig. 105
Max width range
Fig. 106
To Install:
To install hip guides remove cushion and existing socket button head bolt on the top of the seat pan
and by unscrewing the nylon capped locknut on the bottom of the seat pan by using a 5/32” allen
wrench and 7/16” wrench.

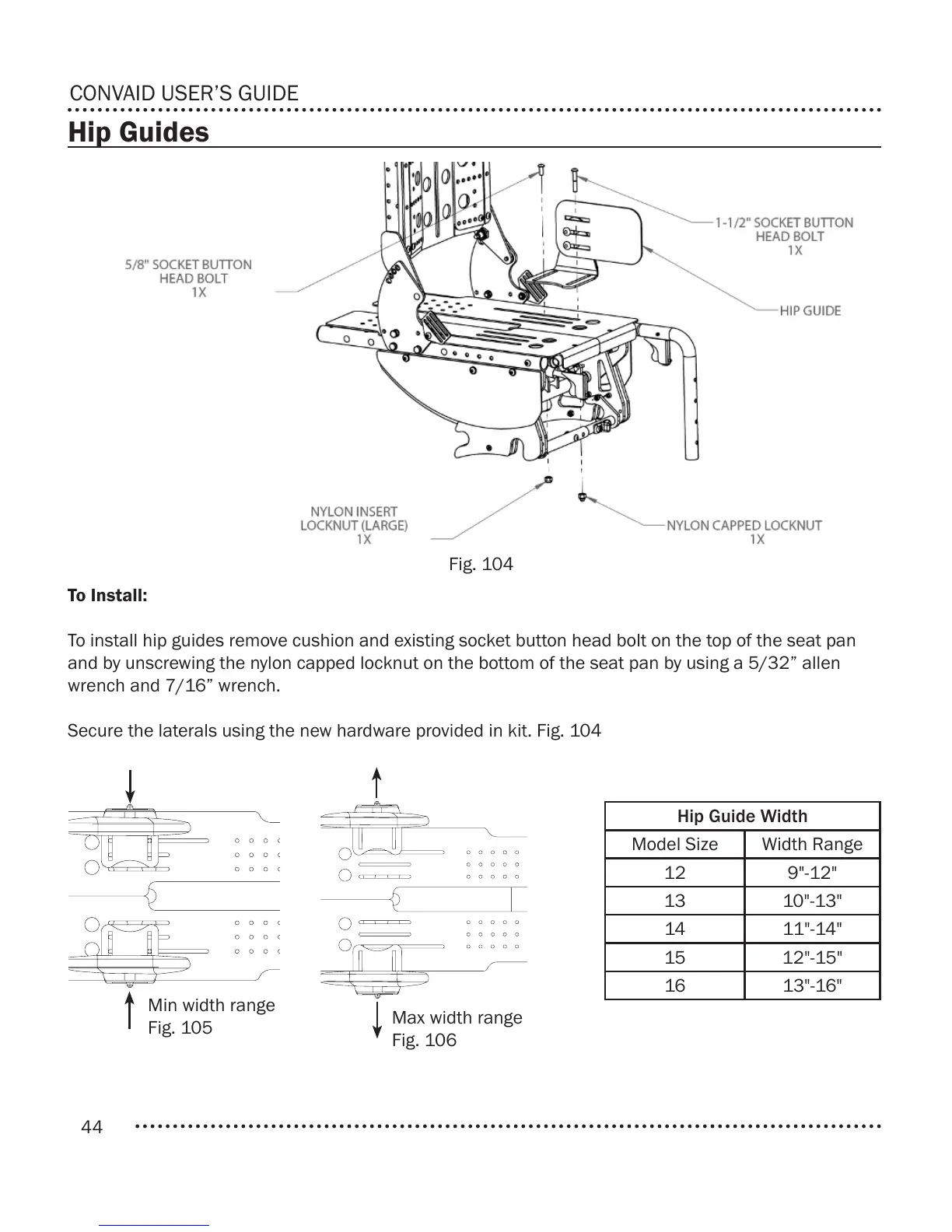

Secure the laterals using the new hardware provided in kit. Fig. 104
Fig. 104
Hip Guides
