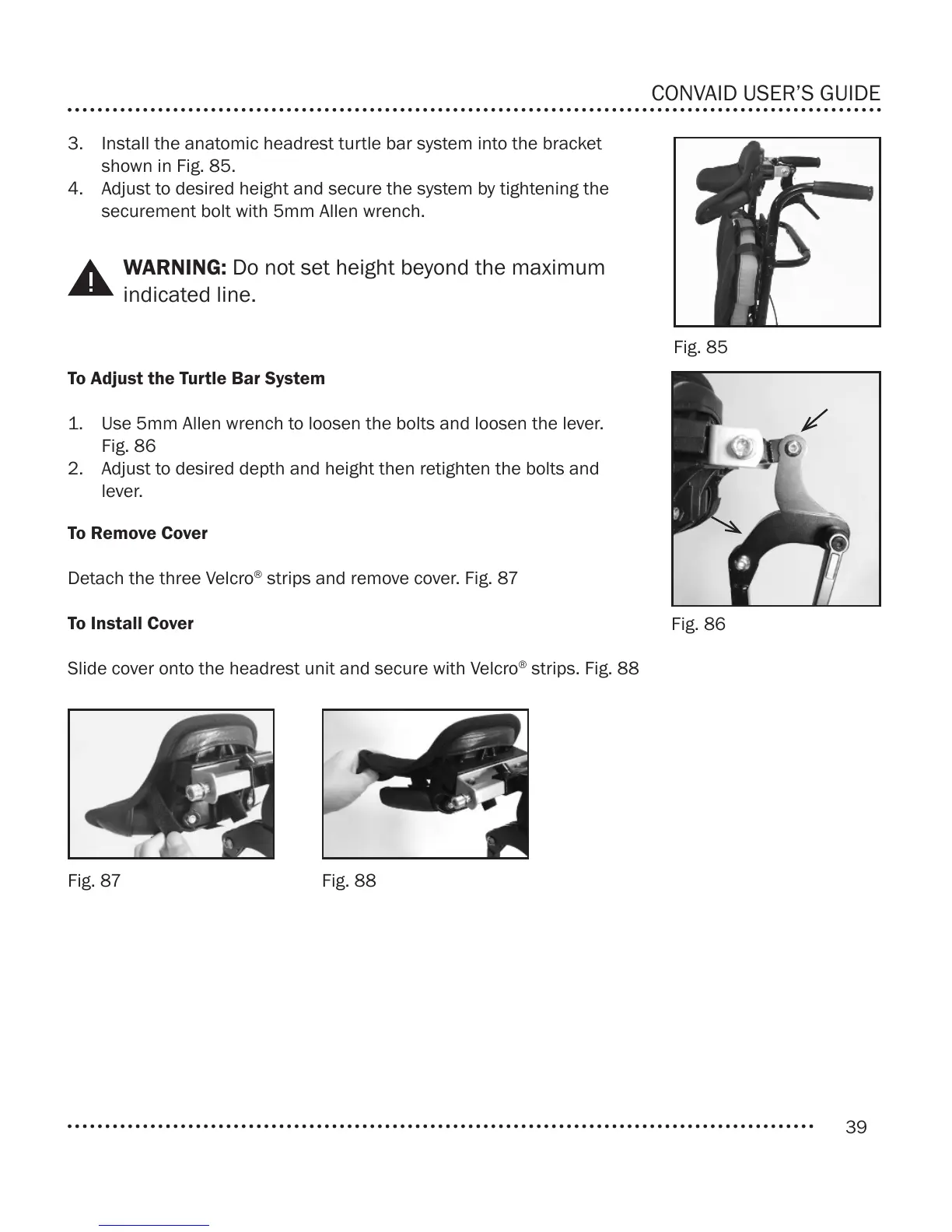

Fig. 85
WARNING: Do not set height beyond the maximum
indicated line.
3. Install the anatomic headrest turtle bar system into the bracket
shown in Fig. 85.
4. Adjust to desired height and secure the system by tightening the
securement bolt with 5mm Allen wrench.
To Adjust the Turtle Bar System
1. Use 5mm Allen wrench to loosen the bolts and loosen the lever.
Fig. 86
2. Adjust to desired depth and height then retighten the bolts and
lever.
To Remove Cover
Detach the three Velcro
®
strips and remove cover. Fig. 87
To Install Cover
Slide cover onto the headrest unit and secure with Velcro
®
strips. Fig. 88
Fig. 86
Fig. 87 Fig. 88
