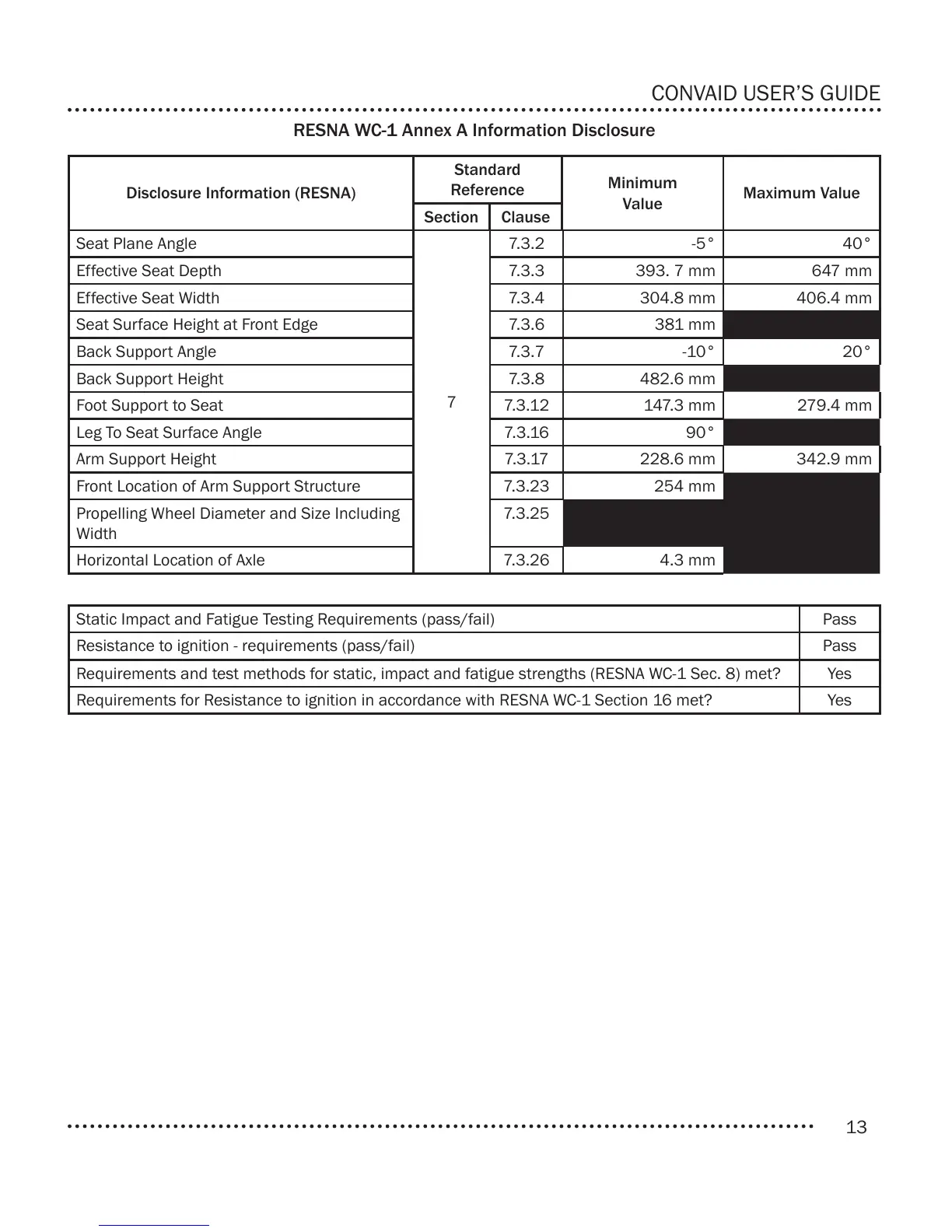

CONVAID USER’S GUIDE
RESNA WC-1 Annex A Information Disclosure
Disclosure Information (RESNA)
Standard
Reference
Minimum
Value
Maximum Value
Section Clause
Seat Plane Angle
7
7.3.2 -5° 40°
Effective Seat Depth 7.3.3 393. 7 mm 647 mm
Effective Seat Width 7.3.4 304.8 mm 406.4 mm
Seat Surface Height at Front Edge 7.3.6 381 mm
Back Support Angle 7.3.7 -10° 20°
Back Support Height 7.3.8 482.6 mm
Foot Support to Seat 7.3.12 147.3 mm 279.4 mm
Leg To Seat Surface Angle 7.3.16 90°
Arm Support Height 7.3.17 228.6 mm 342.9 mm
Front Location of Arm Support Structure 7.3.23 254 mm
Propelling Wheel Diameter and Size Including
Width
7.3.25
Horizontal Location of Axle 7.3.26 4.3 mm
Static Impact and Fatigue Testing Requirements (pass/fail) Pass
Resistance to ignition - requirements (pass/fail) Pass
Requirements and test methods for static, impact and fatigue strengths (RESNA WC-1 Sec. 8) met? Yes
Requirements for Resistance to ignition in accordance with RESNA WC-1 Section 16 met? Yes
