Crestron CP4-R User Manual

Product Manual – DOC. 8432A Crestron Pyng OS 2 for CP4-R • 213
Appendix C: Create and Upload a Custom
Device Driver
Custom device drivers expand the functionality of the Crestron Pyng system by allowing
additional third party devices to be paired with the system. Use the Device Learner tool
in Crestron Toolbox to create driver files that may be loaded directly into the CP4-R.
Device controls are mapped from the driver file to buttons on Crestron remote controls
and user interface control pages.

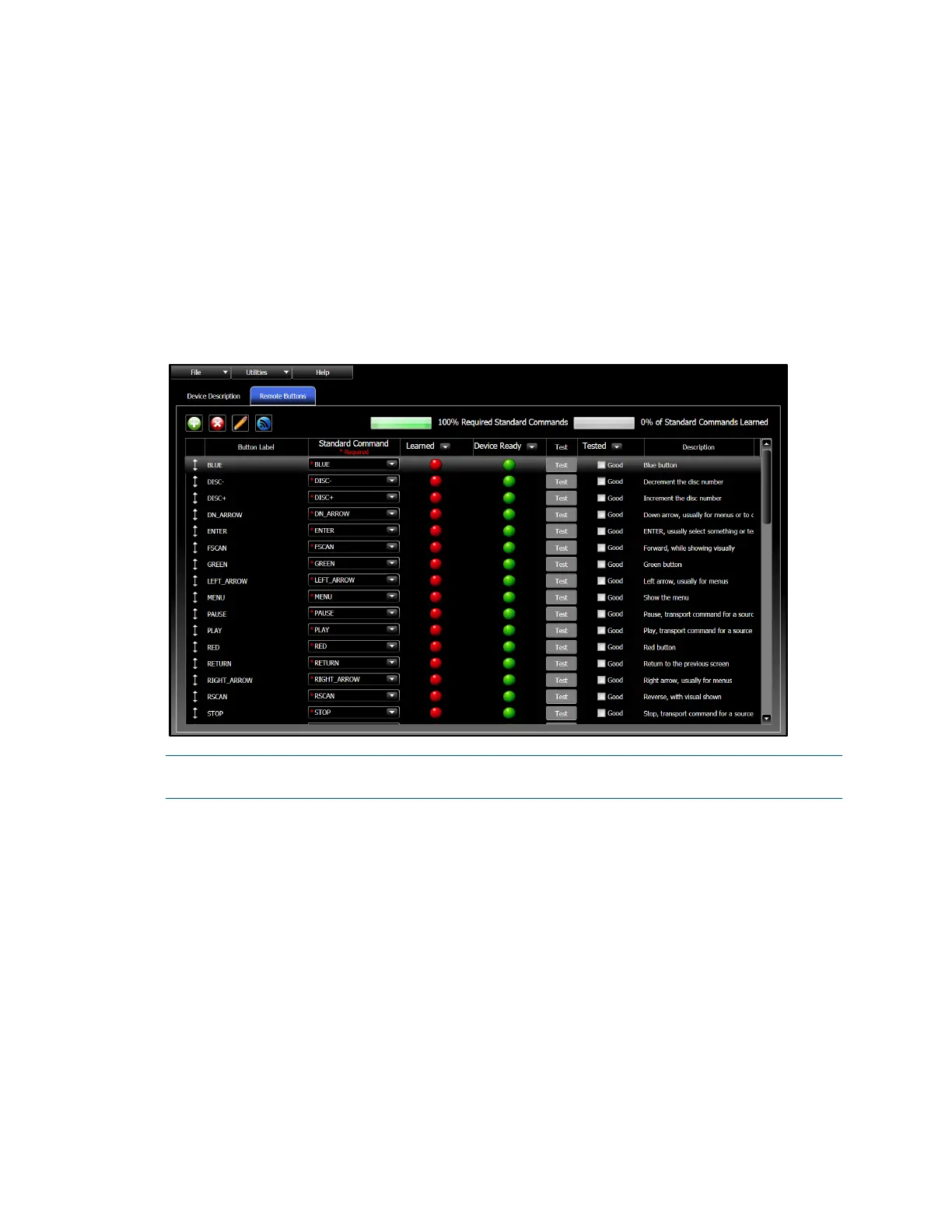

Device Learner Tool - Remote Buttons Tab
NOTE: For more information on using the Device Learner tool to create device drivers,
refer to the embedded Crestron Toolbox help file.
Refer to the following tables for each supported device class when mapping buttons to
device controls.
Each button mapping table (except for remote controls) includes the following
information:
• Button: A button used by the device class that may be mapped to a command
• Pyng Command: The command that is sent from the Crestron Pyng system to
the device when the button is activated
• Driver Command: The command that is sent from the device driver to the device
when the button is activated
• Standard Command: The standard command that is associated with the button
in the Device Learner tool
