160 • Crestron Pyng OS 2 for CP4-R Product Manual – DOC. 8432A
Tap Add/Remove Loads to add shade groups from different rooms or to remove
existing shade groups. An
Add/Remove Loads dialog box is displayed.

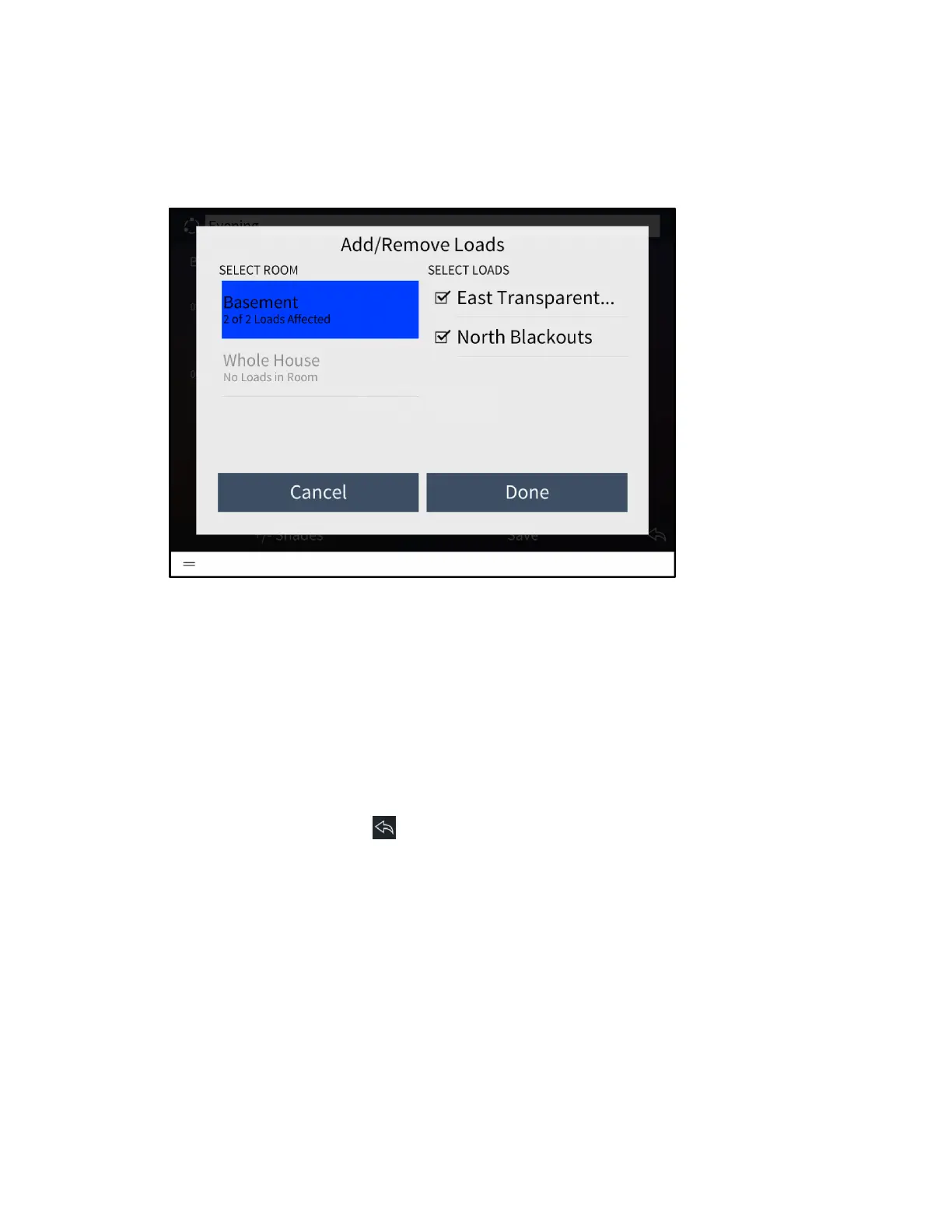

Add/Remove Loads Dialog Box
To add or remove a shade group from the scene:
1. Select a room from the Select Room menu.
2. Tap the check box next to a shade group to add or remove it from the scene. A
filled check box indicates that the shade group has been added to the scene.
3. Tap Done to save any changes or Cancel to discard the changes.
Any shade groups added to the scene may be adjusted in the scene configuration dialog
box.
Once all changes have been made, tap Save to save any changes to the shade scene or
tap
the back arrow button to discard the changes.
Configure a User Shade Scene
To configure an existing shade scene:
1. Select a room from the drop-down menu on the top left of the screen.
2. Tap Add/Edit Scenes. All shade scenes configured for the room are displayed.
