48 • Crestron Pyng OS 2 for CP4-R Product Manual – DOC. 8432A
Configure Source Routes
To configure source routing behavior for a media device:
1. Select a room from the left screen menu.
2. Select a media device from the provided options. The input and output channels
for the media device are displayed, as well as any device ports that have been
assigned to a channel.

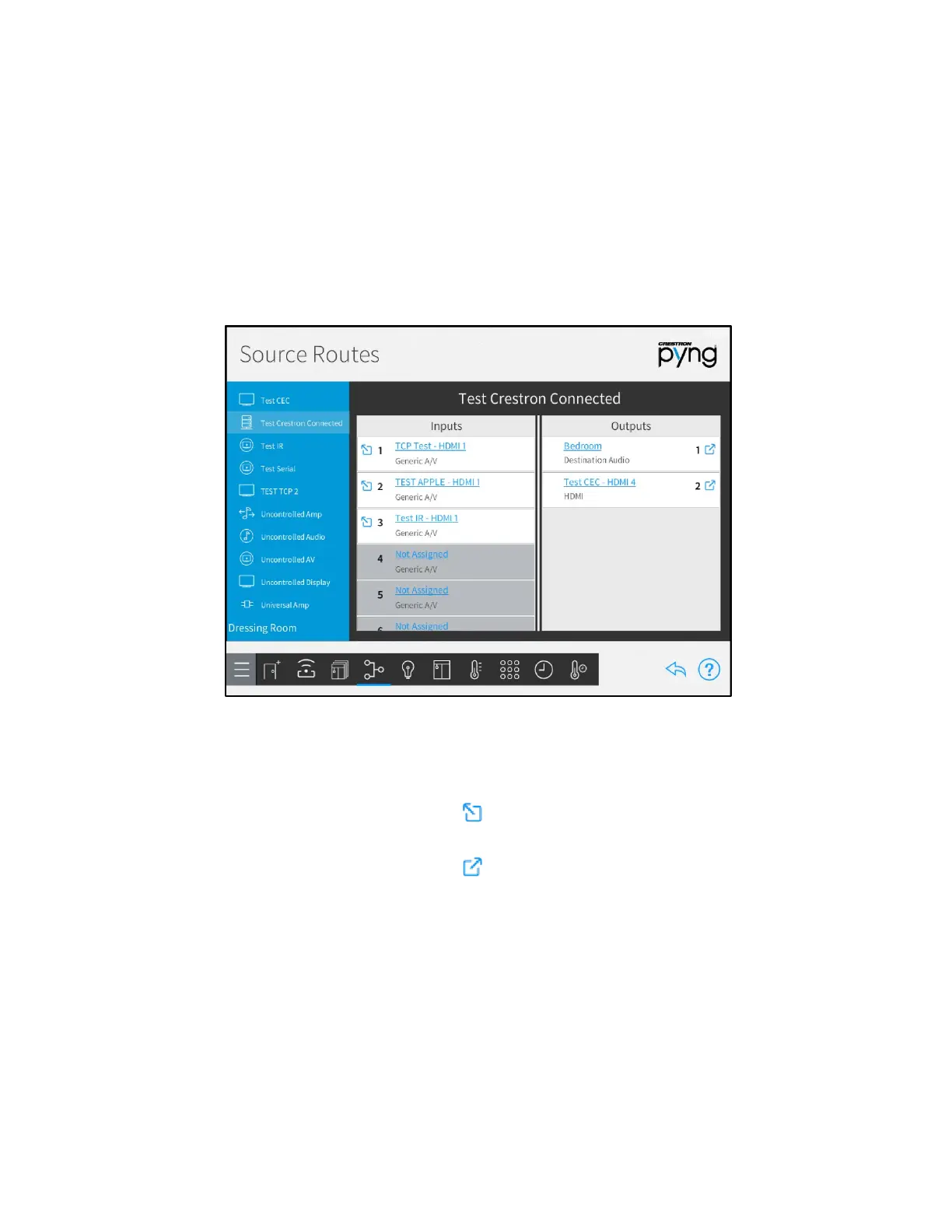

Source Routes Screen - Test Crestron Connected
The following source routing options may be configured:
• Tap on an input or output channel to assign an available media device port to the
selected channel.
• Tap the diagonal arrow button to the left of an input channel name to
navigate to the input device's source routing selections.
• Tap the diagonal arrow button to the right of an output channel name to
navigate to the output device's source routing selections.
