Device components and controls
LD500 V2.03 Seite 10 von 67

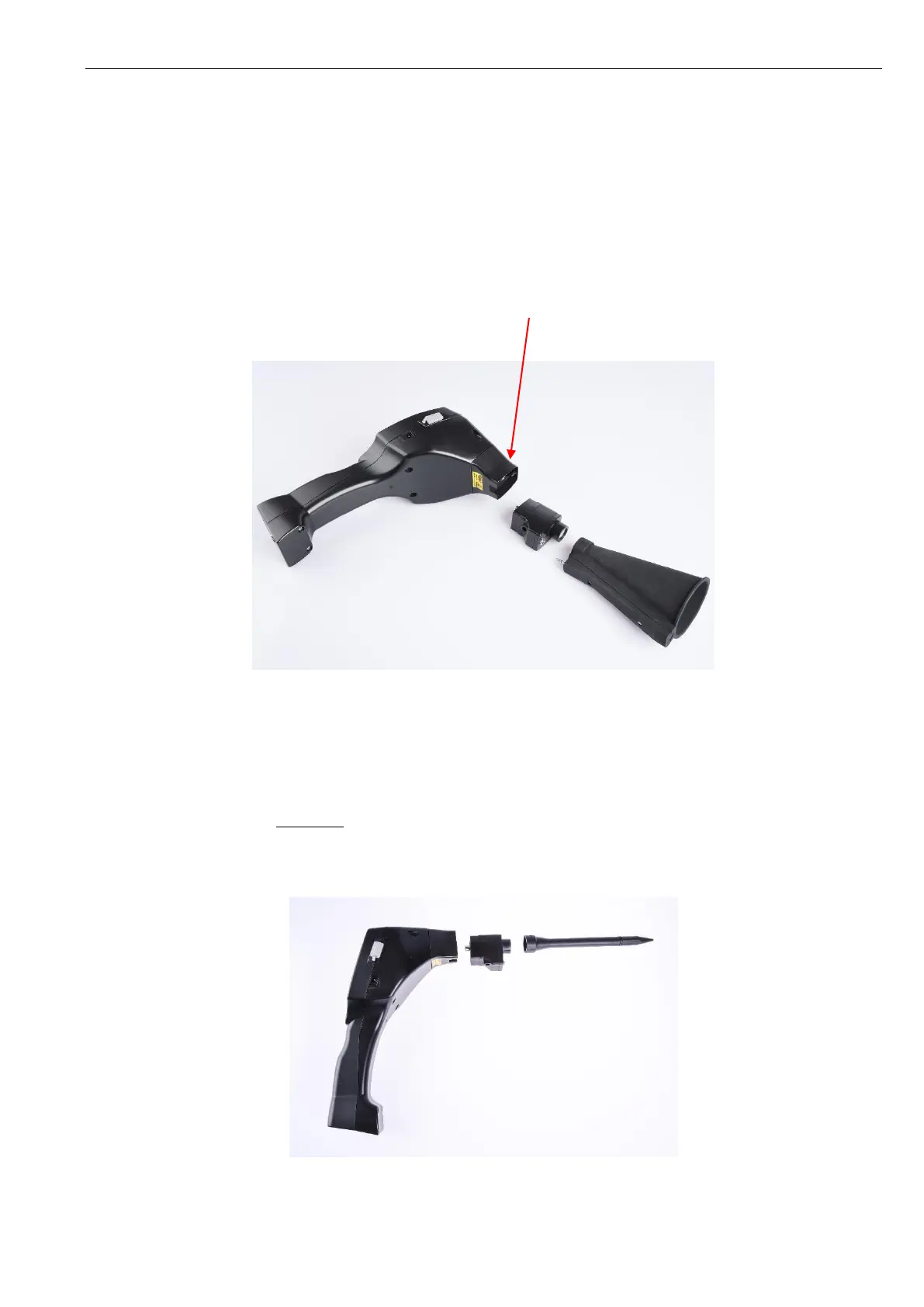

9.1 Assembly with acoustic trumpet
The acoustic trumpet allows acoustic amplification by bundling the sound waves and specifies the
location of the leak. Due to the special construction of the integrated laser pointer is still usable. The
camera is integrated on the bottom of the acoustic trumpet and is electrically connected to the
preamplifier module via the jack plug.
Assembling is done by plugging the individual components until easy locking audible (plug in to the
stop).
The components are removed in the reverse order; for unlocking the preamplifier module, the release
button must also be pressed.
9.2 Assembly with focus tube with focus tip
The focus tube with focus tip is used to detect very small leaks, to accurately locate them.
Just like the acoustic trumpet, the tube can be plugged into the preamplifier with ultrasonic receiver.
The use of the camera is no longer possible.
The components are removed in the reverse order; for unlocking the preamplifier module, the release
button must also be pressed.
