Operation
LD500 V2.03 Seite 16 von 67
11.3.1 Configuration of LD500
Home ➔ Configuration
Home ➔ Configuration ➔ Parameter

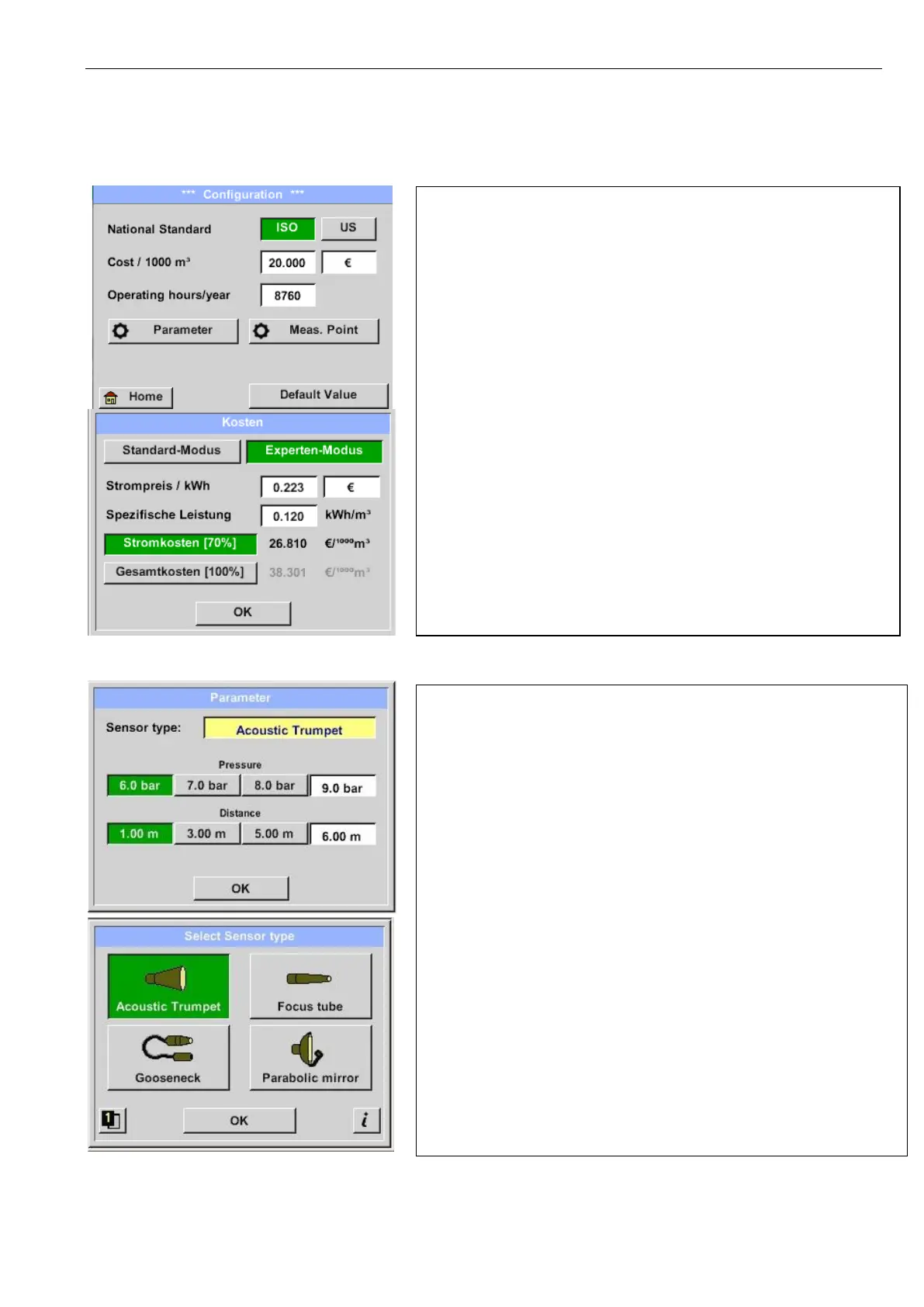

In the configuration settings the unit system can be selected and
the required parameters entered, this to calculate the leakage
costs per year.
➔ Selection of ISO or US unit system
➔ Call up the text field "Costs/ 1000 m³" to define the costs.
There are 2 variants to choose from:
• Standard: Cost per 1000 volume units
Enter cost and the currency
Default value: 19 € / 1000 m³ or
0.538€/1000cf
• Expert: Here you can see in detail the electricity
o costs / KWh and define the specific power
of the system. For the specific power 3
pre-defined asset values are created and
a user defined input field for the
individual input is made available.
➔ Enter working hours per year
➔ Sensor type
Selection of the sensor type according to the application and
ambient conditions, see therefor chapter 6.
➔ Pressure (line pressure in bar)
➔ Distance (distance to leakage in m)
Depending on the selected sensor type, there are up to 4 pre-
defined pressure and distance values that can be selected
directly as well as two fields (white) in which values for the
pressure and the distance are freely selected..
The pressure can be set variably between 1 - 10 bar.
For the different sensor types different minimum and
maximum distances from the LD500 to the leakage are
defined to calculate valid leakage loss and costs per year.
These distances must be strictly adhered to.
