Device components and controls
LD500 V2.03 Seite 11 von 67

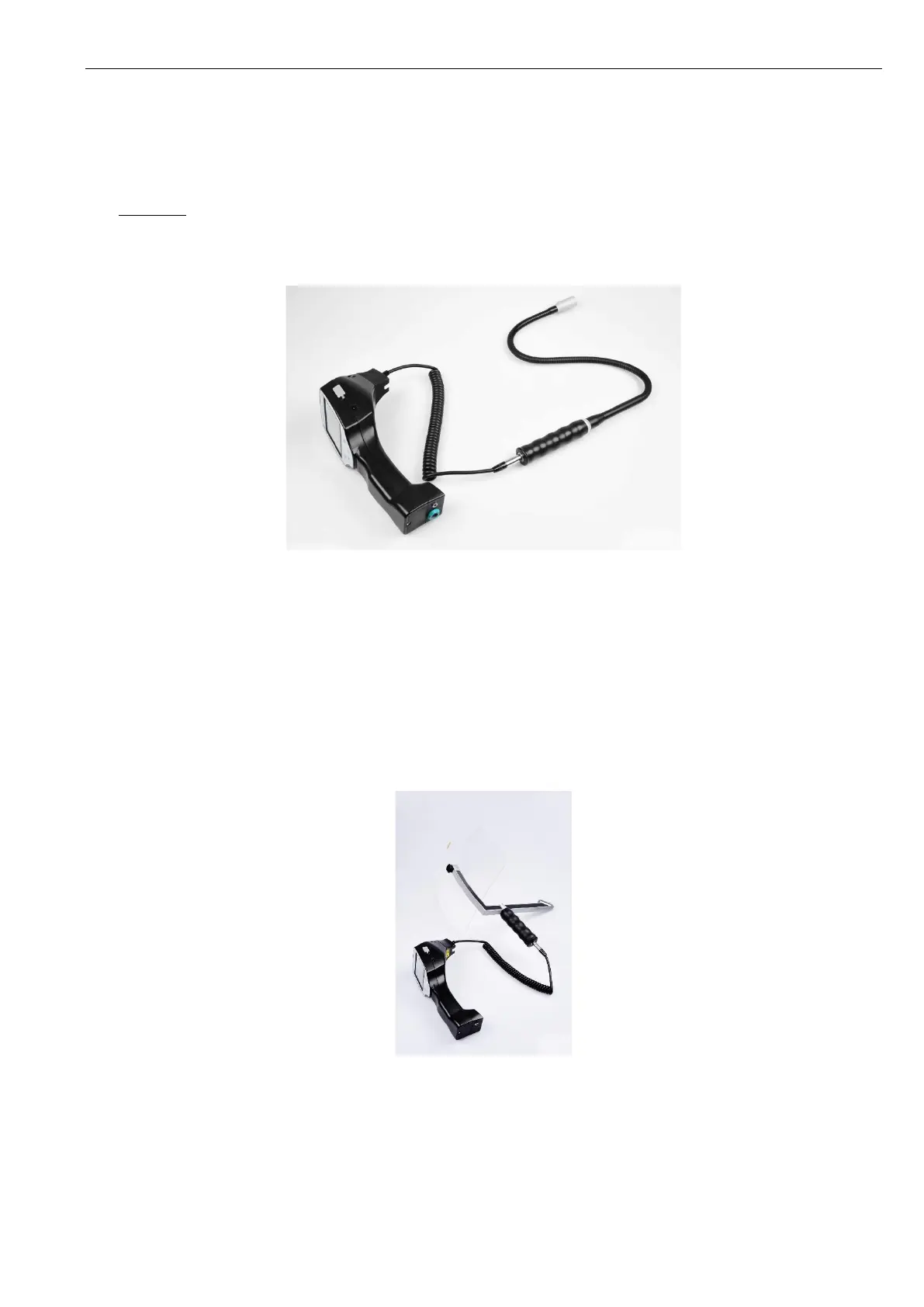

9.3 Assembly with Gosseneck
Due to its flexibility, the gooseneck tool is used for punctual measurements in hard-to-reach areas.
Connection to the LD 500 is via the supplied spiral cable, see Figure 10.
It is no longer possible to use the camera.
To remove the component, remove the connection cable by pressing the release button on both sides
and pulling off the cable.
9.4 Assembly with Parabolic mirror
The parabolic mirror is used for measurements at greater distances as well as for high requirements
regarding selectivity and location of leakage positions.
Connection to the LD 500 is via the supplied spiral cable, see Figure 11.
To remove the component, remove the connection cable by pressing the release button on both sides
and pulling off the cable.
Note: To use the parabolic mirror and gooseneck, these components must be activated in the LD 500
during initial commissioning in order to save the component-specific adjustment parameters. If
this has not already been done ex-works, the data for this is supplied via USB stick. For the
activation (parameter import), see chapter 11 Operation here in Sub chapter "Export / Import".“.
