Connection diagrams
LD500 V2.03 Seite 38 von 67
13.4 Connection diagrams for different sensor types
13.4.1 Connector pin assignment for all sensors at PI 500
The interface connector to be used is a ODU Medi Snap 8 pin – Reference: K11M07-P08LFD0-6550
.
Available connection cables at CS-Instruments are:
ODU with Open ends: Order no 0553 0501, cable length: 5 m.
Order no 0553 0502, cable length: 10 m.
ODU with M12 Connector: Order no 0553 0503, cable length: 5 m.
Extension cable (ODU/ODU): Order no 0553 0504, cable length: 10 m.

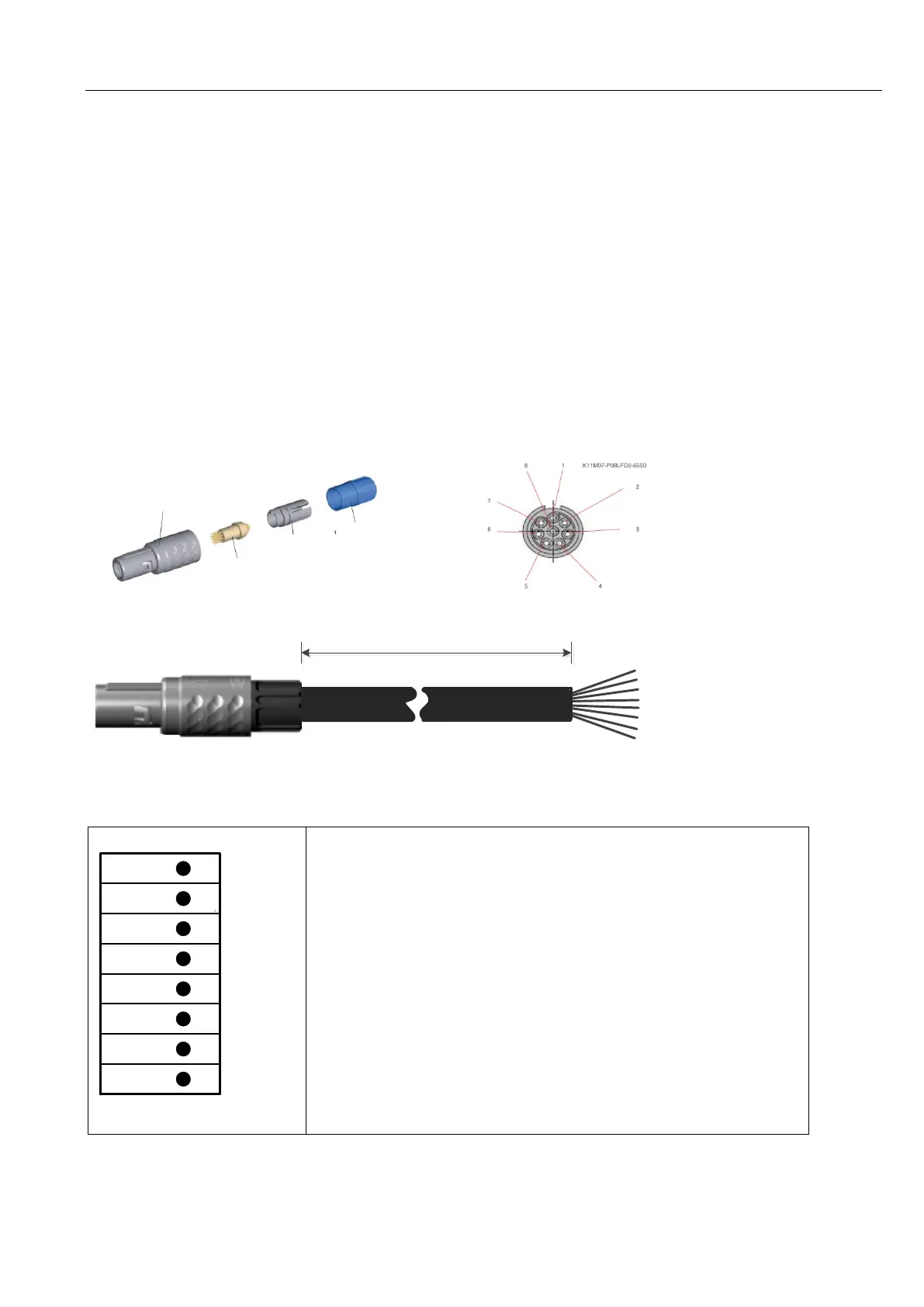

Connection scheme:
Connector housing
Plug insert
Collet
Clamping nut
View on welding pins of Medi Snap Connector
Cable lenght 5m/10 m
1
weiss white
2
braun brown
3
grün green
4
gelb yellow
5
grau grey
6
rosa pink
7
blau blue
8
rot red
I (500µA)
12345678
+ RS485
- RS485
SDI
Analog IN +
+VB 24Vdc
-VB GND
Analog IN -
+ RS485
- RS485
SDI (CS-internal data transmission for all Dew point and Flow sensor FA/ VA 400)
ANALOG IN +
ANALOG IN –)
STROMQUELLE 500 µA
+VB, 24V DC Power supply for sensor
-VB, GND Sensor
White
Brown
Green
Yellow
Grey
Pink
Blue
Red
