Operation
LD500 V2.03 Seite 14 von 67
11.2 Screen Leckage

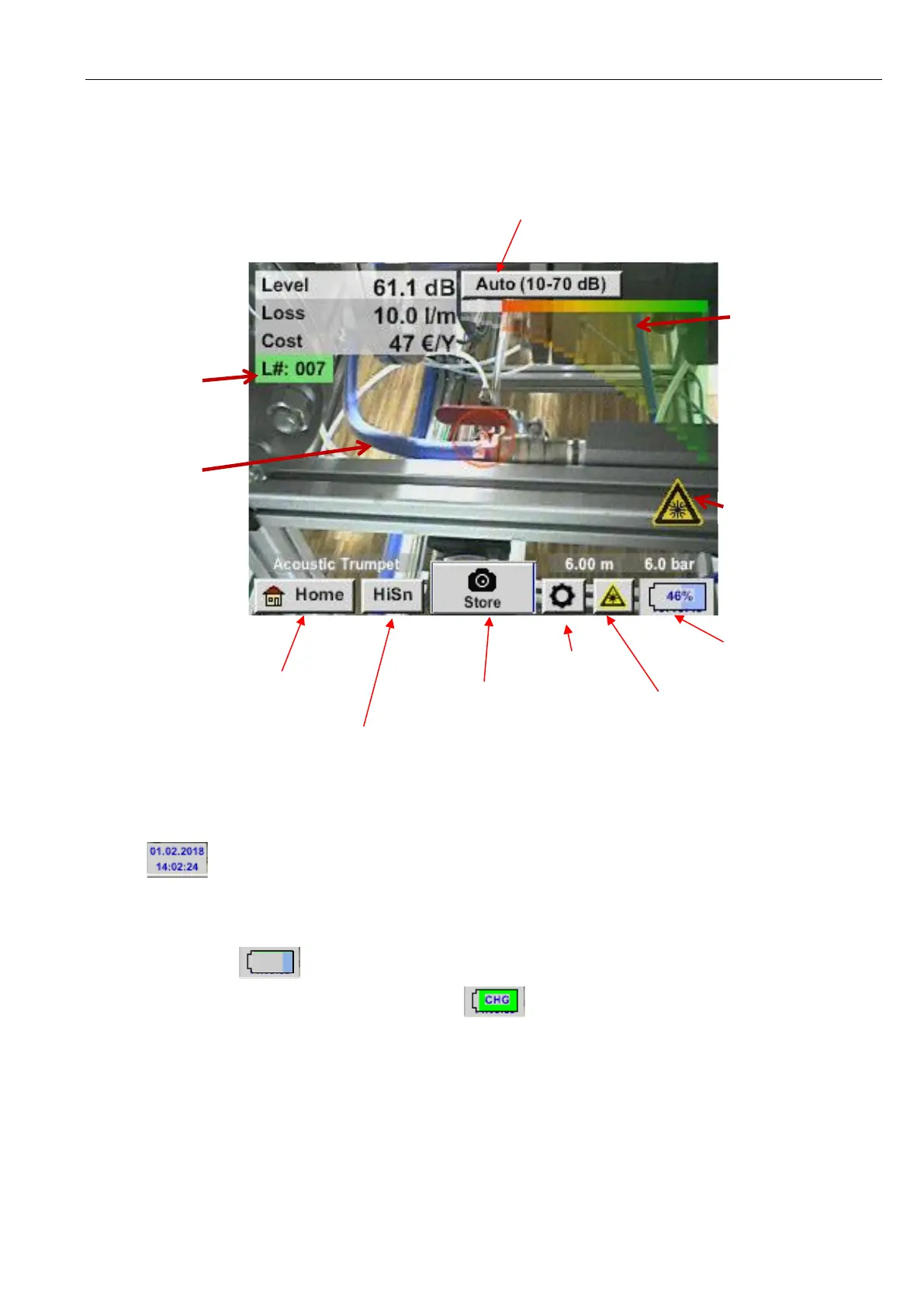

The following picture shows and describes the display elements.
Date / Time:
Battery condtion indicator
Battery condition:
22%
Power supply connected and battery is charging:
Displayed values for:
• Signal-Level in dB
• Leakage size
• Leakage costs per year
Laser „On“ Icon
Date/ Time and battery
condition indicator
Bar graph of Signal level
LeakTag number
Actual camera image
Laser „On/Off“ button
Setting button
Store button for
Measurement
Mode switch button
Auto or manual (HiSn)
Sensivity level button
Home Menu
button
