Operation
LD500 V2.03 Seite 18 von 67

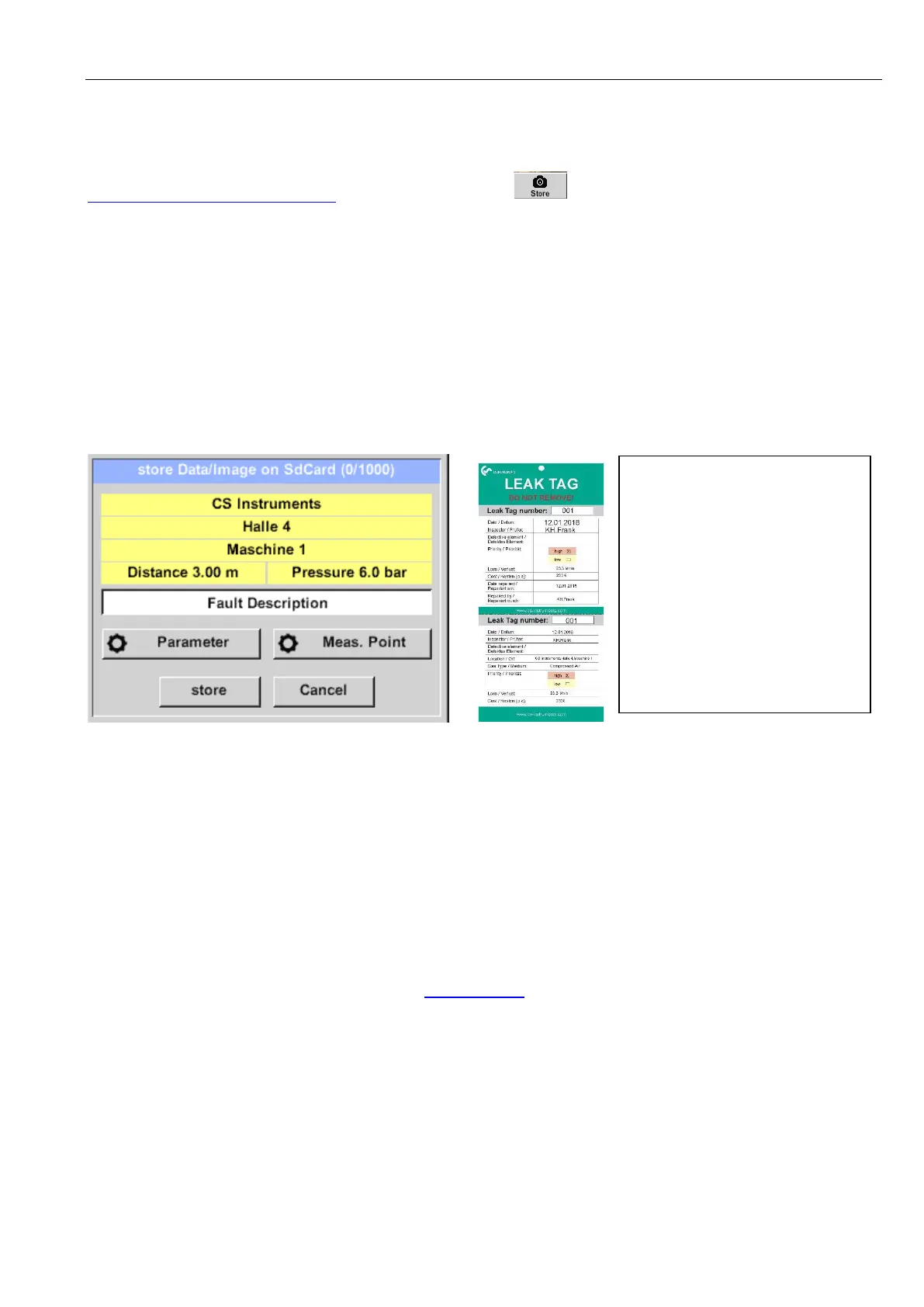

11.3.1.2 Storing of the measurement
To store the measurements please press either the button „Store“ on the foil keypad, see chapter
Device components and controls , or by button „Store“ in the display.
All data are stored on to the internal SD card.
The measurement data, the measurement point and the image of the measurement point are saved as a
journal, which can be exported later and a report can be created with the CS Leak Reporter (order no.:
0554 0105).
After pressing one of the two „Store“ keys, the corresponding information for the measuring point must
be completed. The measuring point information of the last stored storage (company, building and
location) is displayed, the numbering of the leaking tag is increased by 1.
e.g .:
11.3.1.3 Parameter / Meas. Point (Re-Check)
Store ➔ Parameter
Store ➔ Meas. Point
At this point, it is again possible to check and correct the parameters „Pressure" and „Distance" and the
measuring point.
Changing the parameters gives new values for leakage and cost.
Execution of the corrections see description chapter 9.3.1
If necessary, fill out the Leak
Tag-form and attach it to the
measuring location.
Please use correct Leak Tag-
number.
