13.5 Dew Point Sensor FA 500 / FA 510 (RS 485 Modbus)
First step: choose an unused sensor digital channel
External sensor ➔ Settings ➔ Sensor settings ➔ C1
Second step: choose type FA 5xx
External sensor➔Settings➔ Sensor settings ➔ C1 ➔ description field ➔ Dew Point →FA 5xx
External sensor ➔ Settings ➔ Sensor settings ➔ C1 → text field “Name”
Now the Type FA 5xx is to be selected for
the FA 5xx series and confirmed by
pressing the “OK” button.

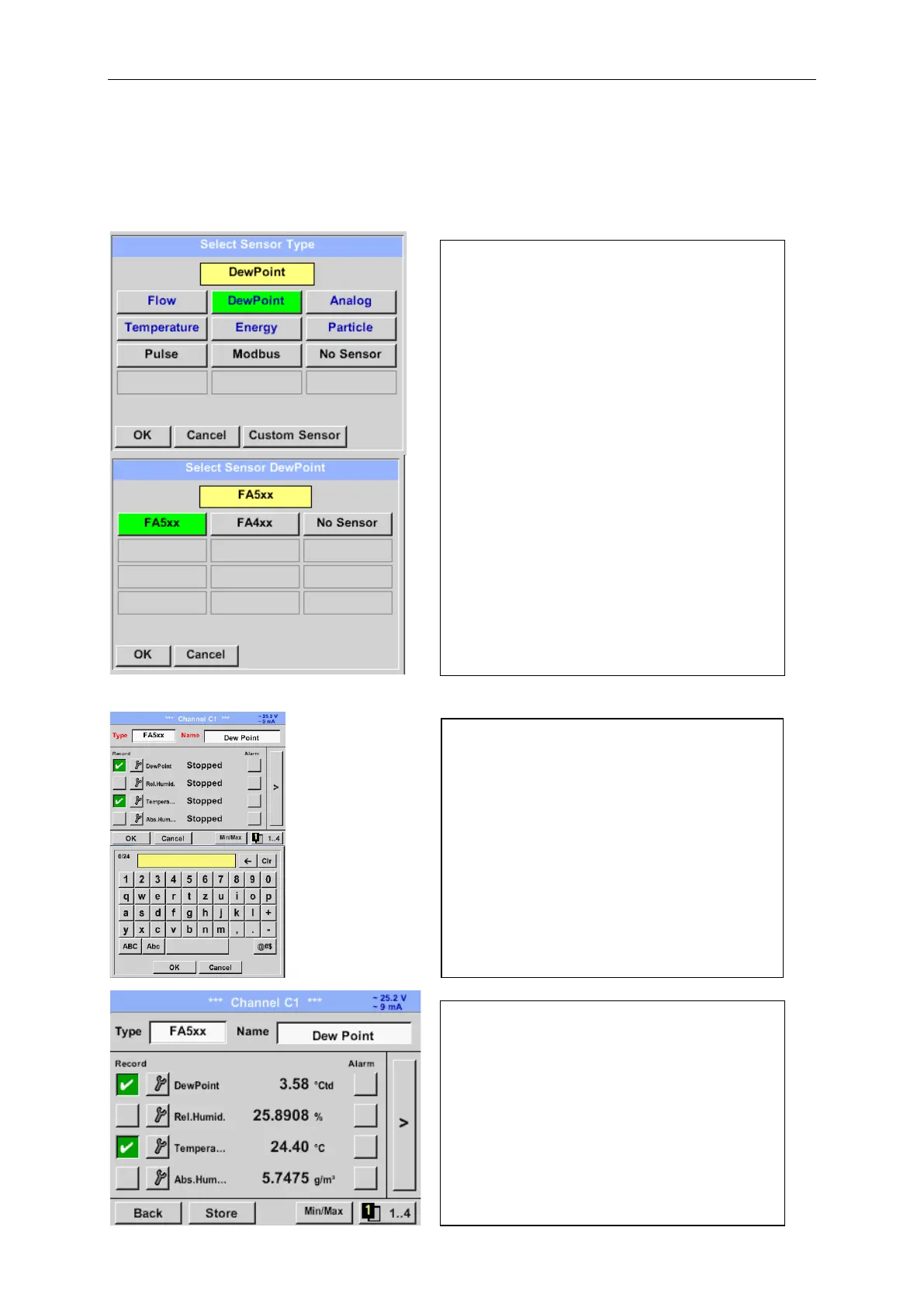

Select the "Dew point" variant in the
category menu here and confirm with
"OK".
Then activate the sensor variant "FA5xx"
and confirm with "OK”.
For input of a name, please enter the text
field „Name“.
It is possible to enter a name with max.
24 characters.
Confirmation by pressing the OK-button.
The connection with the FA 5xx sensor is
done after confirmation by pressing “OK”.
