CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL

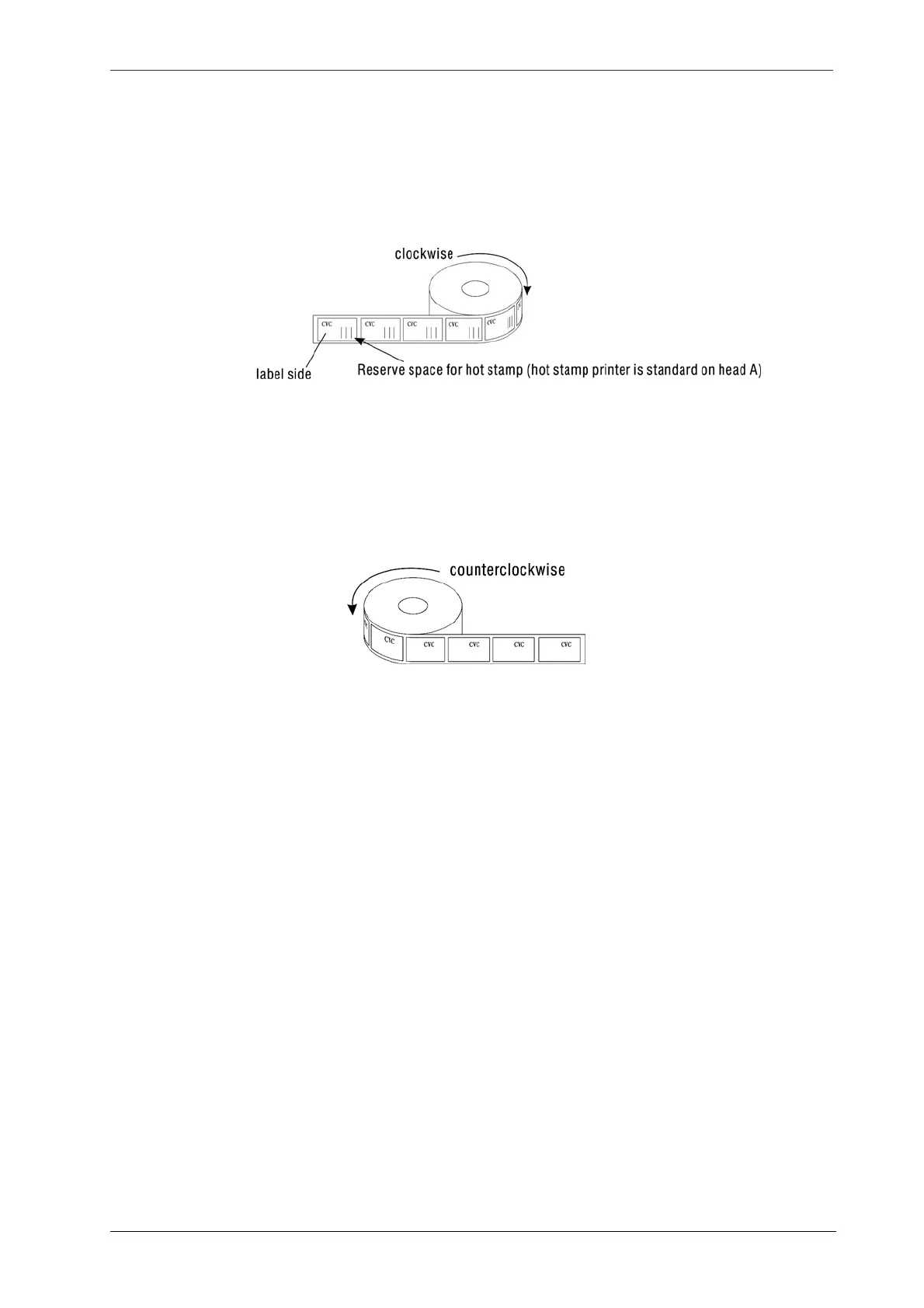

2.2.3 Label Rolled Outside (LRO) (Common Use)
a. Label Roll for Labeling Head A:
The labels are rolled outside in a clockwise direction. The space for hot stamp code should be
reserved if such feature is used, and the hot stamp printer should be adjusted to meets this position.
Fig 2.2.3-1
b. Label Roll for Labeling Head B:
The labels are rolled outside in a counterclockwise direction.
Fig 2.2.3-2
2 - 4
